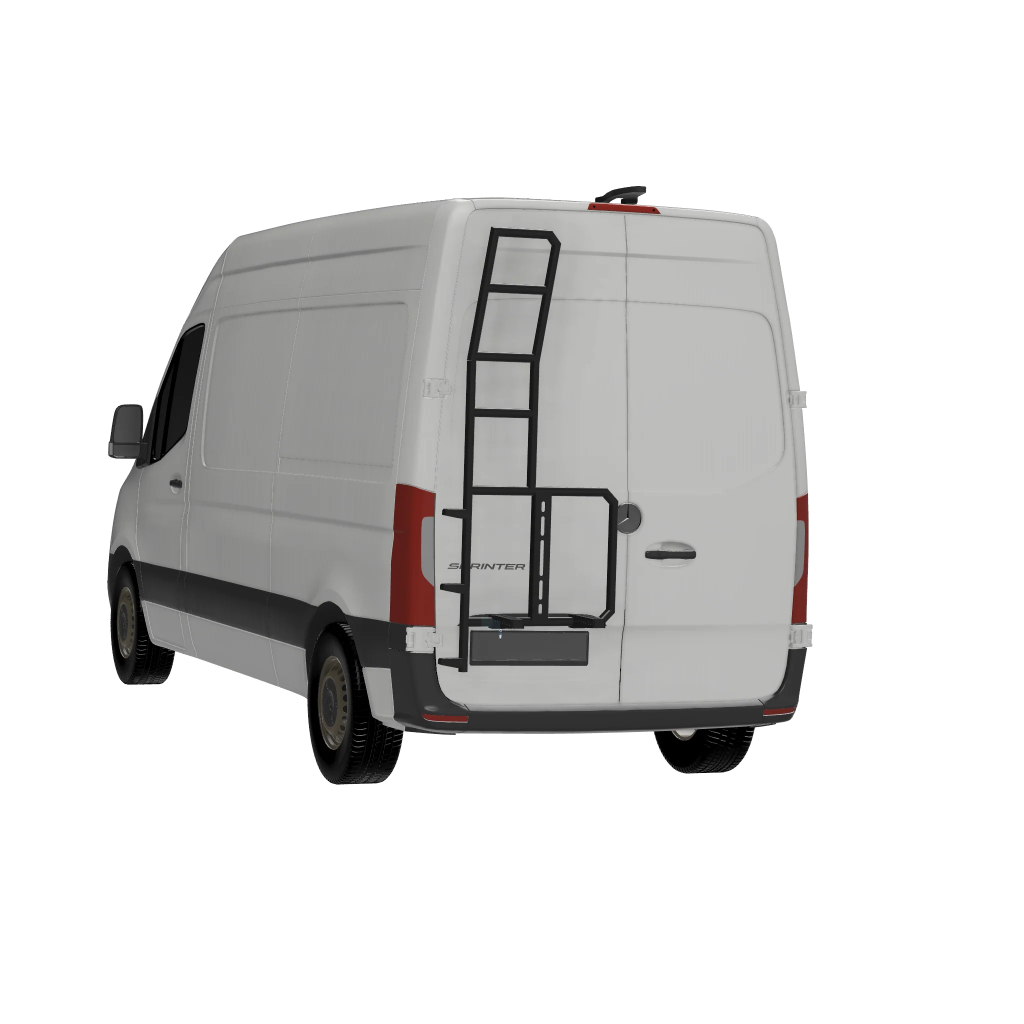

Spare Tire Holder with Ladder – MERCEDES SPRINTER

Spare Tire Carrier with Integrated Ladder for Rear Left Driver Side Door for Mercedes Sprinter 2019+ and Revels 2020+, Carriers install on 180 degree rear door hinges (not compatible with 270 degree hinges), Installation requires only 2 holes not visible behind the Mercedes logo. Carrier is adjustable for a wide variety of tire sizes and there are 2 mounting adapters for steel wheels or rims. The ladder has 4 full-size steps at the top and 3 small steps at the bottom on the tubular structure. Carriers follow the opening movement of the doors, making it easy to access the interior of the vehicle.

Specifications:

• 6061 Aluminum Bracket
• Fully TIG welded aluminum construction
• Load capacity of 200 lbs, including weight of the rack
• Weight of bracket with fixing and hardware: 18 lbs
• 308 Stainless Steel Hinge Bracket Fixing
• Stainless Steel Fastening Hardware
• Textured black powder coat baked paint
• Designed for all Mercedes Sprinter tire sizes, standard to off-road
• Tire mounting adapter for steel wheels and 6x130 rims
• Designed for VS30 vans (2019 and later) 2500, 3500, 4x4 & 4x2 with or without rear windows

• Padlock included
• 2 x 10 inch support arms with 1.5 inch diameter tube mount are included with each bracket.

Warnings:

• When fully charged, the door should be closed with intention, not slammed
• Overloading chests or accessories may damage doors and hinges, and this will void your warranty.
• May cause reversing sensors to beep when reversing (varies by van)
