Trim Kits for Super Slide II
Shared Key Features
- Designed for Kwikee® Super Slide II cargo tray systems
- Modular trim kit system for RV storage customization
- Requires plywood tray base (not included)
- Compatible with carpet, vinyl, or rubber finishing materials
- Heavy-duty powder-coated steel construction
- Includes jig kit for installation alignment
- Supports full-extension slide-out cargo access
- Universal application for RV storage compartments
Kwikee® Super Slide II Trim Kit – Complete Product Family
Product Overview

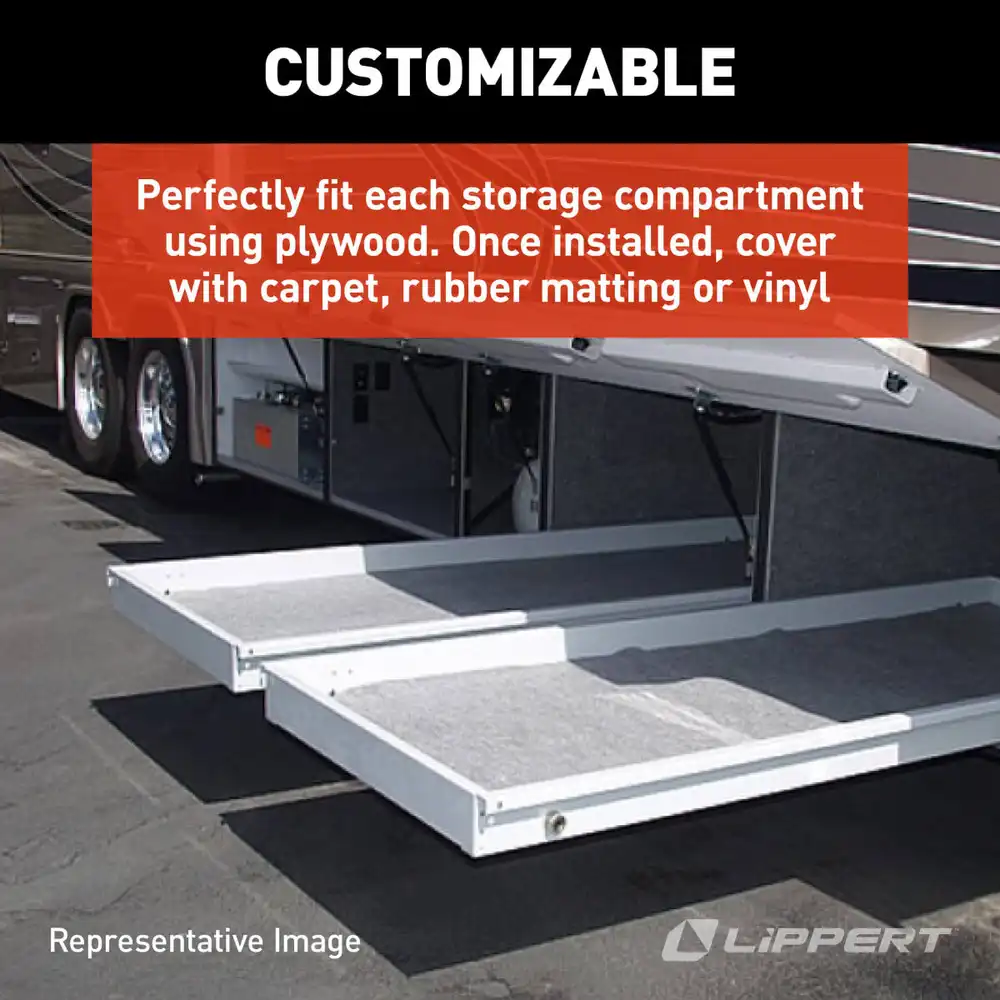

Kwikee® Super Slide II Trim Kits are modular framing systems designed for RV cargo tray installations. Each kit enables the construction of a custom sliding storage tray using plywood decking (not included). The system allows users to convert deep storage compartments into accessible slide-out cargo solutions.
All variants share identical hardware construction and installation requirements. Only the trim kit length and compatible compartment opening differ.
Size Variant Matrix
| Variant | Kit Length | Compartment Opening | SKU |
| 1/4 | 27" | 31" | 370678 |
| 2/4 | 30" | 34" (standard -4" rule applied) | 370680 |
| 3/4 | 37" | 41" | 370690 |
| 4/4 | 51" | 55" | 370759 |

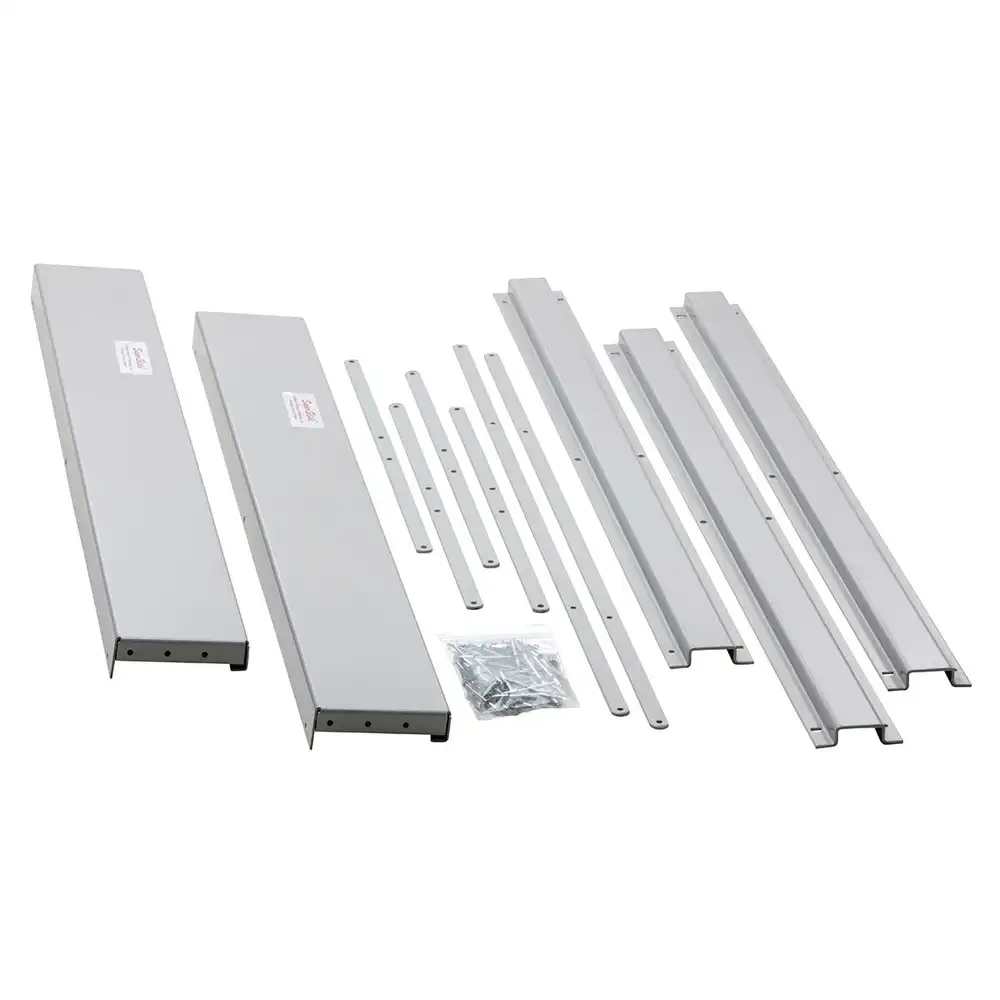

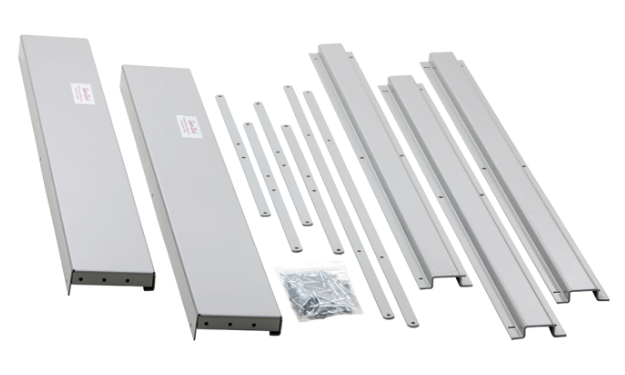

Standard Kit Contents (All Variants)
- End Pieces (2)
- Mid-Rails (3)
- Rivets (40)
- Jig Kit (1)
Installation Notes
- Plywood tray surface is required but not included
- Finishing materials (carpet, vinyl, rubber matting) are not included
- Compartment measurements must be verified before selecting kit size
- System follows a consistent sizing offset where compartment opening equals kit length plus 4 inches
System Function Summary

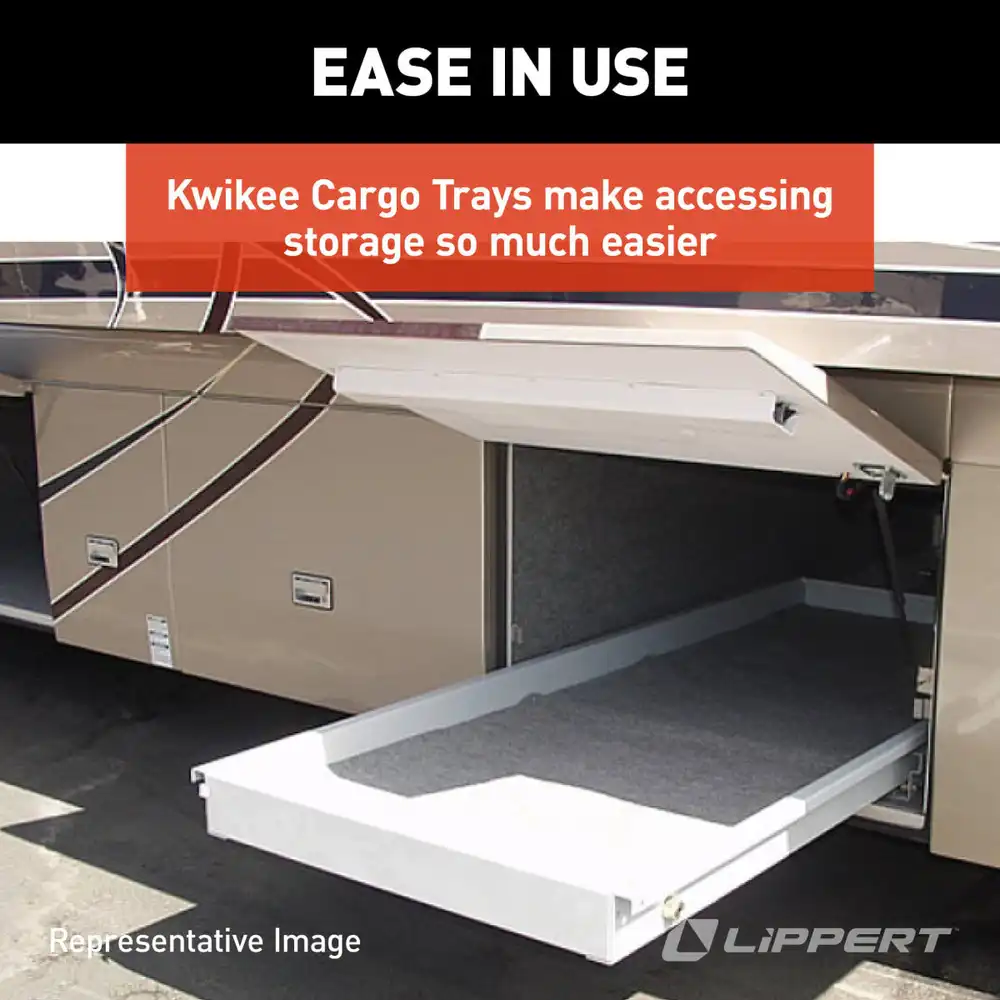

Kwikee® Super Slide II systems improve RV storage accessibility by allowing heavy or deep-mounted cargo to slide outward for easy access. These trim kits provide the structural framework required to build a stable, smooth-gliding storage tray system tailored to individual compartment dimensions.
| Dimension | 27" or 30" or 37'' or 51" |
