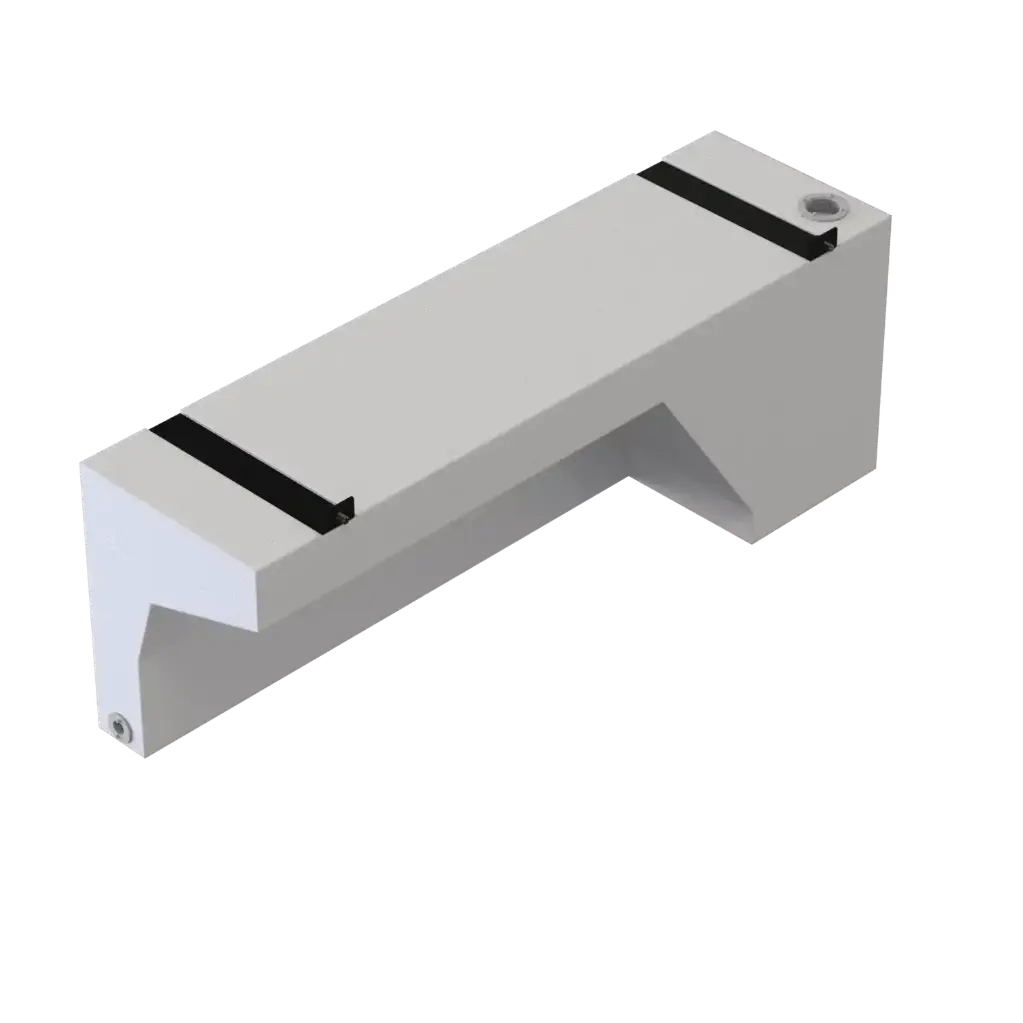

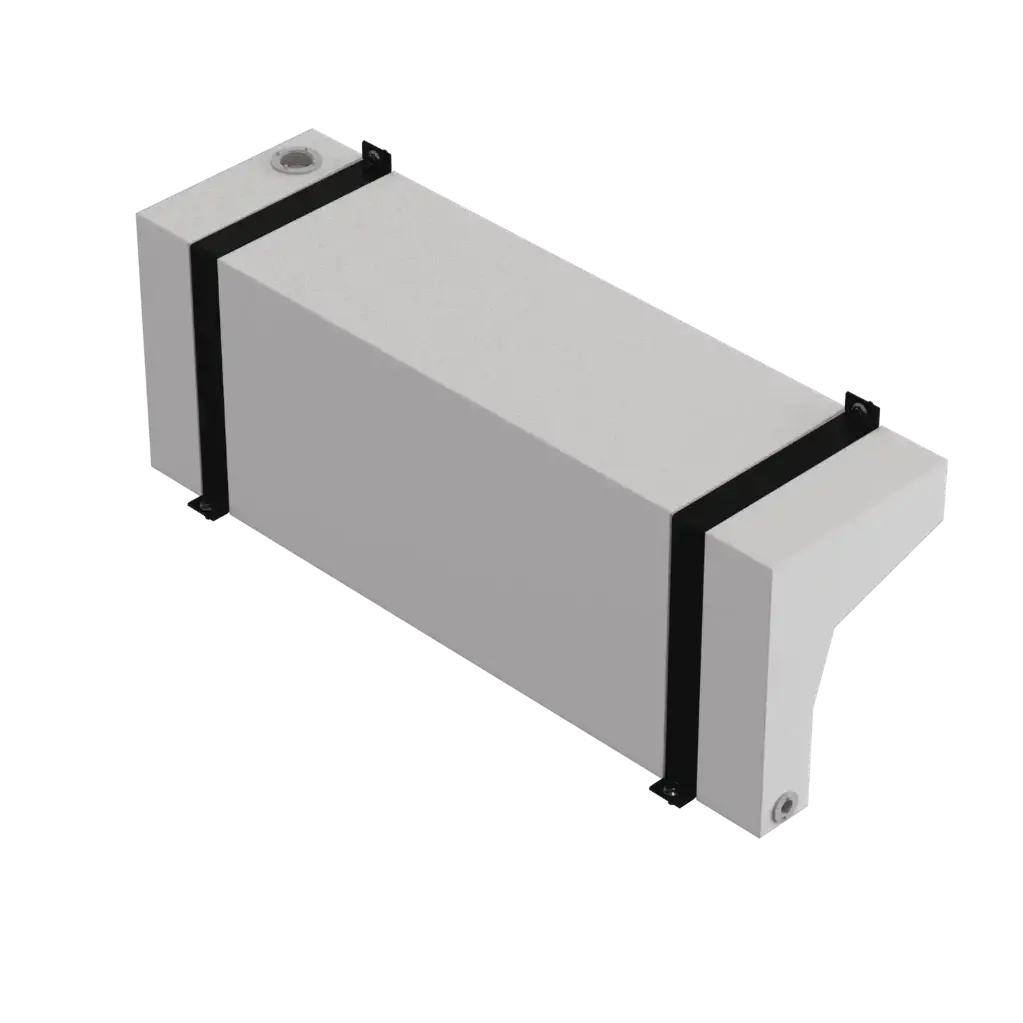

22 GALLON WHEEL WELL WATER TANK (DRIVERS SIDE)

VIEW INSTRUCTION  WATCH INSTALL VIDEO

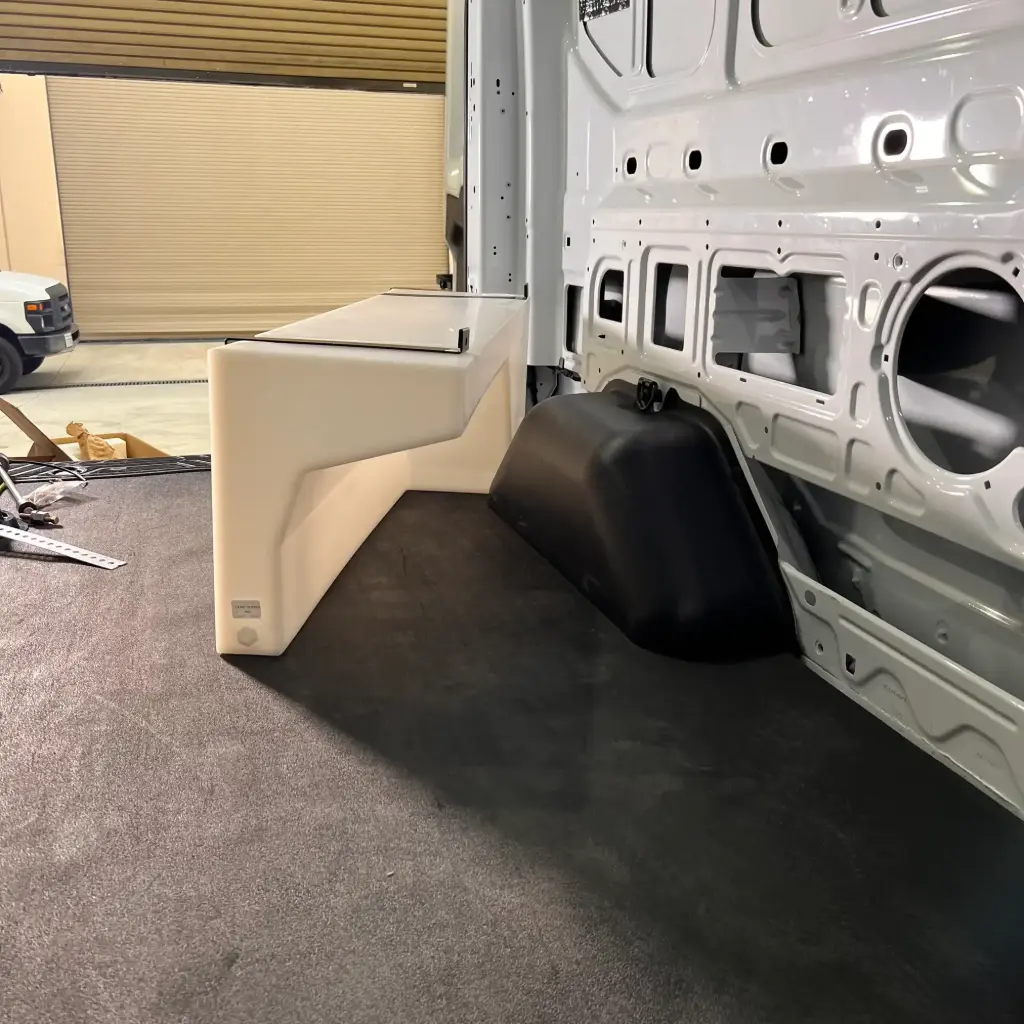

The S&B 22-Gallon Wheel Well Water Tank is designed to maximize fresh water storage while preserving valuable interior space in Sprinter and Transit van conversions. Its over-the-wheel-well design provides a compact, high-capacity solution for reliable water storage without compromising your interior layout.

Built to meet RV industry standards, this tank is TEI Tested & Listed / RVIA Approved, includes mounting straps, and is compatible with optional KUS water level monitoring systems.

Features

• 22-gallon water capacity (approx.)
• Over-the-wheel-well installation
• Mounting straps included
• Compatible with optional KUS water level sender
• TEI Tested & Listed / RVIA Approved

Specifications

• Tank type: Over the wheel well

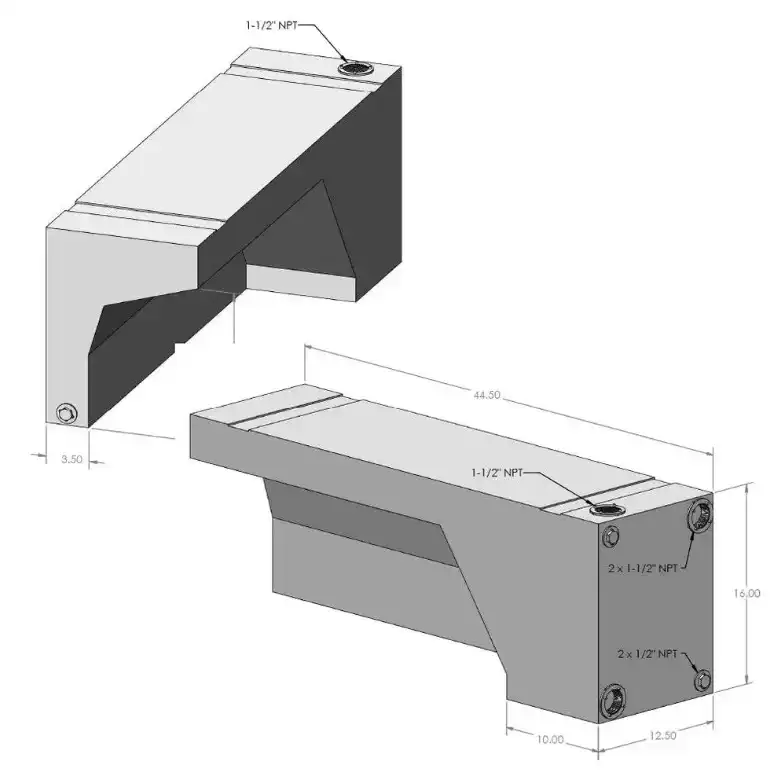

• Dimensions: 44.5" L × 12.5" W × 16" H
• Dry weight: 24 lbs
• Sensor height: 15"
• Sensor compatibility: KUS S5U-15 (not included)

Compatibility

• Fits single rear wheel Mercedes Sprinter vans
• Fits Ford Transit 150 / 250 / 350
• Compatible with diesel and gasoline engine configurations depending on model year
• Not compatible with dually vans
