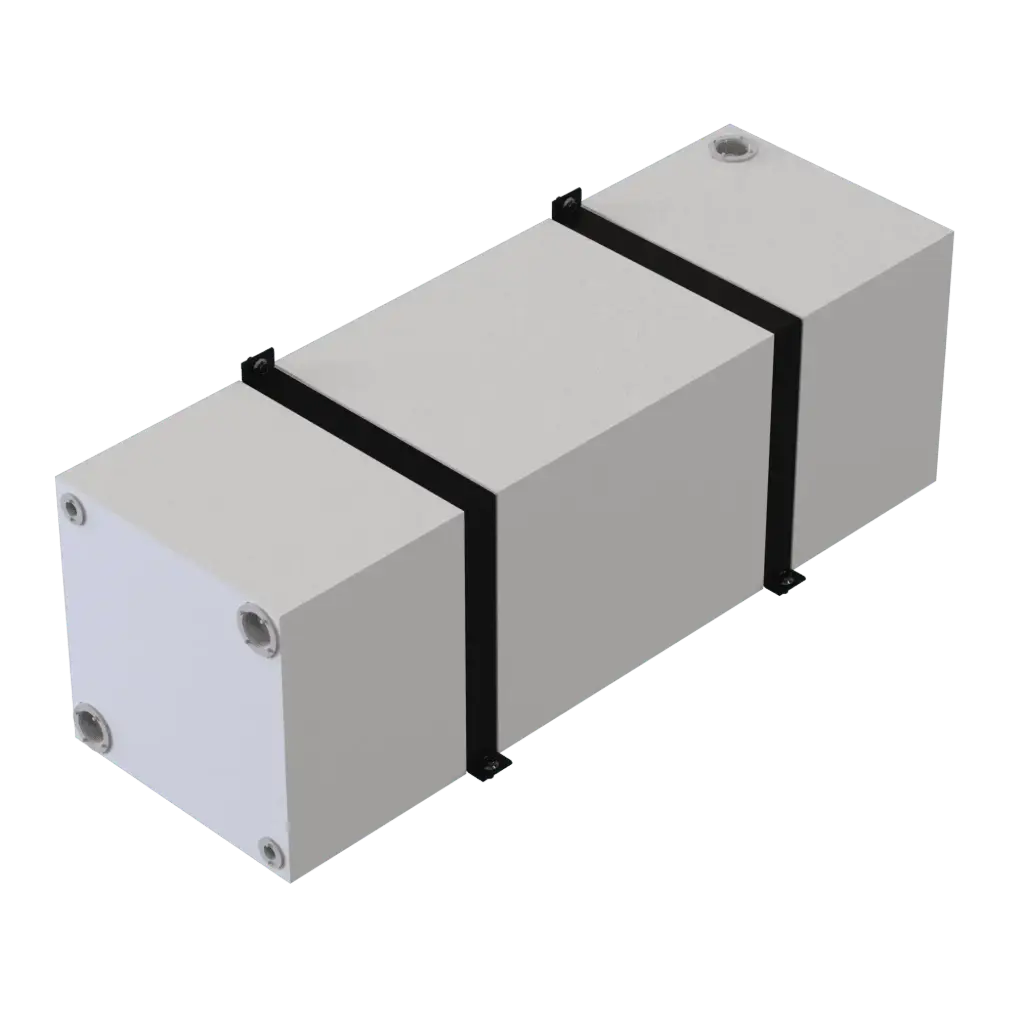

35 Gallon Wheel Well Water Tank (Both Sides)

SKU:

202​2323582

https://canadarv.com/web/image/product.template/4762/image_1920?unique=d3201a4

575.00 $ 575.0 CAD 575.00 $

Contact us for quote

This combination does not exist.

Contact Us

Terms and Conditions
Return within 30 days for most orders
Free delivery on most orders

VIEW INSTRUCTIONS  WATCH INSTALL VIDEO

The S&B 35-Gallon Wheel Well Water Tank is designed to maximize fresh water storage while preserving interior space in Sprinter and Transit van conversions. Its over-the-wheel-well configuration provides a high-capacity solution optimized for efficient space utilization.

Manufactured from BPA-free materials and certified TEI Tested & Listed / RVIA Approved, this tank includes mounting straps and supports optional KUS water level monitoring systems.

Features

  • 35-gallon water capacity (approx.)
  • Over-the-wheel-well design for optimized space usage
  • BPA-free construction
  • Mounting straps included
  • Compatible with optional KUS water level sender
  • TEI Tested & Listed / RVIA Approved

Specifications

  • Tank type: Over the wheel well

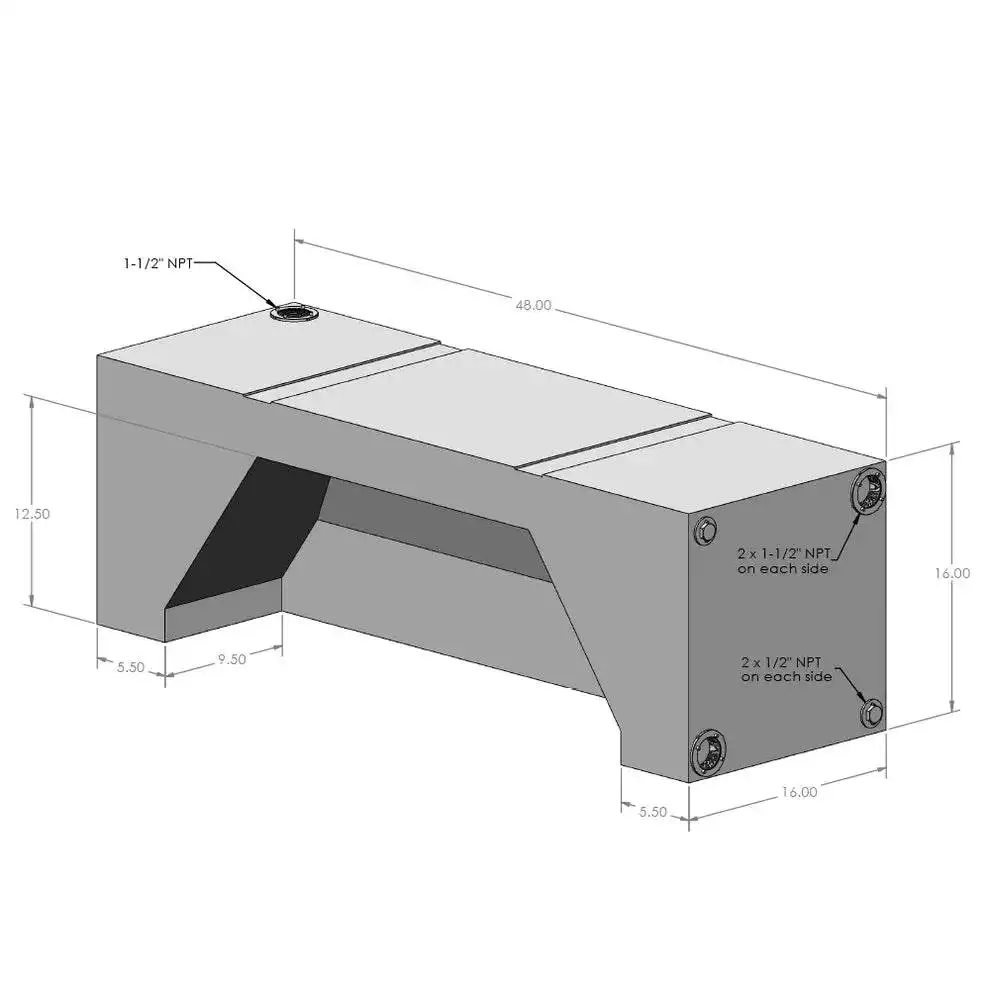

  • Dimensions (approx.): 48" L × 16" W × 16" H
  • Dimensional tolerance: ±0.5"
  • Dry weight: 31.2 lbs
  • Sensor height: 15"
  • Sensor compatibility: KUS S5U-15 (not included)

Compatibility

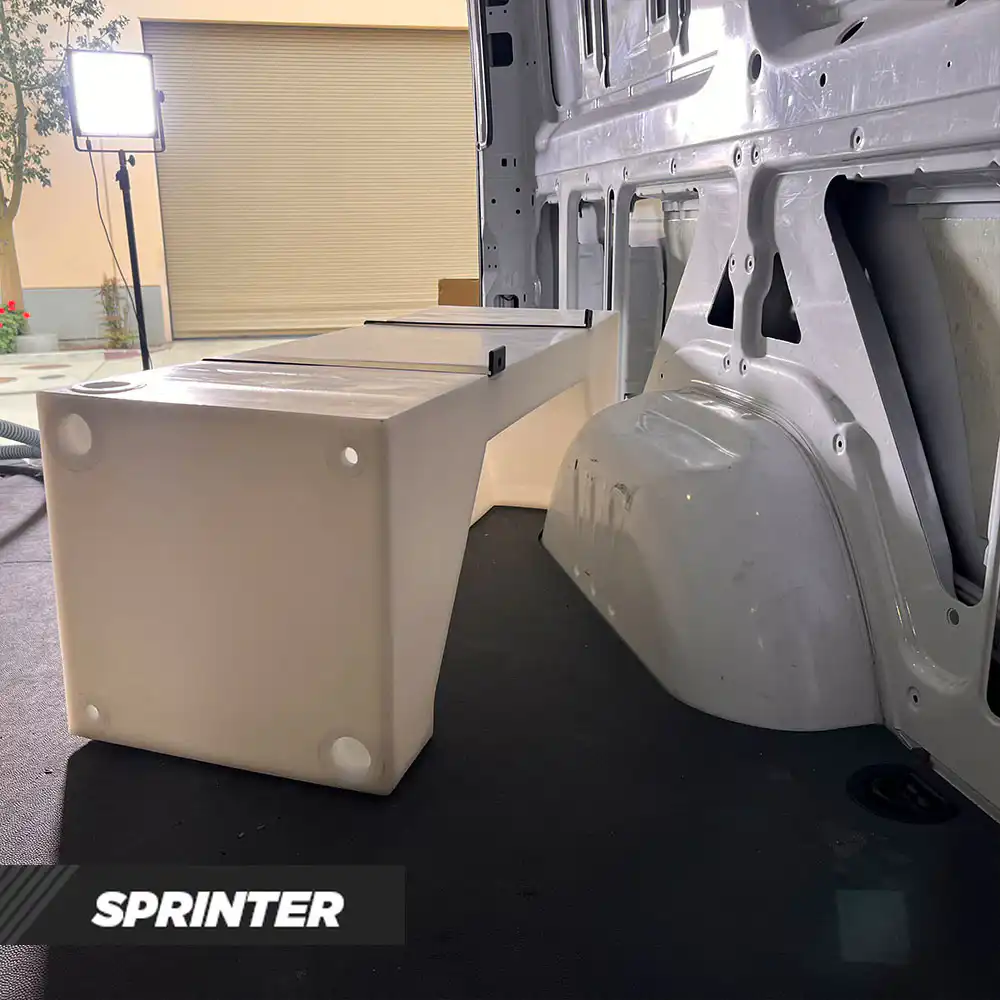

  • Fits Mercedes Sprinter (2007–2026)

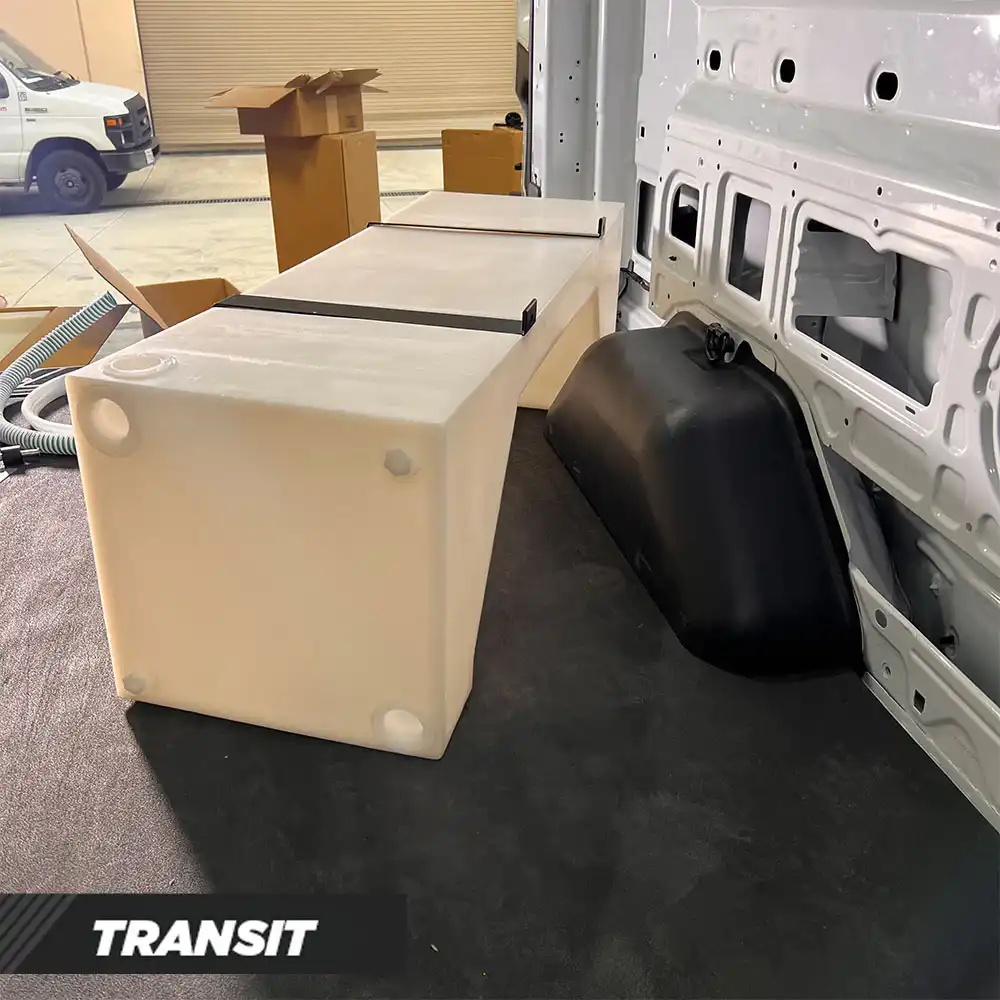

  • Fits Ford Transit 150 / 250 / 350 (2015–2026)
  • Compatible with diesel and gasoline engine configurations depending on model year
  • Not compatible with dually vans

Width: 62.79" (1595mm)

Crossbar Length: 62.40" (1585mm)

130 HR Transit: 104.72" (266.0cm)

148 MR Transit: 132.3" (336.0cm)

148 HR Transit: 81.9" (308.0cm)

148 HR EXT Transit: 150.4" (382.0cm)

Lengths by Vehicle:

Internal Width: 62.22" (1555mm)

130 Transit: 49 lbs

148 Transit: 58 lbs

148 EXT Transit: 74 lbs
