2007-2025 Sprinter S&B 22 Gallon Undercarriage Fresh Water Tank (Drivers Side)

Price:

575.00 $
  2. Shop
  3. 2007-2025 Sprinter S&B 22 Gallon Undercarriage Fresh Water Tank (Drivers Side)
20 GALLON WHEEL WELL WATER TANK (BOTH SIDES)
20 GALLON WHEEL WELL WATER TANK (BOTH SIDES)
575.00 $
575.00 $
34 GALLON WHEEL WELL WATER TANK (DRIVERS SIDE) FOR 2013-2025 DODGE / RAM PROMASTER 1500, 2500, 3500 136", 159" AND 159" EXT (10-3019)
34 GALLON WHEEL WELL WATER TANK (DRIVERS SIDE) FOR 2013-2025 DODGE / RAM PROMASTER 1500, 2500, 3500 136", 159" AND 159" EXT (10-3019)
675.00 $
675.00 $
S&B Filters

2007-2025 Sprinter S&B 22 Gallon Undercarriage Fresh Water Tank (Drivers Side)

SKU:

202​2323582

https://canadarv.com/web/image/product.template/4759/image_1920?unique=9a61ec2

575.00 $ 575.0 CAD 575.00 $

Contact us for quote

This combination does not exist.

Contact Us

Terms and Conditions
Return within 30 days for most orders
Free delivery on most orders

22 GALLON DRIVER SIDE UNDERCARRIAGE  KUS Level Sensor Installation

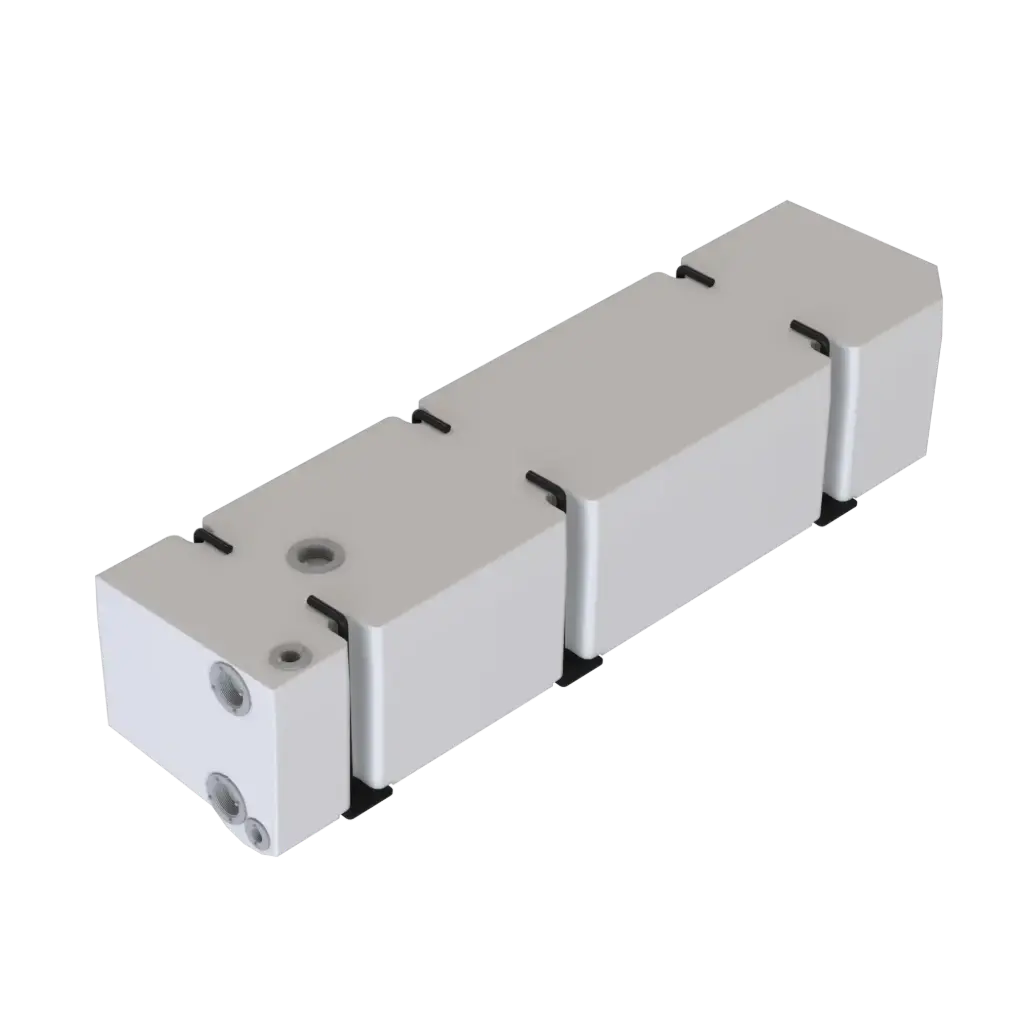

The S&B 22-Gallon Undercarriage Fresh Water Tank is designed for driver-side installation on Mercedes Sprinter vans, delivering high-capacity water storage without sacrificing interior space. Manufactured from food-grade, BPA-free polyethylene, each tank is pressure tested in-house and built to meet demanding van conversion standards.

Designed for reliable long-term performance, this tank includes a complete mounting kit and supports either external or compatible internal water level monitoring systems.

Features

  • 22-gallon fresh water capacity
  • Driver-side undercarriage installation
  • Manufactured from food-grade, BPA-free polyethylene
  • Includes complete mounting kit
  • Pressure tested for quality and durability
  • Supports external or KUS internal level sensors (S5U-8 sold separately)
  • TEI listed / RVIA approved

Specifications

  • Part number: 10-3012

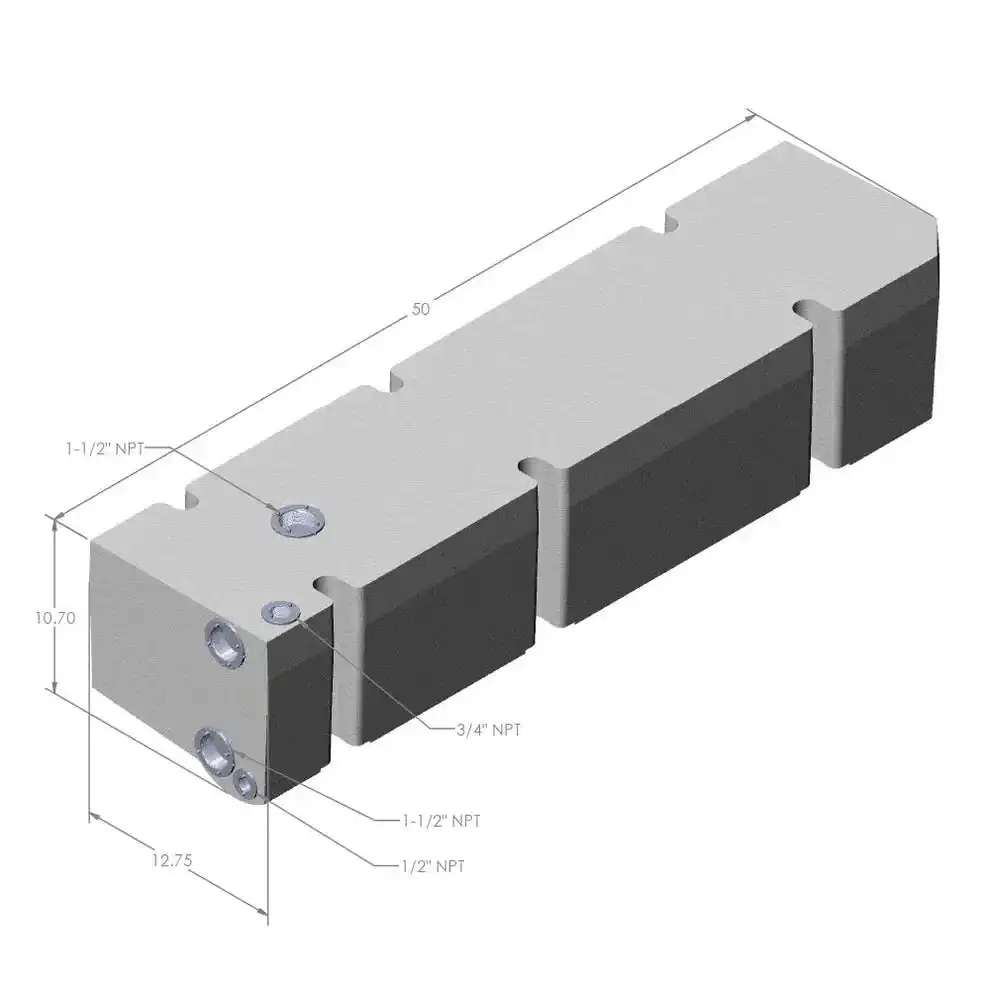

  • Dimensions: 50.18" L × 12.75" W × 11" H
  • Sensor height: 8"
  • Tank type: Fresh water undercarriage tank
  • Sensor compatibility: KUS S5U-8 (not included)

Compatibility

  • Designed for 2007–2025 Mercedes Sprinter 144" / 170"
  • Compatible with 2.0L and 3.0L diesel engines
  • Confirmed compatible with Owl side steps
  • Not compatible with AMP side steps
  • Approximate clearance to body/step mounting area: 0.4"

Width: 62.79" (1595mm)

Crossbar Length: 62.40" (1585mm)

130 HR Transit: 104.72" (266.0cm)

148 MR Transit: 132.3" (336.0cm)

148 HR Transit: 81.9" (308.0cm)

148 HR EXT Transit: 150.4" (382.0cm)

Lengths by Vehicle:

Internal Width: 62.22" (1555mm)

130 Transit: 49 lbs

148 Transit: 58 lbs

148 EXT Transit: 74 lbs
