35 GALLON SPARE TIRE REPLACEMENT FRESH/GREY WATER TANK 2007-2025 MERCEDES SPRINTER 144" & 170" (10-3033)

https://canadarv.com/web/image/product.template/5605/image_1920?unique=e5a97c9

650.00 $ 650.0 CAD 650.00 $

Contact us for quote

This combination does not exist.

Contact Us

Terms and Conditions
Return within 30 days for most orders
Free delivery on most orders

INSTRUCTIONS     INSTALL VIDEO

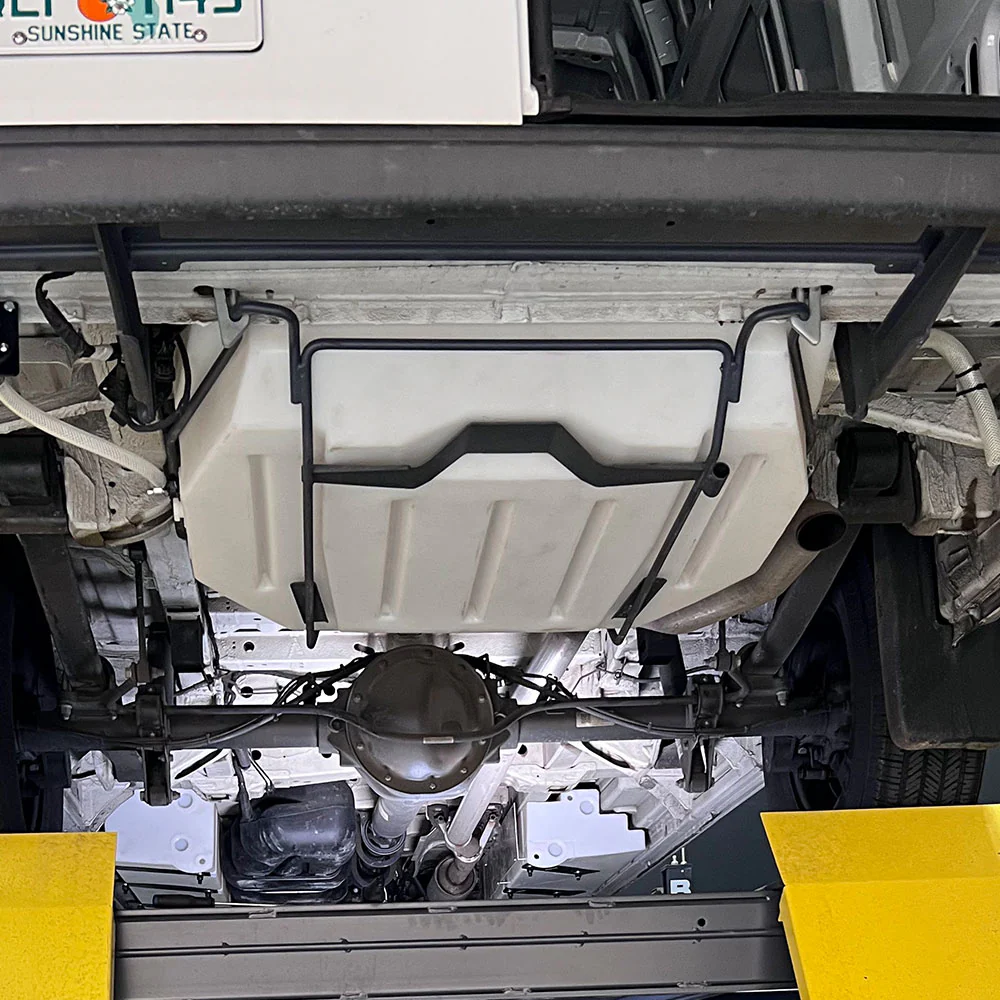

S&B 35 GALLON SPARE TIRE WATER TANK

The S&B 35-gallon spare tire water tank is made from food-grade safe, BPA-free polyethylene plastic and is TEI listed. Our tanks are perfect for your home build or build needing RVIA certification. We make our tanks in-house and pressure test every tank.

TEI Tested & Listed / RVIA Approved.

Tank Dimensions:

29.00" Length x 32.00" Width x 11.75" Height


PRODUCT DETAILS

KUS LEVEL SENSOR HEIGHT10"
KUS LEVEL SENSOR PART NUMBERS5U-10 (NOT INCLUDED)
STRAPS INCLUDEDNO (USES SPARE TIRE CAGE)
S&B CAPACITY (APPROXIMATE)35
TANK TYPESPARE TIRE REPLACEMENT
TEI LISTEDYES
WEIGHT DRY 20 LBS


VEHICLE FITMENT

YEARMAKEMODELENGINE
2007-2025MERCEDESSPRINTER2.0L, DIESEL
2007-2025MERCEDESSPRINTER3.0L, DIESEL
2007-2025MERCEDESSPRINTER2.0L, DIESEL
2007-2025MERCEDESSPRINTER3.0L, DIESEL

Width: 62.79" (1595mm)

Crossbar Length: 62.40" (1585mm)

130 HR Transit: 104.72" (266.0cm)

148 MR Transit: 132.3" (336.0cm)

148 HR Transit: 81.9" (308.0cm)

148 HR EXT Transit: 150.4" (382.0cm)

Lengths by Vehicle:

Internal Width: 62.22" (1555mm)

130 Transit: 49 lbs

148 Transit: 58 lbs

148 EXT Transit: 74 lbs
