35 GALLON SPARE TIRE REPLACEMENT FRESH/GREY WATER TANK 2007-2025 MERCEDES SPRINTER 144" & 170"

SKU:

202​2323582

https://canadarv.com/web/image/product.template/5605/image_1920?unique=eea1e70

675.00 $ 675.0 CAD 675.00 $

Contact us for quote

This combination does not exist.

Contact Us

Terms and Conditions
Return within 30 days for most orders
Free delivery on most orders

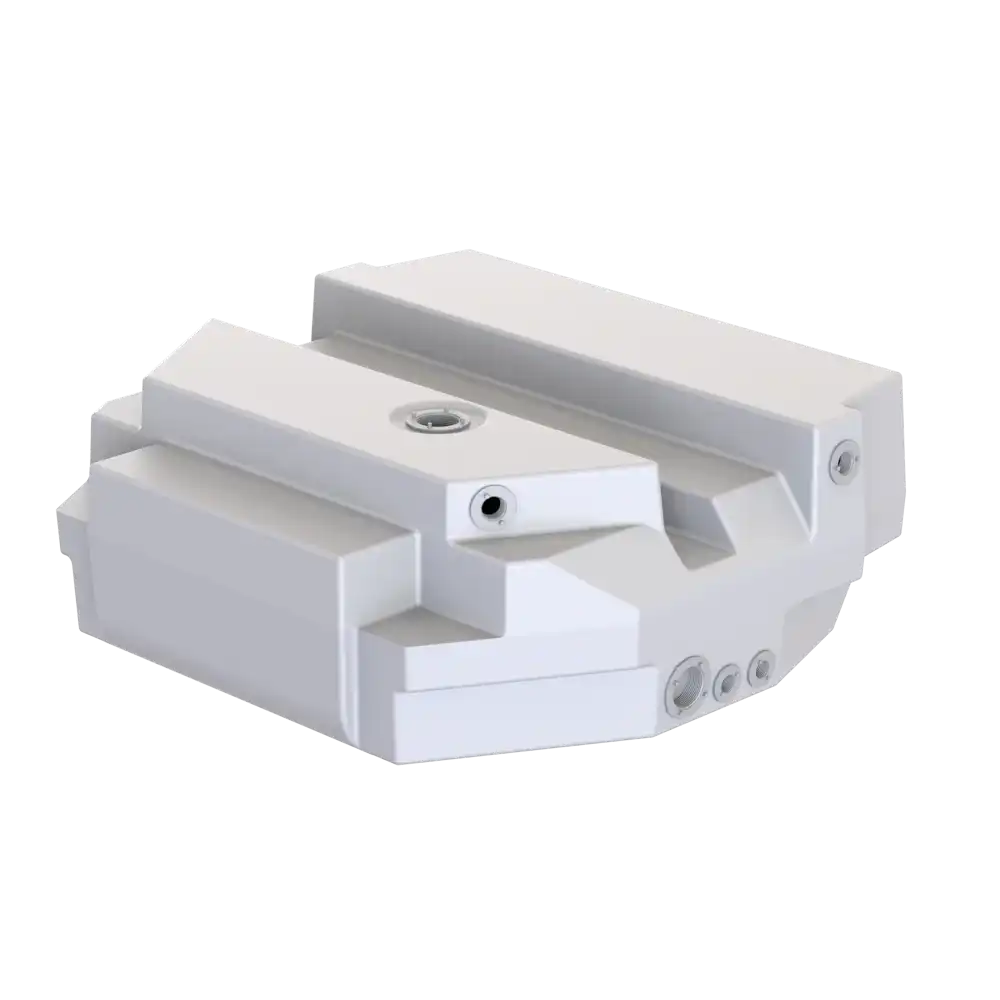

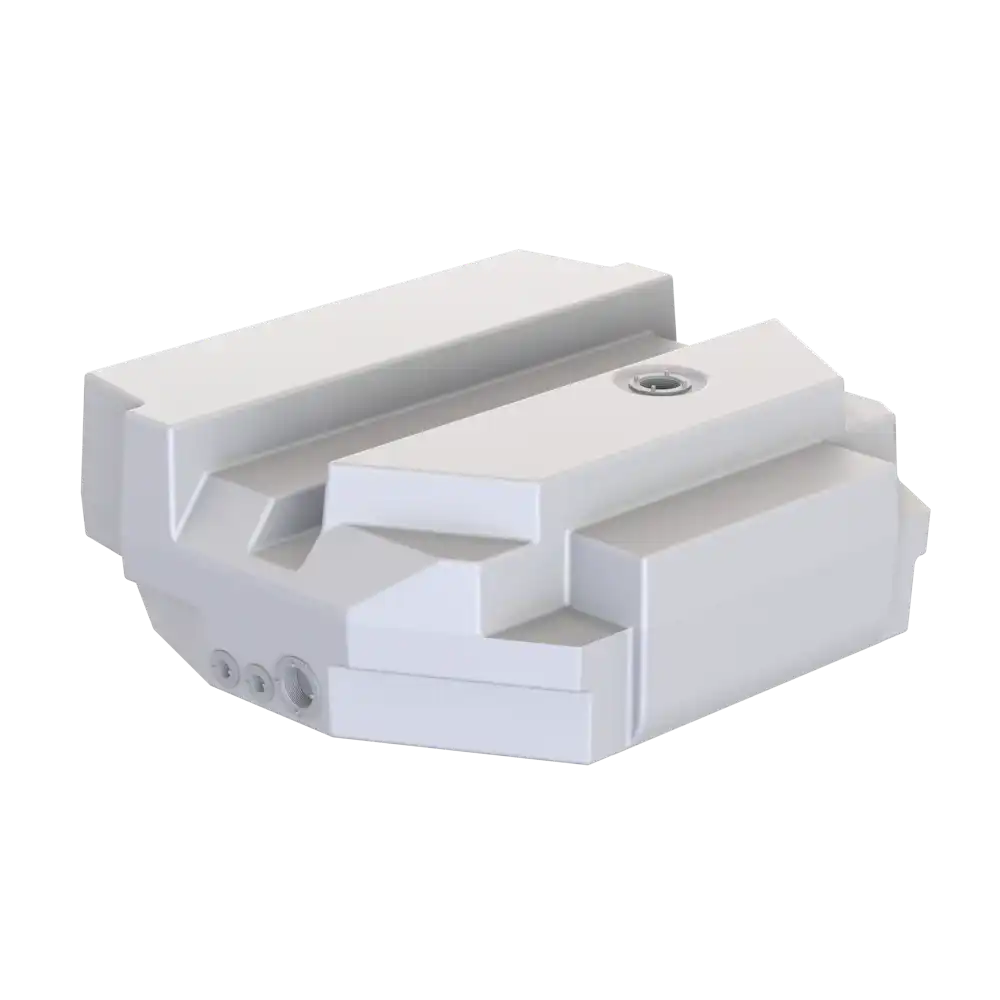

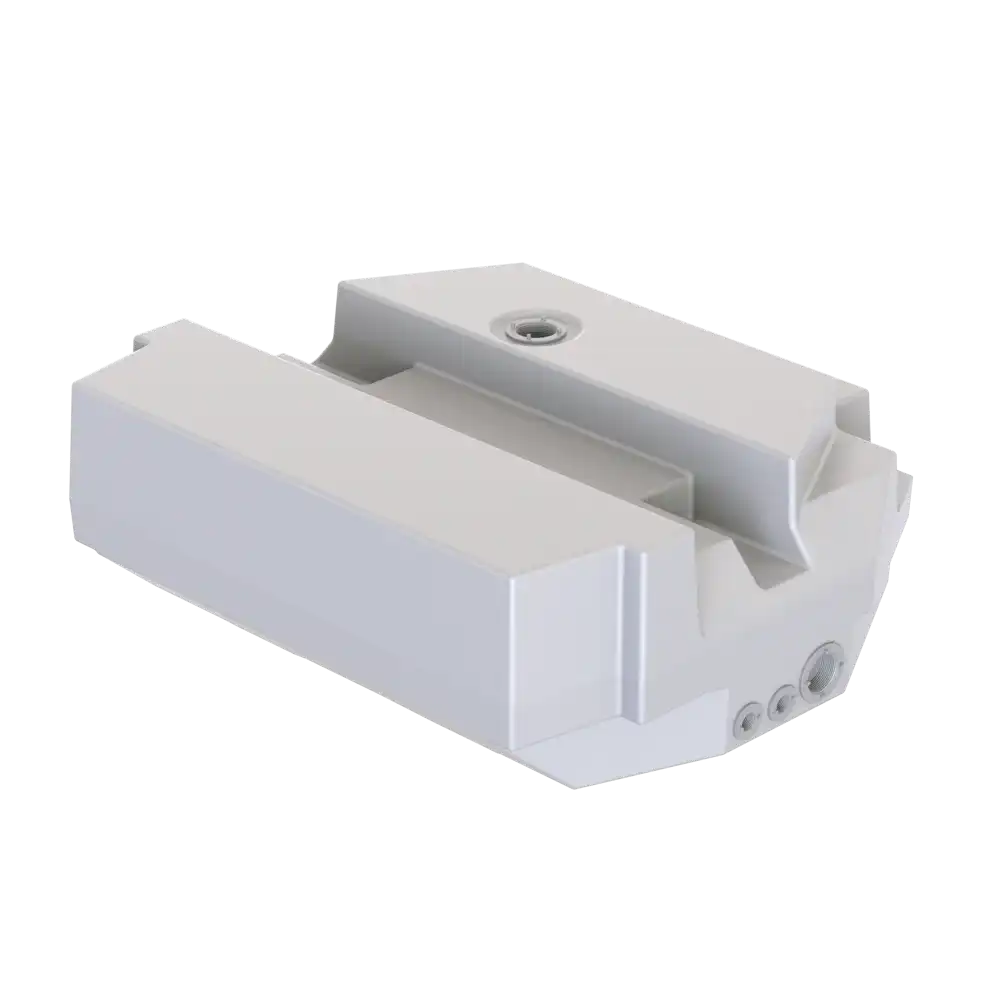

The S&B 35-Gallon Spare Tire Replacement Fresh/Grey Water Tank is designed to replace the factory spare tire location on Mercedes Sprinter vans, providing a high-capacity solution for either fresh or grey water storage without sacrificing valuable interior space. Manufactured from food-grade, BPA-free polyethylene, each tank is pressure tested and certified TEI Tested & Listed / RVIA Approved for dependable performance.

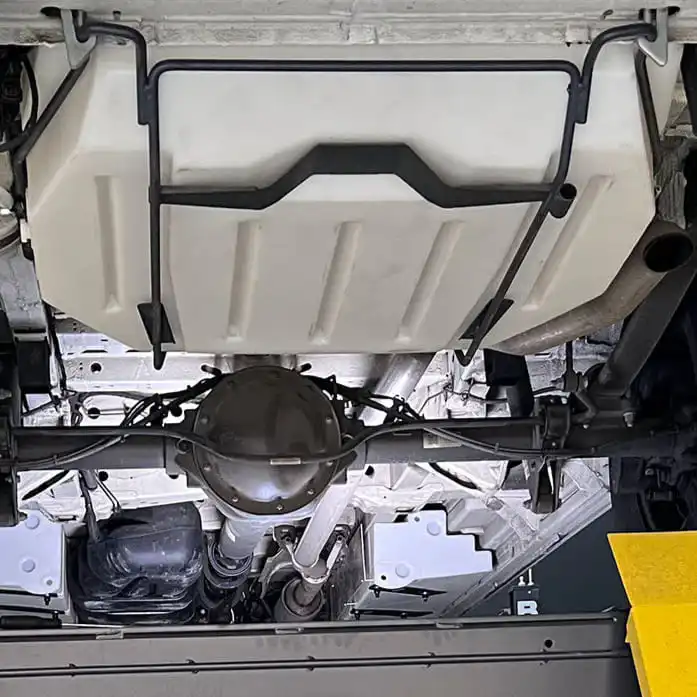

Designed to fit directly into the OEM spare tire basket, this tank is compatible with optional KUS water level monitoring systems, making it an ideal solution for professional and DIY van conversions.

Features

  • 35-gallon capacity (approx.) for fresh or grey water
  • Spare tire replacement design for optimized space utilization
  • Manufactured from food-grade, BPA-free polyethylene
  • Compatible with optional KUS water level sender
  • TEI Tested & Listed / RVIA Approved

Specifications

  • Tank type: Spare tire replacement

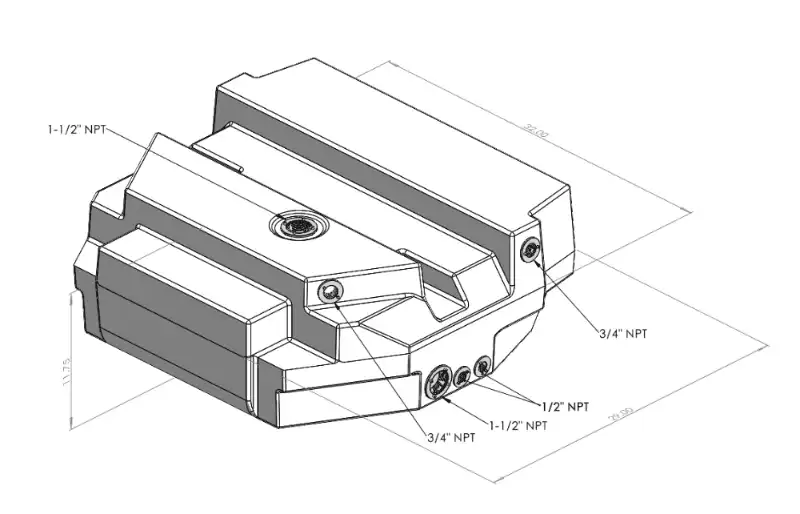

  • Dimensions: 29.00" L × 32.00" W × 11.75" H
  • Dimensional tolerance: ±0.5"
  • Dry weight: 20 lbs
  • Sensor height: 10"
  • Sensor compatibility: KUS S5U-10 (not included)
  • Mounting: Fits the OEM spare tire basket (basket not included)

Compatibility

  • Compatible with Mercedes Sprinter 144" and 170" wheelbase (2007–2026)
  • Compatible with 2.0L and 3.0L diesel engines
