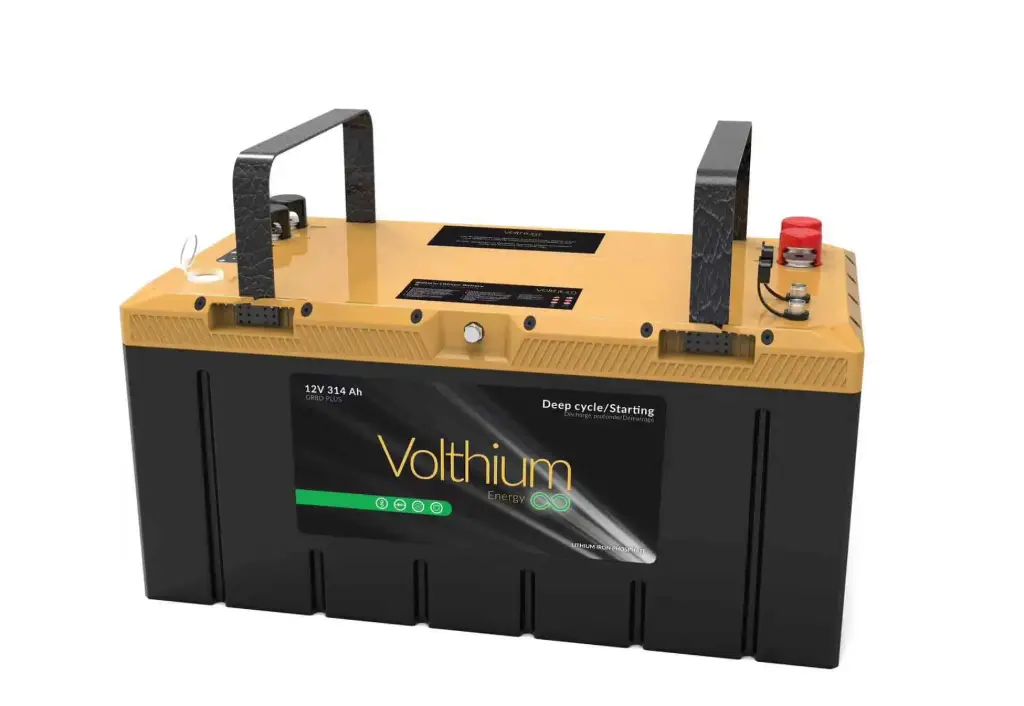

12V 314Ah PLUS Battery

The Volthium 12V 314Ah PLUS LiFePO4 Battery delivers 4,019Wh of energy in a compact Group 8D enclosure. Designed for RVs, marine applications, off-grid systems, and demanding electrical installations, it combines a high-performance Battery Management System (BMS), integrated Bluetooth monitoring, and a dual self-heating system. Its high capacity and advanced protection features provide reliable power storage while reducing the need for multiple batteries.

FEATURES

• High-Performance BMS: Provides 150A continuous charge and discharge current, with discharge peaks of 160A for 10 minutes and 500A for 3 seconds.

• Bluetooth Connectivity: Allows wireless battery monitoring and configuration.

• Dual Self-Heating System: Combines automatic heating with an integrated smart thermostat for reliable charging in cold conditions.

• Integrated Controls: Includes an ON/OFF switch and LED state-of-charge indicator.

• Communication Ports: Two M12 10-pin ports supporting CAN Bus and RS485 connectivity.

• Advanced Protection: Includes overcharge, over-discharge, and overcurrent protection, as well as active cell balancing.

• Durable Construction: Group 8D enclosure with IP67 protection.

• Certifications: CSA UL1973, IEC62619, RoHS, ABYC E-13, UN 3480, Class 9.

SPECIFICATIONS & WARRANTY

• Nominal Voltage: 12.8V

• Capacity: 314Ah

• Energy: 4,019.2Wh (4.02kWh)

• Maximum Charge Current: 150A

• Maximum Discharge Current: 150A continuous

• Peak Discharge: 500A (3 seconds)

• Enclosure: Group 8D

• Protection Rating: IP67

• Warranty: 10-year limited warranty.

• Expected Lifespan: Over 15 years.
