VELIT
12V/24V/48V VELIT 2000R Rooftop Air Conditioner
TUTORIAL FOR SWITCHING THE CONTROL PANEL HERE

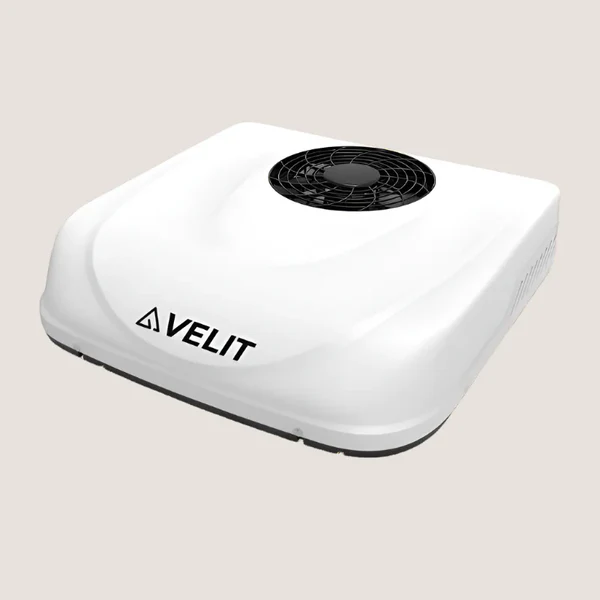

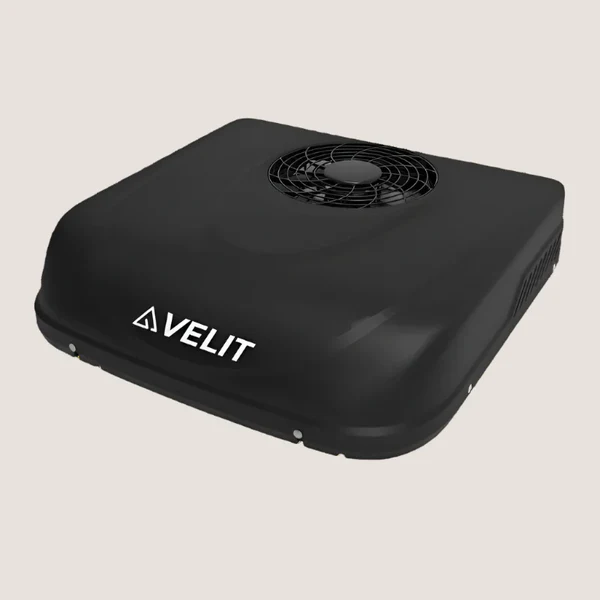

Velit 2000R Rooftop DC Air Conditioner – 12V / 24V / 48V
Upgrade your van, RV, or off-grid setup with the Velit 2000R, a compact, ultra-efficient DC-powered rooftop air conditioner designed for high performance in extreme conditions. With a low-profile 7.1" design and standard 14" x 14" fit, it’s the ideal cooling solution for campervans, trailers, and overlanders.
🔧 Specifications:
- Model: 2000R
- Input Voltage: DC 12V / 24V / 48V
-
Operating Current:
• 12V: 20–60A
• 24V: 10–33A
• 48V: 5–18A - Cooling Capacity: 8000 / 9000 / 10000 BTU
- Air Flow Rate: 250 CFM
-
Rated Power:
• 12V: 650W
• 24V: 750W
• 48V: 850W -
Power Consumption:
• Eco Mode: 250–300W
• Turbo Mode: 400–650W -
Noise Level:
• Eco Mode: 45 dB
• Boost Mode: 58 dB - Refrigerant: R134a (750g)
- Roof Unit Dimensions: 31.5” W x 31.5” L x 7.1” H
- Interior Unit Dimensions: 13.8” W x 11” L x 4.3” H
- Weight: 66 lbs
📦 What’s Included:
- Velit 2000R AC Unit
- Interior Trim Panel
- Mounting Brackets & Hardware
- Sealing Gasket
- Remote Control
-
15ft Wiring Harness with In-line Fuse
• 6 AWG for 12V
• 8 AWG for 24V - User Manual
- One-Year Limited Warranty
✅ Key Features:
- DC-Powered Efficiency: No inverter required. Ideal for off-grid use with minimal battery draw.
- Slim Profile: Just 7.1" tall for low clearance installs; fits standard 14" x 14" roof openings.
- Powerful Performance: Operates in temps up to 126°F with a twin-cylinder rotor compressor.
- Smart Control Ready: Optional Bluetooth Display Panel allows remote operation via app (check compatibility with 6-pin connector).
🔧 Installation Notes:
- Sealant required for van and uneven surface installations.
- Sealant not required for flat RV roof installs.
Perfect for off-grid living, overlanding, or vanlife, the Velit 2000R delivers reliable cooling power without compromising your battery bank. Stay cool, drive farther.
Color | Black or White |
Voltage | 12V or 24V or 48V |
Bluetooth Display Panel | No or Yes |
