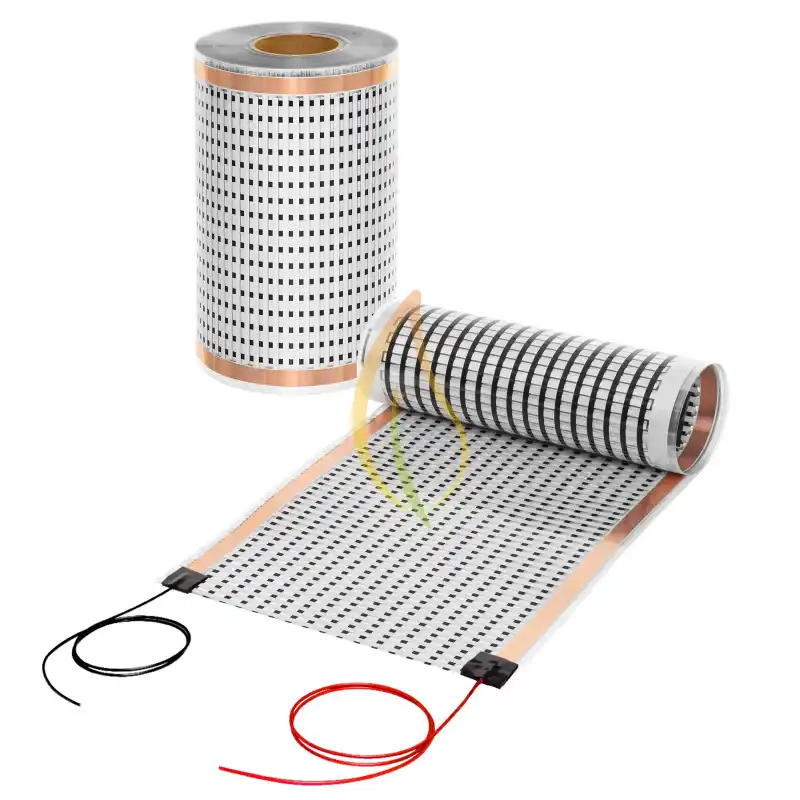

12V Carbon Heating Film – Ultra-Thin Infrared Floor Heating System (40cm / 50cm options)

This 12V carbon heating film is an ultra-thin, flexible infrared heating solution designed for van builds, RVs, and custom low-voltage heating systems. With a thickness of only 0.366 mm, it integrates seamlessly under flooring or interior surfaces without affecting height or structure.

Offered in 40 cm or 50 cm width options, this system provides efficient and even heat distribution using infrared technology, delivering comfortable radiant warmth directly to objects and surfaces rather than heating air.

An optional M3 12V AC/DC thermostat (black) is available for precise temperature control.

Features

• Ultra-thin design: Only 0.366 mm thickness for invisible installation
• Flexible installation: Ideal for curved or custom layouts
• Infrared heating technology: Direct heat transfer for improved comfort
• High efficiency (98%): Minimal energy loss during operation
• Even heat distribution: Consistent warmth across the entire surface
• Low-voltage safe system: Suitable for vehicles and sensitive environments
• Cut-to-length design: Can be shortened every 2.5 cm

Specifications

• Operating voltage: 12V DC
• Power output: 130 W/m² ±10%
• Width options: 40 cm (active area ~37 cm) / 50 cm (active area ~47 cm)
• Infrared wavelength: 7–14 microns
• Maximum temperature resistance: 80°C
• Heating efficiency: 98%
• Maximum roll length: 3–4 meters (depending on width version)
• Material thickness: 0.366 mm
• Heating coverage density: approx. 74 heating tracks per m²

Applications

• RV and camper van underfloor heating
• Battery and accumulator temperature regulation
• Terrariums, incubators, and beehive heating systems
• Greenhouse propagation and plant overwintering
• Technical prototyping and custom heating solutions
• Moisture and mold prevention in sensitive areas

Optional Add-On

• M3 12V AC/DC Thermostat (Black)
  • Flush-mounted digital temperature control
  • Compatible with 12V DC and AC systems
  • Internal and external sensor support
  • Ideal for precise underfloor heating regulation
