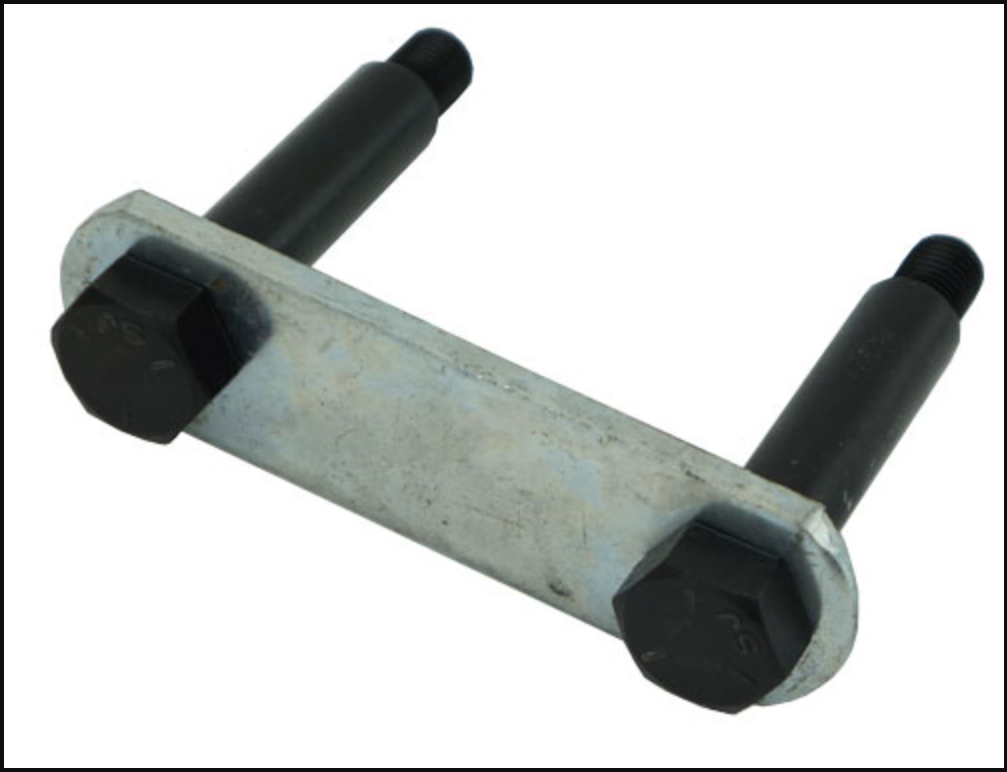

Shackle Link Assembly - 0.224" Thickness, 3-1/8" Center-to-Center
Features
- Direct replacement shackle link assembly for RV suspension systems
- Connects suspension springs to axle hangers for proper load transfer and alignment
- Available in multiple sizes for correct suspension matching
- Complete installation kit for straightforward replacement
- Heavy-duty compatible design for use with wet bolt (greaseable) setups
- Supports stable towing performance by maintaining suspension integrity
- Replacement-grade component designed for direct-fit installation
Specifications
- Component type: Suspension shackle link assembly
- Available sizes: 2.25" and 3.13" (center-to-center measurement)
- Measurement reference: Center hole to center hole width
- Material: Steel construction
- System compatibility: RV trailer suspension systems
- Installation: No assembly required
- Unit of measure: EA
- Fitment: Application-specific replacement part
RV Suspension Shackle Link Assembly – Replacement Leaf Spring Connection Kit
Replacement shackle link assembly designed for RV trailer suspension systems. This component connects leaf springs to axle hangers, maintaining proper suspension geometry, stability, and controlled movement during towing.
Included Components
- (1) Shackle link plate
- (2) Shoulder bolts
Installation Notes
- Match replacement size to original suspension hardware
- Reference OEM label or existing component dimensions before installation
- Compatible with standard and heavy-duty wet bolt configurations
Function Notes
- Maintains correct suspension alignment and axle positioning
- Helps improve ride stability and towing control
- Essential wear component in RV suspension maintenance systems
