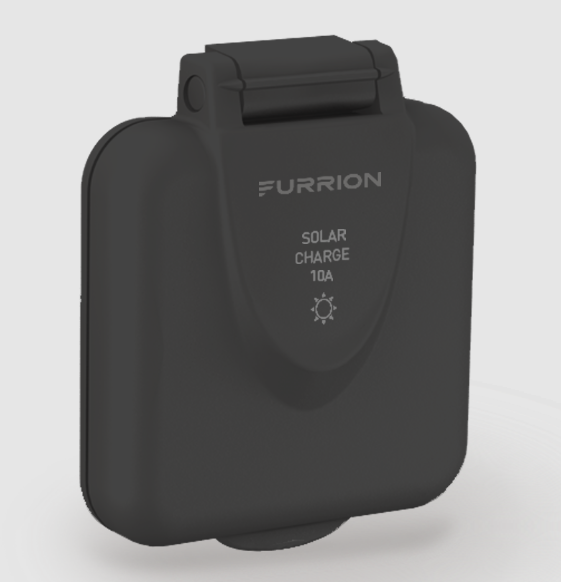

Furrion 10A RV Solar Port Inlet - Black
Specifications
- Operating Voltage: 12–14V DC
- Current Rating: 10A
- Connector Type: Solar port inlet
- Construction Material: Marine-grade polymer
- UV Resistance: Tested for UVA/UVB exposure
- Environmental Protection: Weatherproof and watertight
- Compatibility: Designed for use with 10A PWM solar charging systems and portable solar panels
- Furrion Reference Number: FSPINS-BS-OEM
- Installation Type: Screw-on mounting
- Fitment: Universal (industry-standard solar inlet applications)
- Warranty: 1 Year
Included
- Solar port inlet connector
- Installation hardware and instructions
RV Solar Port Inlet – 10A 12–14V DC Charging Connector
This RV solar port inlet provides a secure and convenient connection point for charging a 12V battery bank using external solar panels. Designed for outdoor mounting, it enables efficient power transfer from compatible solar charging systems while maintaining durability in harsh environmental conditions.
Features
- Enables solar charging for RV battery banks through an external inlet connection
- Compatible with 10A PWM solar charging systems
- 12–14V DC operating range for standard RV electrical systems
- Industry-first terminal design that helps reduce operating temperature during use
- Transparent pin face allows visual inspection for connection status and potential overheating
- Marine-grade construction for durability in demanding outdoor environments
- UV-resistant and weatherproof design for long-term exposure to sun and elements
- Watertight inlet housing to help protect internal connections
- Universal fit design compatible with standard industry solar inlet configurations
- Easy screw-on installation with included step-by-step guidance
- Designed for exterior RV mounting for direct solar panel connectivity
