Furrion Chill® Cube Non-Ducted Air Distribution Box (R32) with Remote - White
Specifications
- Product Type: Non-ducted air distribution box
- Compatibility: 18,000 BTU RV air conditioning systems
- Voltage: 115V AC
- Refrigerant Compatibility: R32
- Mounting Requirements: Standard 14" roof opening; suitable for 3"–6" roof thickness
- Sound Level: Approximately 60 dB
- Color: White
- Fitment: Model-specific (not universal)
- Installation Type: Ceiling-mounted air distribution unit

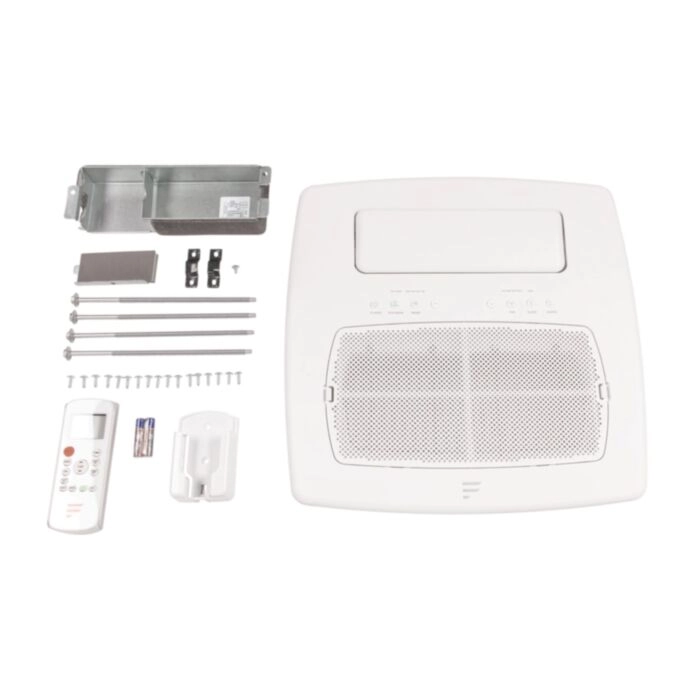

- Included Components:
- Air distribution box
- Electrical box and cover
- Mounting bolts (long and short)
- Adhesive insulation foam
- Remote control
- Wall mount holder
- Warranty: 2 years limited warranty
- Unit of Measure: Each
- Manufacturer Part Number: FACT18MA-PS-AM
Non-Ducted Air Distribution Box for RV Air Conditioner (18K BTU, 115V, R32 Compatible)
This non-ducted air distribution box is designed for use with compatible 18,000 BTU RV air conditioning systems. It provides efficient air circulation through a compact, low-profile design, helping distribute airflow evenly throughout the living space. ADB unit only; air conditioning system not included.
Features
- Non-ducted configuration for direct air distribution in single-zone RV setups
- Oscillating front vent to help distribute airflow more evenly across the interior
- Multiple operating modes including Auto, Eco, Gear, and Turbo for adjustable performance
- Three fan speed settings plus Turbo mode for customizable airflow
- Remote control with temperature sensing (“Follow Me”) to help maintain comfort at occupant level
- Auto-fan functionality to support consistent cabin temperature
- Detachable air filter for simple maintenance and cleaning
- Low-profile design to preserve interior headroom
- Designed for compatibility with specific 18K BTU RV air conditioning systems using R32 refrigerant
- ADB unit only — air conditioner and other system components not included
Width: 62.79" (1595mm)
Crossbar Length: 62.40" (1585mm)
130 HR Transit: 104.72" (266.0cm)
148 MR Transit: 132.3" (336.0cm)
148 HR Transit: 81.9" (308.0cm)
148 HR EXT Transit: 150.4" (382.0cm)
Lengths by Vehicle:
Internal Width: 62.22" (1555mm)
130 Transit: 49 lbs
148 Transit: 58 lbs
148 EXT Transit: 74 lbs
