RV Window - 24"W x 22"H Vertical

https://canadarv.com/web/image/product.template/7017/image_1920?unique=91bfb82

Specifications

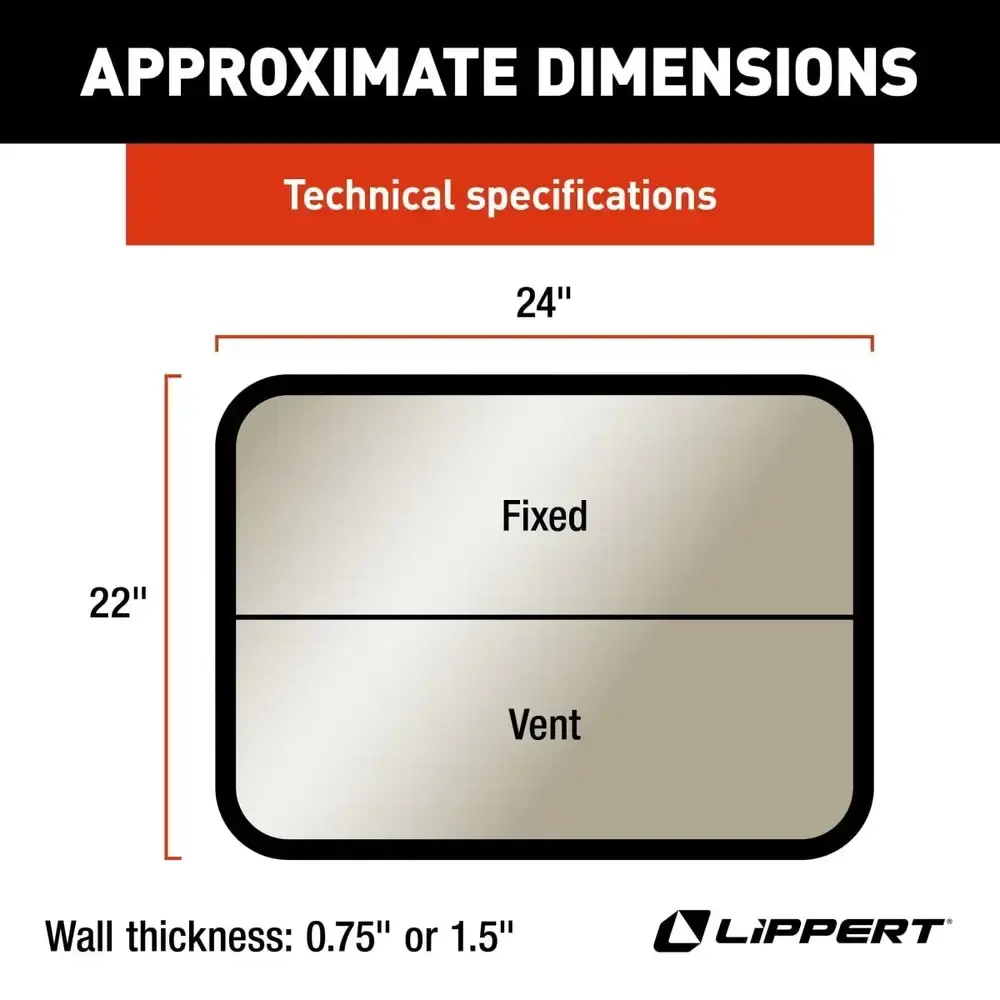

  • Window Size: 24" W × 22" H (rough opening)

  • Window Style: Vertical sliding

  • Frame Type: Radius corner (3.125")

  • Frame Color: Black

  • Glass Type: Tempered, tinted

  • Frame Material: Aluminum

  • Wall Compatibility:

    • Standard: 15/16" and 1-3/8"

    • Compatible range: approx. 0.75" to 1.5"

  • Quantity: 1 unit

  • Warranty: 1 year

What’s Included

  • 1 × RV window

  • 1 × Trim ring

  • Mounting screws

  • Foam seal

301.79 $ 301.79 CAD 301.79 $

Contact us for quote


This combination does not exist.

Terms and Conditions
Return within 30 days for most orders
Free delivery on most orders

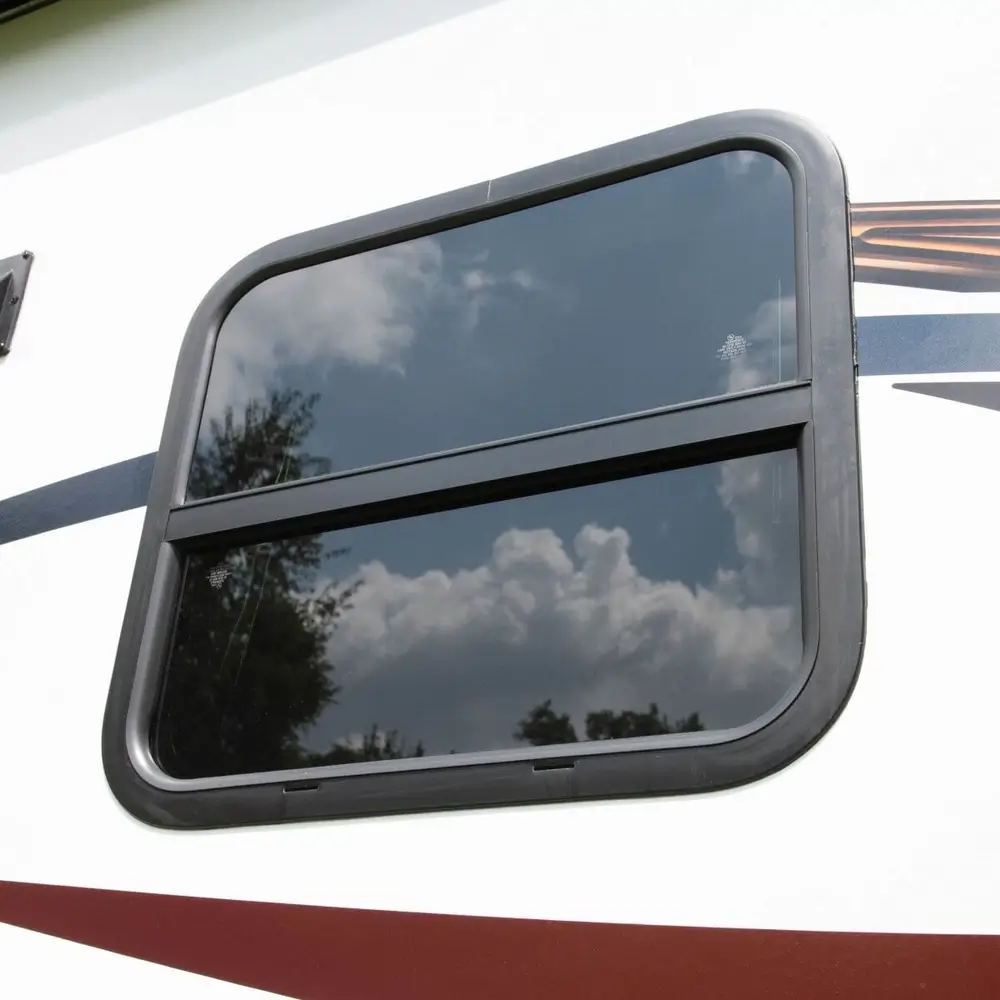

RV Vertical Sliding Window – 24" W x 22" H

Upgrade or replace your RV window with a durable, secure, and easy-to-install vertical sliding window. Designed with tempered tinted glass, corrosion-resistant materials, and built-in ventilation, this window enhances comfort, safety, and energy efficiency for life on the road.

Features

  • Complete installation kit includes trim ring, mounting screws, and foam seal for a straightforward setup.

  • Tempered tinted glass resists cracking, chipping, and shattering while reducing heat and glare.

  • Enhanced privacy with tinted glass that blocks sunlight and limits visibility from outside.

  • Corrosion-resistant aluminum frame ensures long-lasting durability in outdoor conditions.

  • Secure sealing system with latching mechanism and gaskets to prevent leaks and drafts.

  • Built-in water weep system directs moisture away from the window frame.

  • Sliding window design allows airflow while maintaining protection.

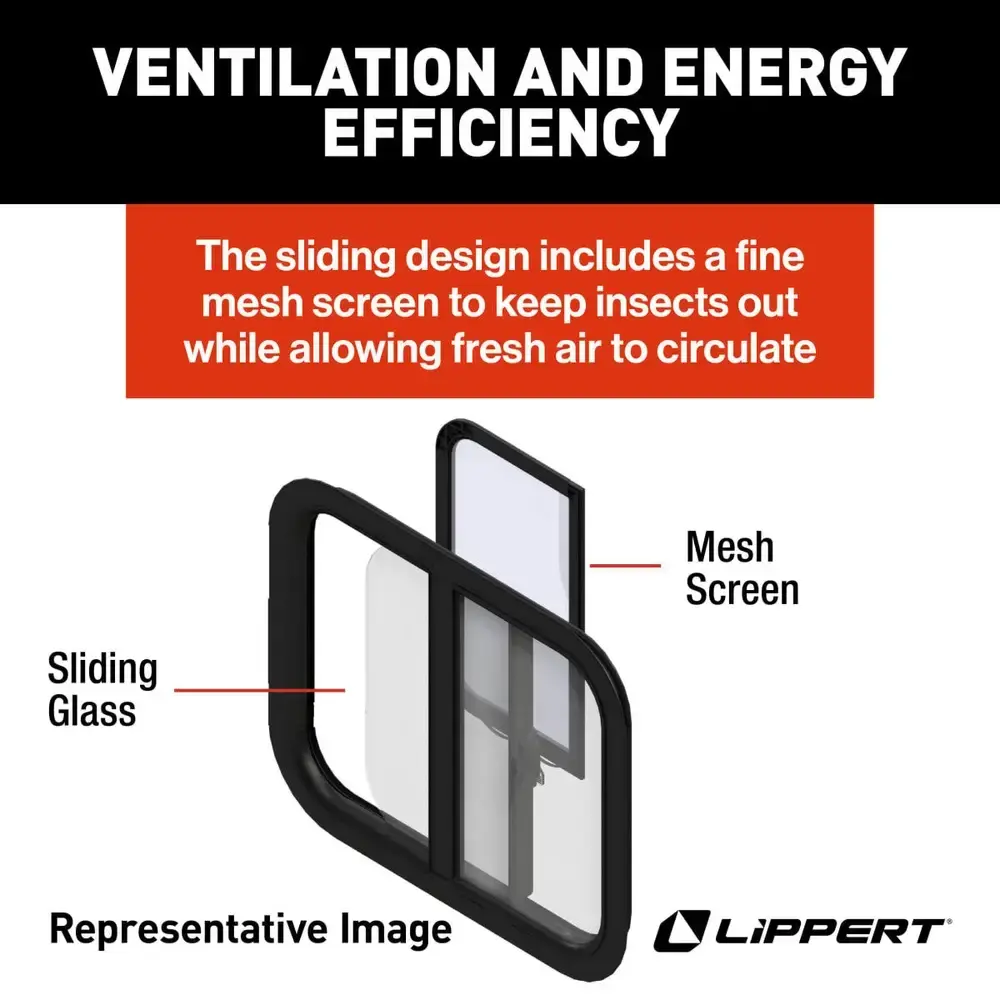

  • Integrated mesh screen keeps insects out while letting fresh air in.

  • Energy-efficient ventilation helps regulate interior temperature and reduce HVAC usage.

Installation Notes

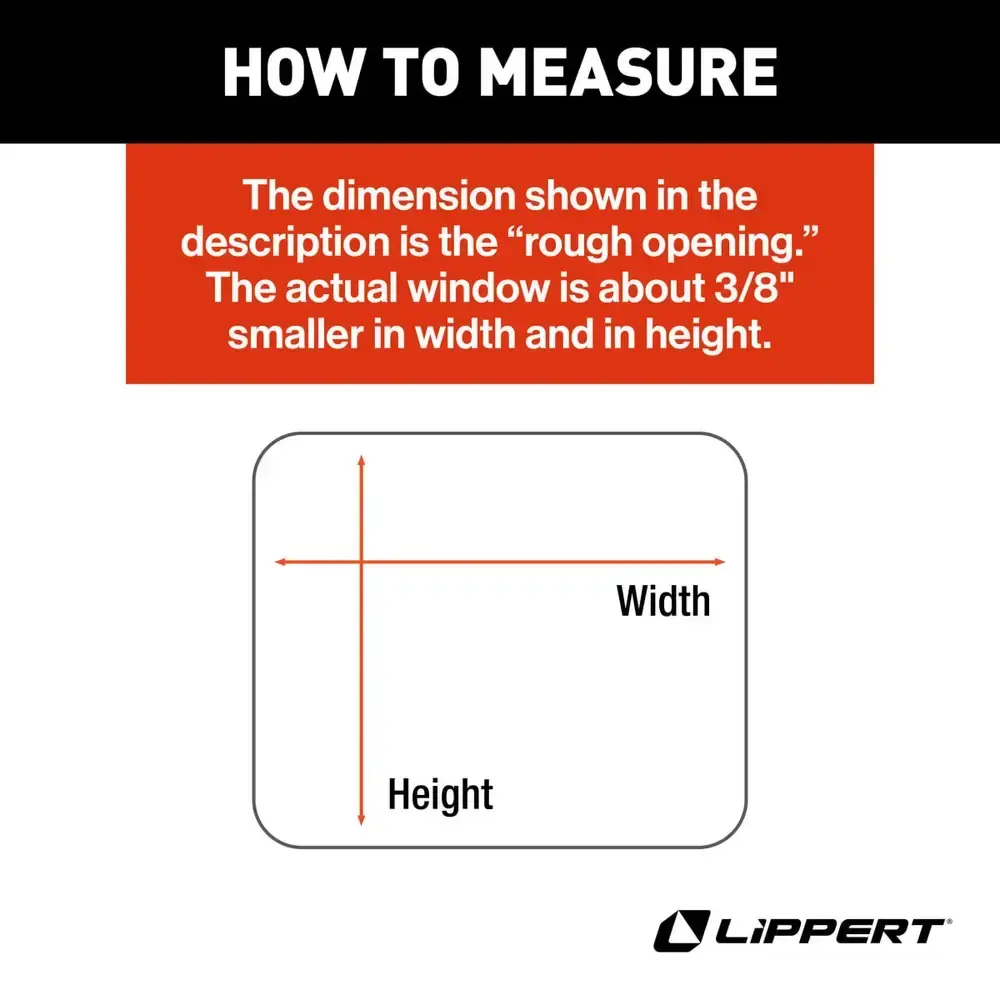

  • The listed dimensions refer to the rough opening; actual window size is approximately 3/8" smaller in width and height.

  • Ensure accurate measurements before installation.

  • A slight gap may appear on thicker walls; this is acceptable if not visible after installation.

  • Sealant is required but sold separately.

Optional Notes

  • Compatibility: Designed for a wide range of RV wall thicknesses and applications.

  • Durability: Heavy-duty construction withstands weather, travel, and daily use.

  • Comfort: Ventilation system improves airflow while maintaining interior protection.
