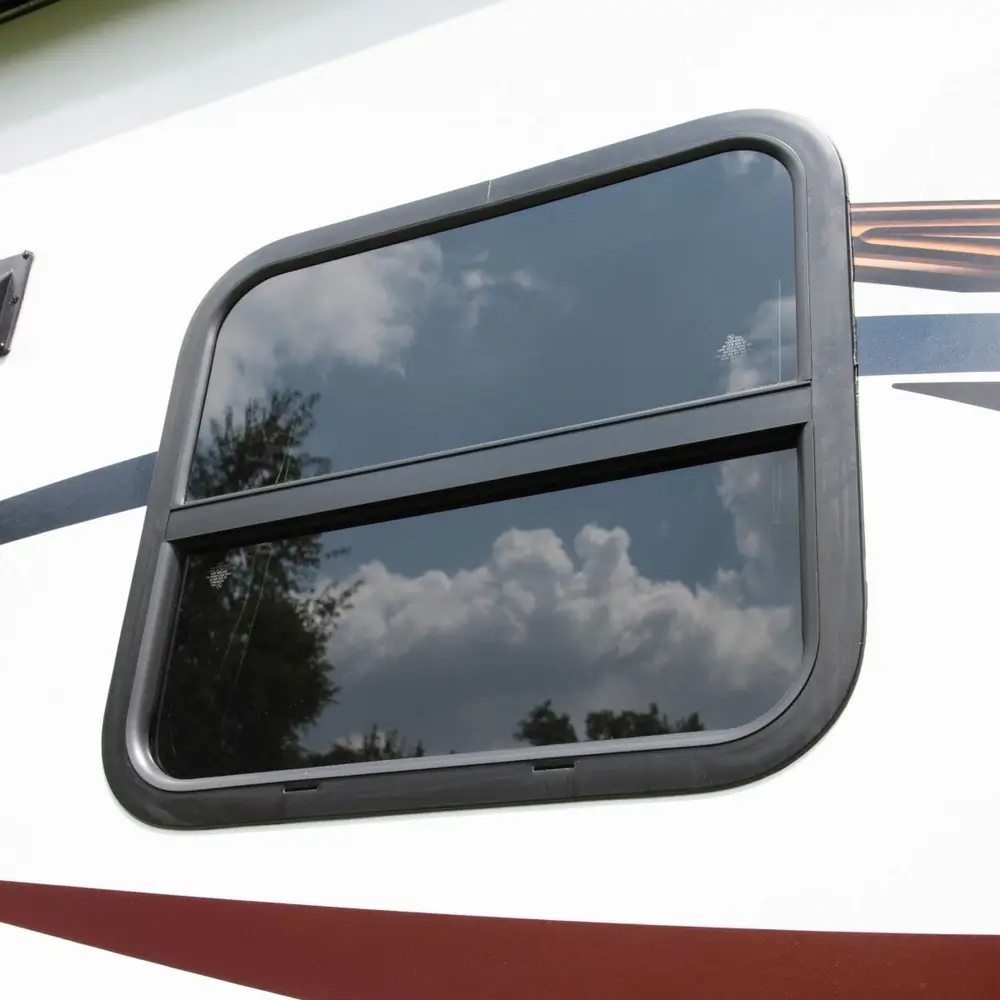

RV Window - 24"W x 29"H Vertical Slider
Specifications

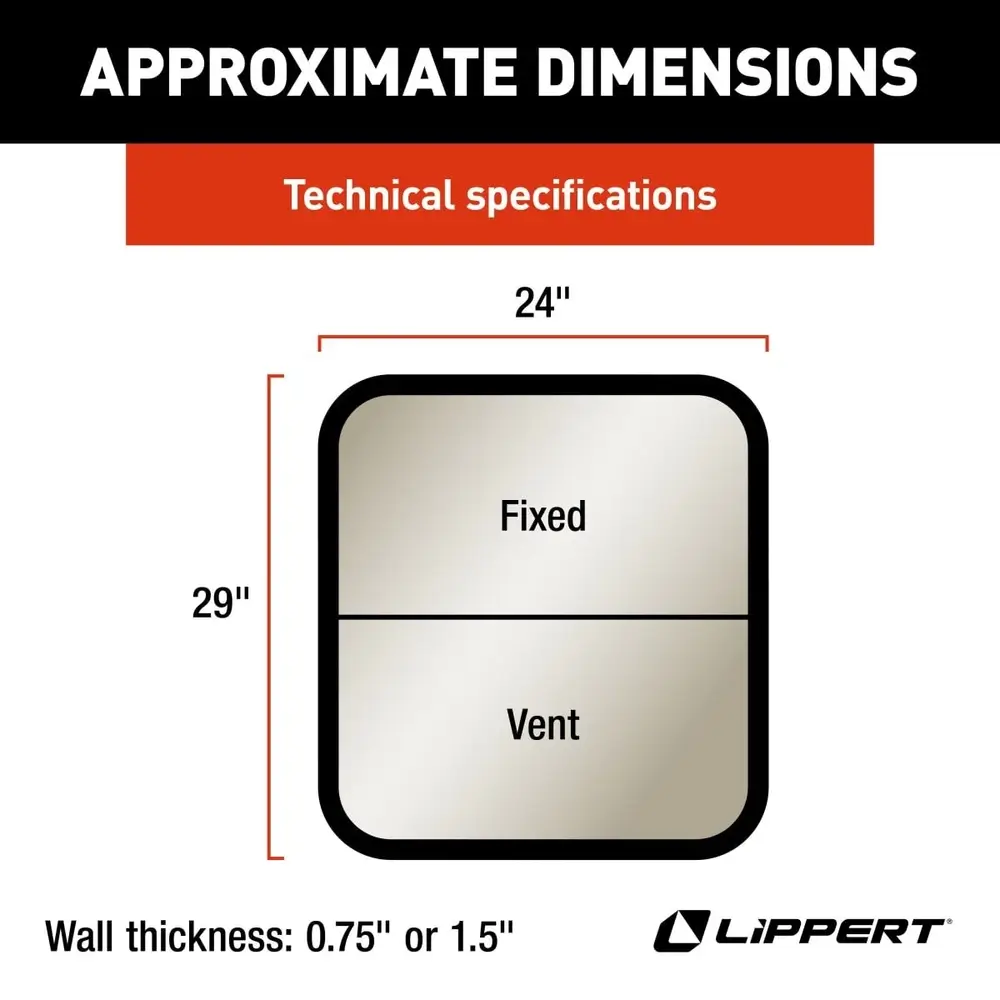

Window Size: 24" W × 29" H (rough opening)
Window Style: Vertical sliding
Frame Type: Radius corner (3.125")
Frame Color: Black
Glass Type: Tempered, tinted
Frame Material: Aluminum
Wall Compatibility:
Standard: 15/16" and 1-3/8"
Compatible range: approx. 0.75" to 1.5"
Quantity: 1 unit
Warranty: 1 year
What’s Included
1 × RV window
1 × Trim ring
Mounting screws
Foam seal
RV Vertical Sliding Window – 24" W x 29" H
Upgrade your RV with a durable, secure, and easy-to-install vertical sliding window. Designed with tempered tinted glass and a corrosion-resistant aluminum frame, this window delivers reliable performance, improved ventilation, and enhanced interior comfort.
Features
Complete installation kit includes trim ring, mounting screws, and foam seal for easy setup.

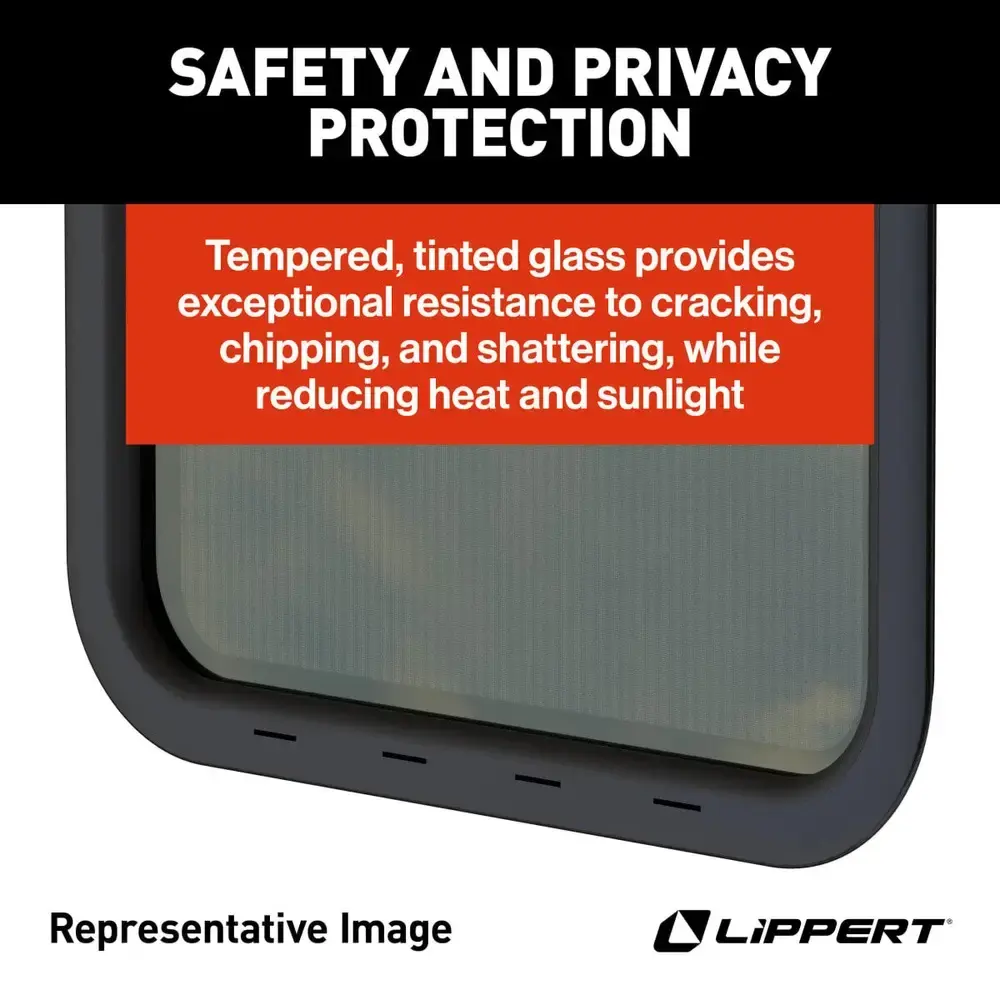

Tempered tinted glass resists cracking, chipping, and shattering while reducing heat and glare.
Enhanced privacy with tinted glass that blocks sunlight and limits visibility from outside.

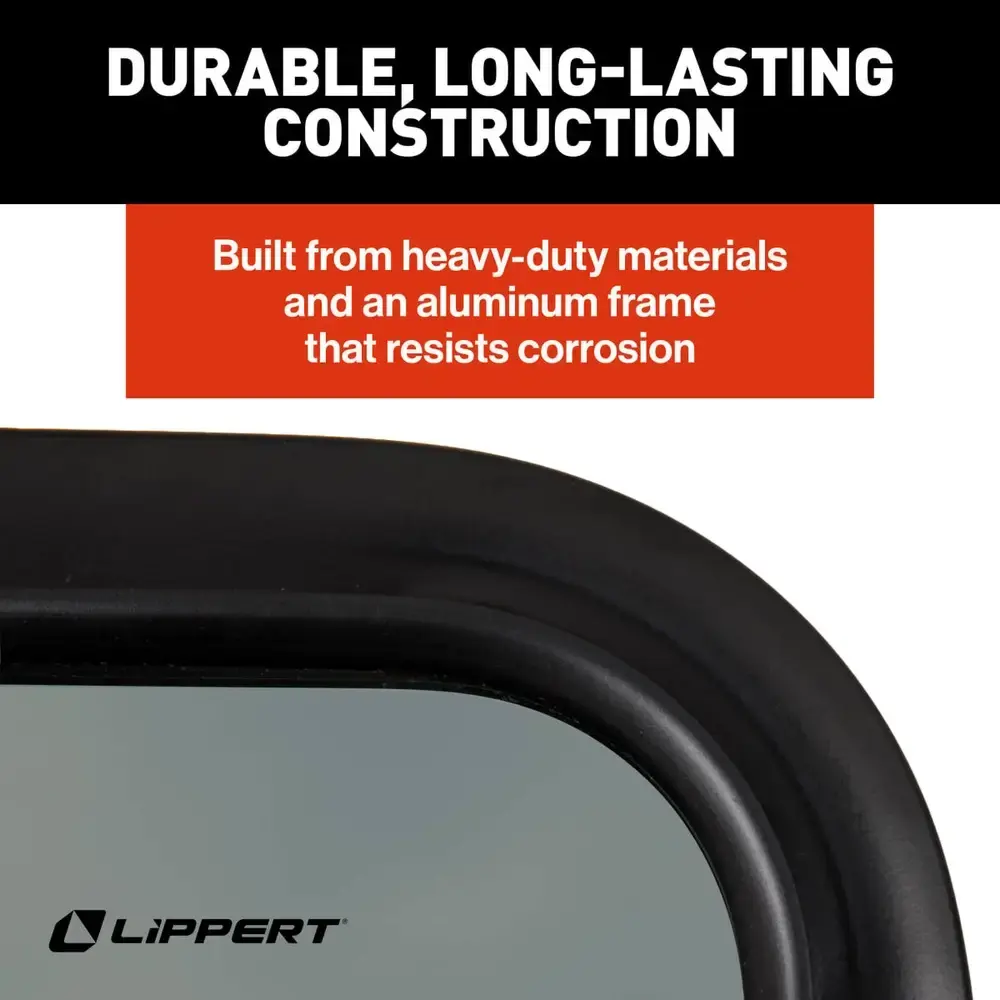

Corrosion-resistant aluminum frame ensures long-lasting durability in outdoor environments.

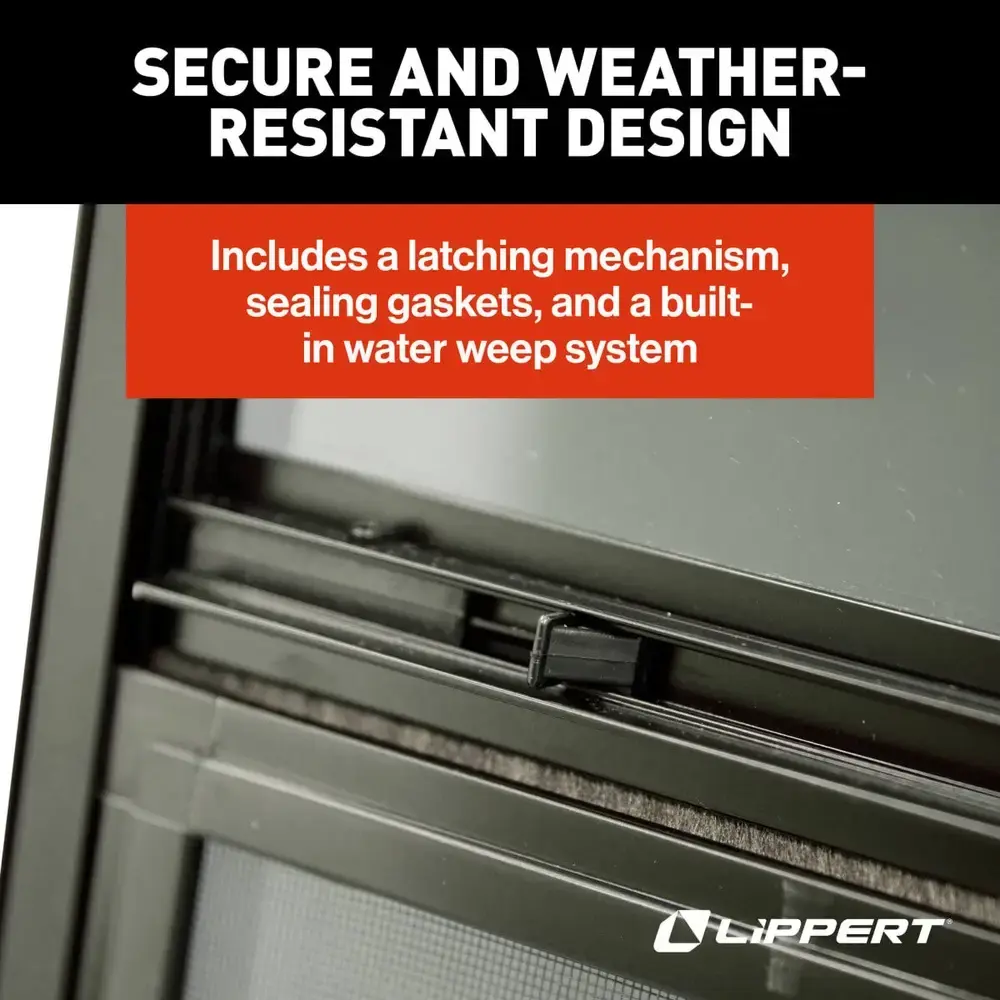

Secure sealing system with latching mechanism and gaskets helps prevent leaks and drafts.
Built-in water weep system directs moisture away from the window frame.
Vertical sliding design allows smooth operation and efficient airflow.

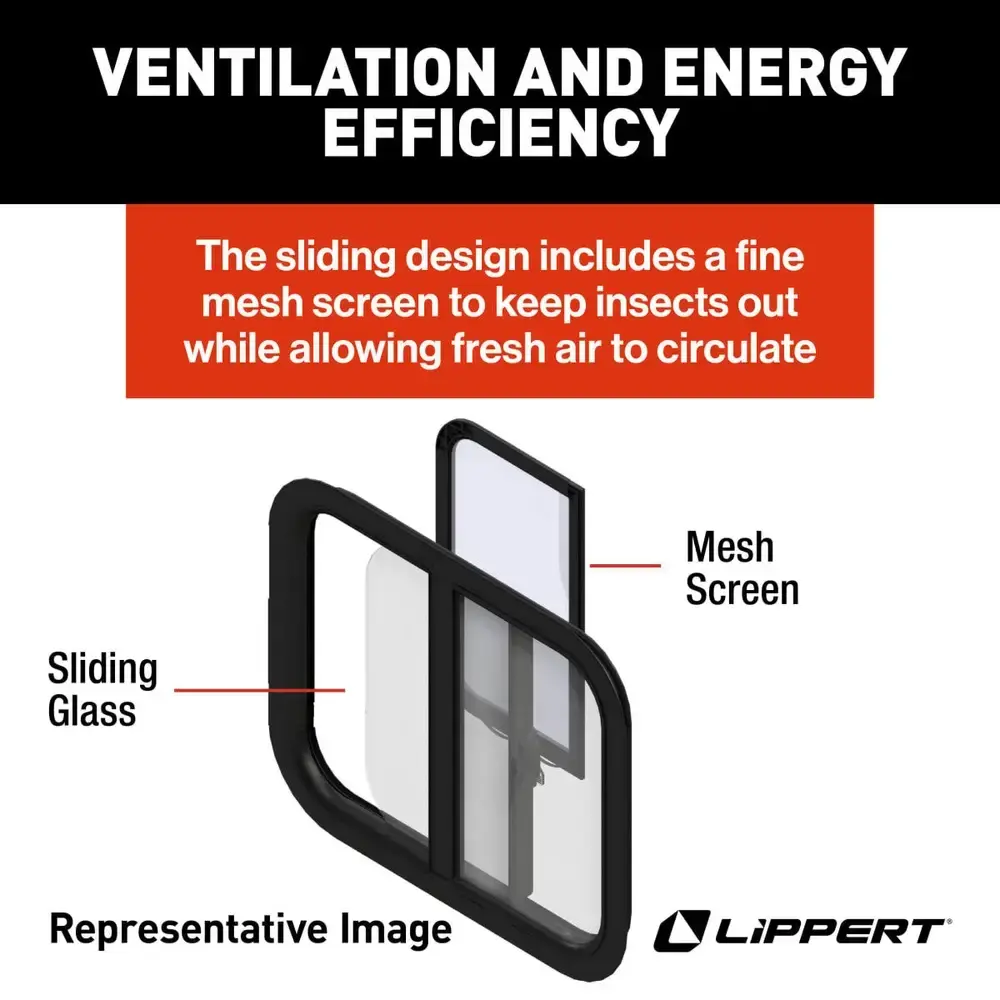

Integrated mesh screen keeps insects out while allowing fresh air in.
Energy-efficient ventilation helps regulate interior temperature and reduce HVAC usage.
Installation Notes

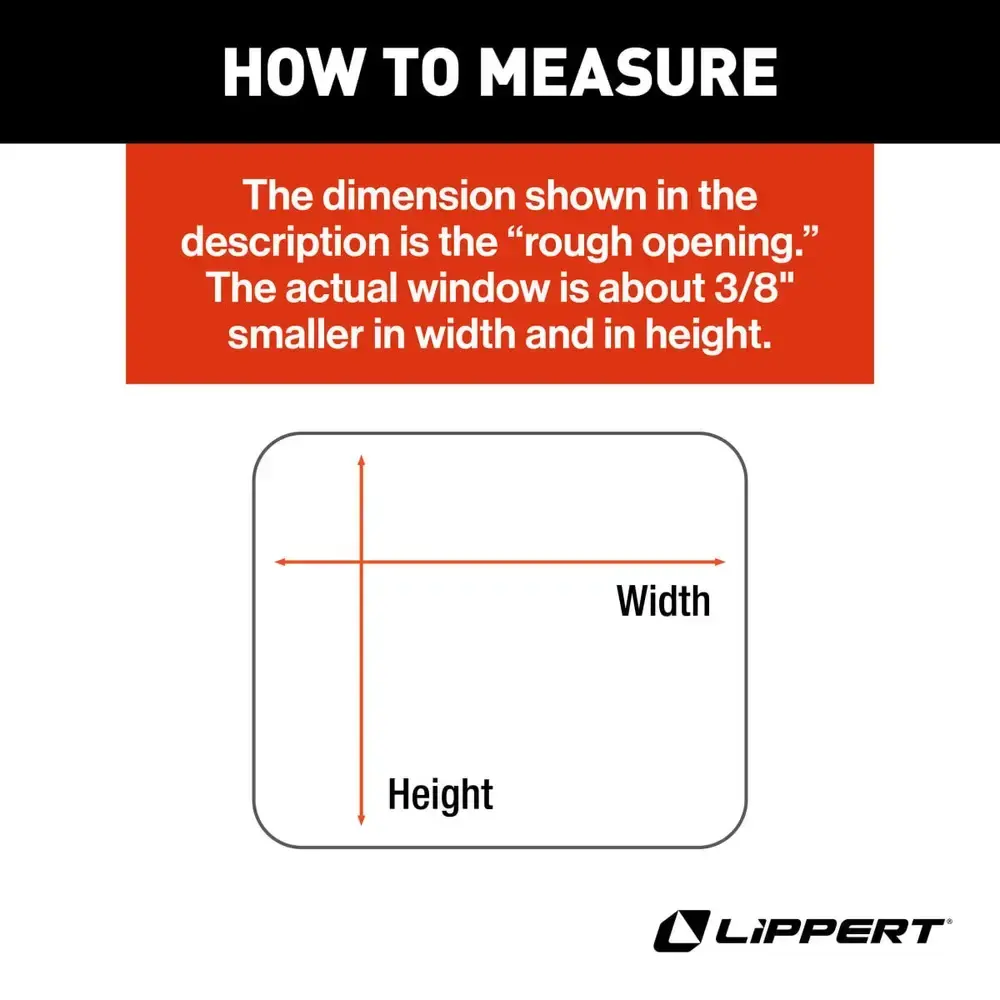

Dimensions listed refer to the rough opening; actual window size is approximately 3/8" smaller in width and height.
Measure carefully before installation.
Slight gaps may occur on thicker walls; acceptable if not visible after installation.
Sealant required for installation (sold separately).
Optional Notes
Compatibility: Designed for a wide range of RV wall thicknesses and applications.
Durability: Heavy-duty construction withstands weather exposure and road conditions.
Comfort: Sliding design improves airflow while maintaining protection from insects and outdoor elements.
