RV Window - 18"W x 22"H Vertical Slider
Specifications
Window Size: 18" W x 22" H
Frame Type: Radius aluminum, black
Window Style: Vertical sliding
Material: Tempered tinted glass, aluminum frame
Wall Compatibility: 1/2" – 3" (trim ring fits 1.50")
Corner Radius: 3.125"
Quantity: 1 EA
Installation Kit Includes: Trim ring, 50 screws, 40 ft. foam seal
Warranty: 1 Year
Unit of Measure: Each

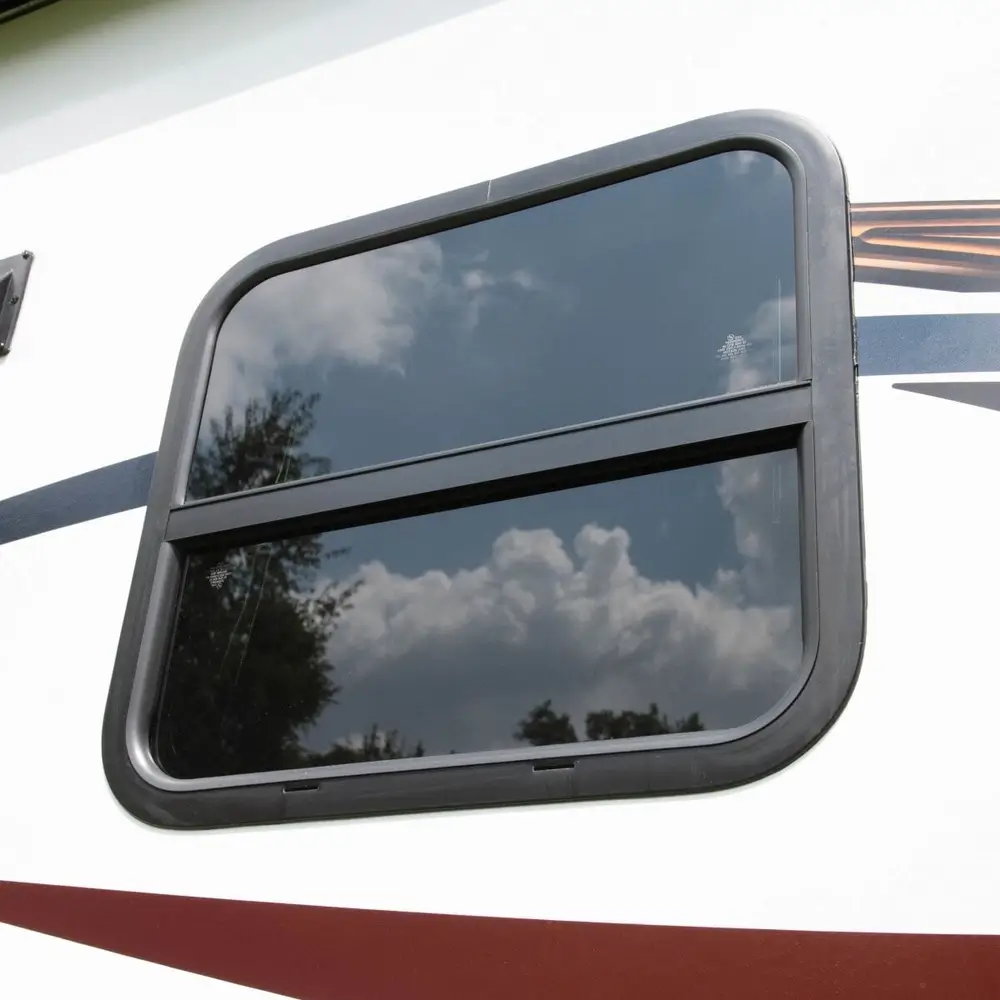

RV Vertical Sliding Window – 18" W x 22" H
The 8800 Series 18" x 22" vertical sliding RV window provides a durable, secure, and easy-to-install replacement solution. With tempered tinted glass, corrosion-resistant aluminum framing, and integrated ventilation, this window ensures long-lasting comfort, privacy, and energy-efficient performance.
Features
Complete Replacement Kit — Includes trim ring, 50 screws, and 40 ft. foam seal for quick, hassle-free installation (sealant sold separately).

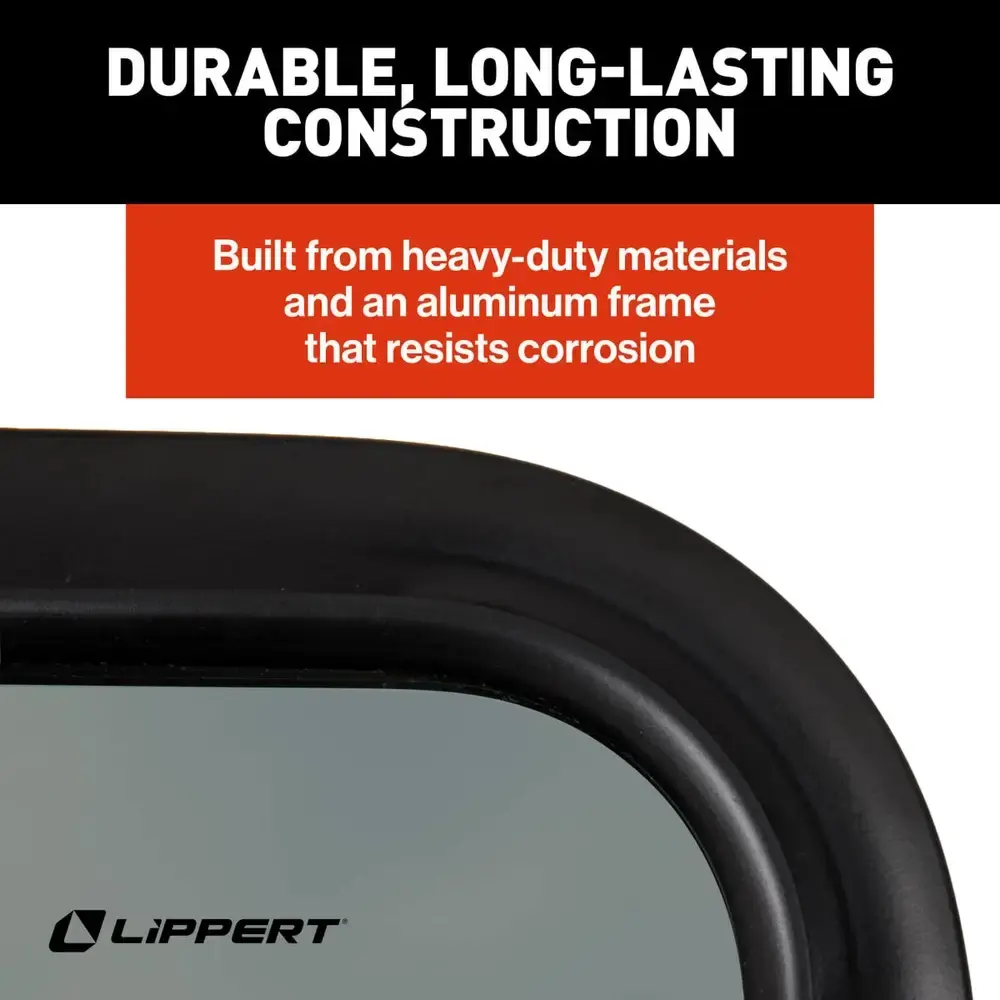

Durable, Long-Lasting Construction — Heavy-duty materials and aluminum frame resist corrosion and wear for reliable, long-term performance.

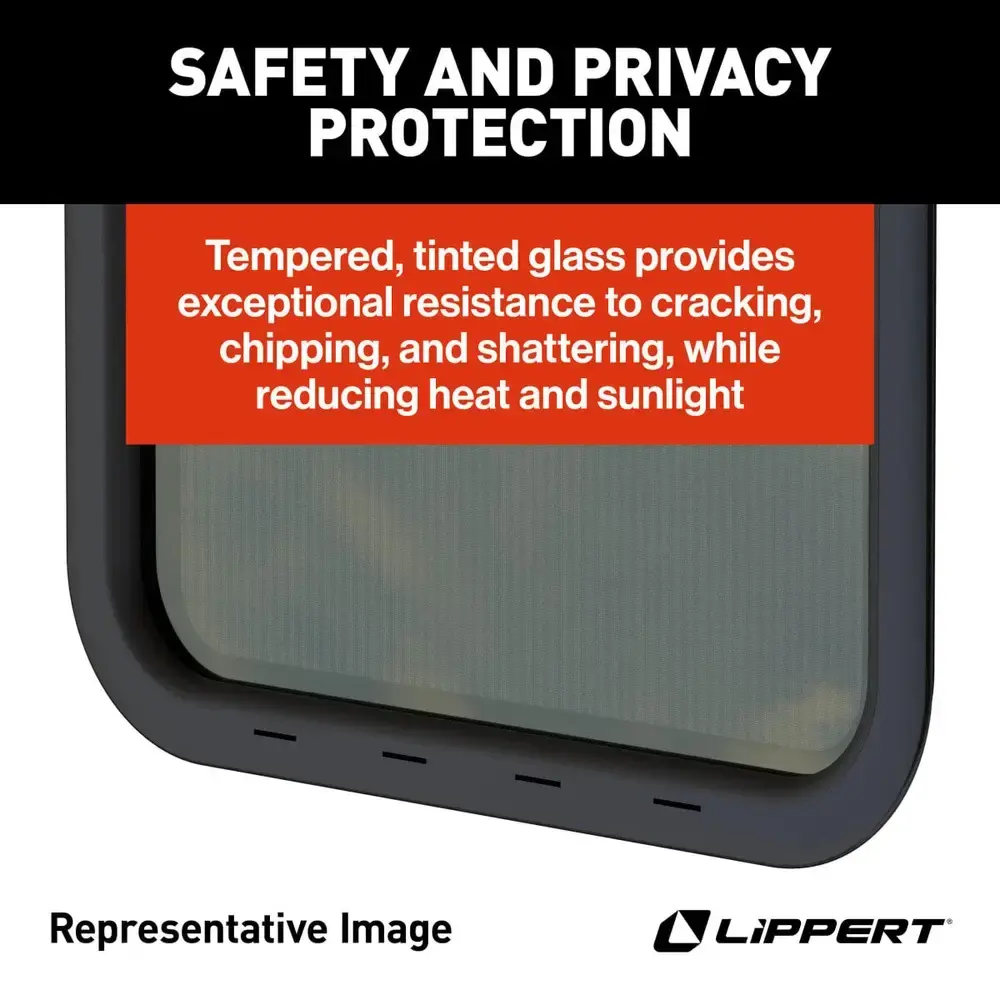

Safety & Privacy Protection — Tempered, tinted glass resists cracking, chipping, and shattering while reducing sunlight and heat for enhanced interior comfort and privacy.

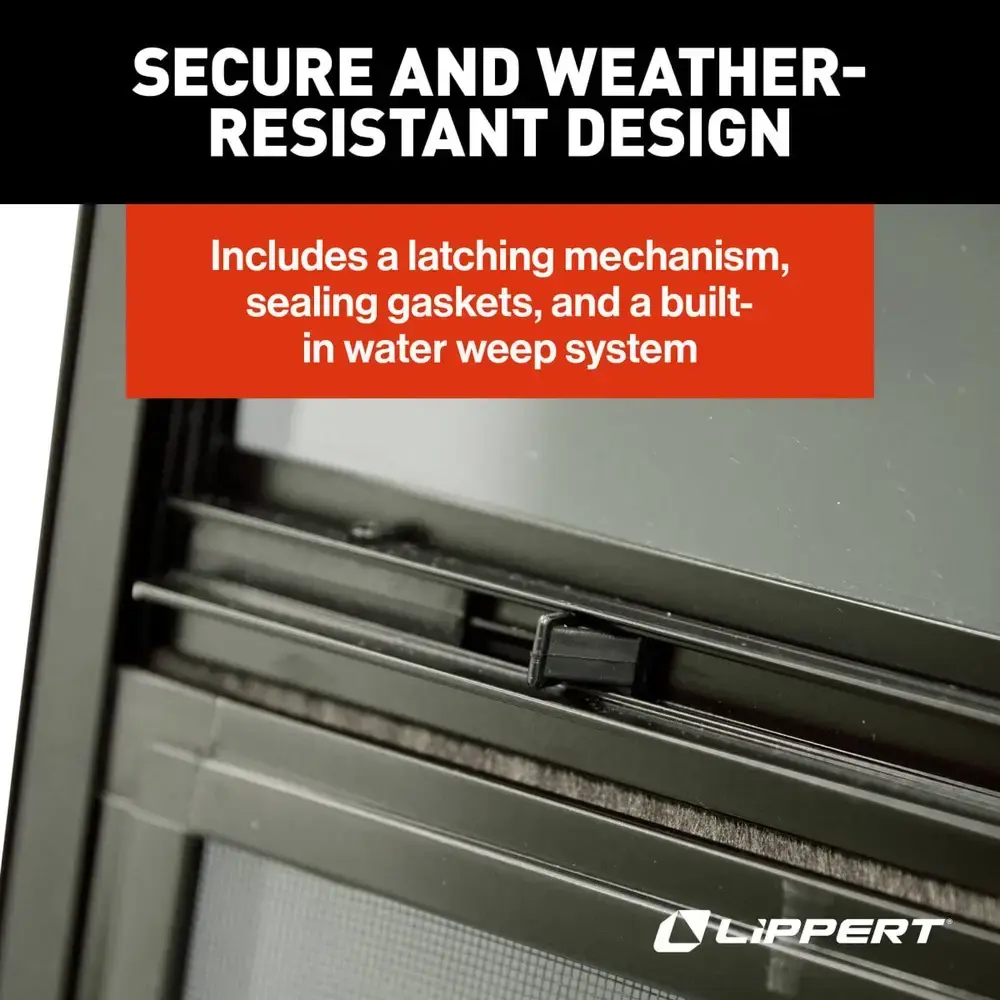

Secure & Weather-Resistant Design — Latching mechanism, sealing gaskets, and built-in water weep system keep your RV dry and secure.

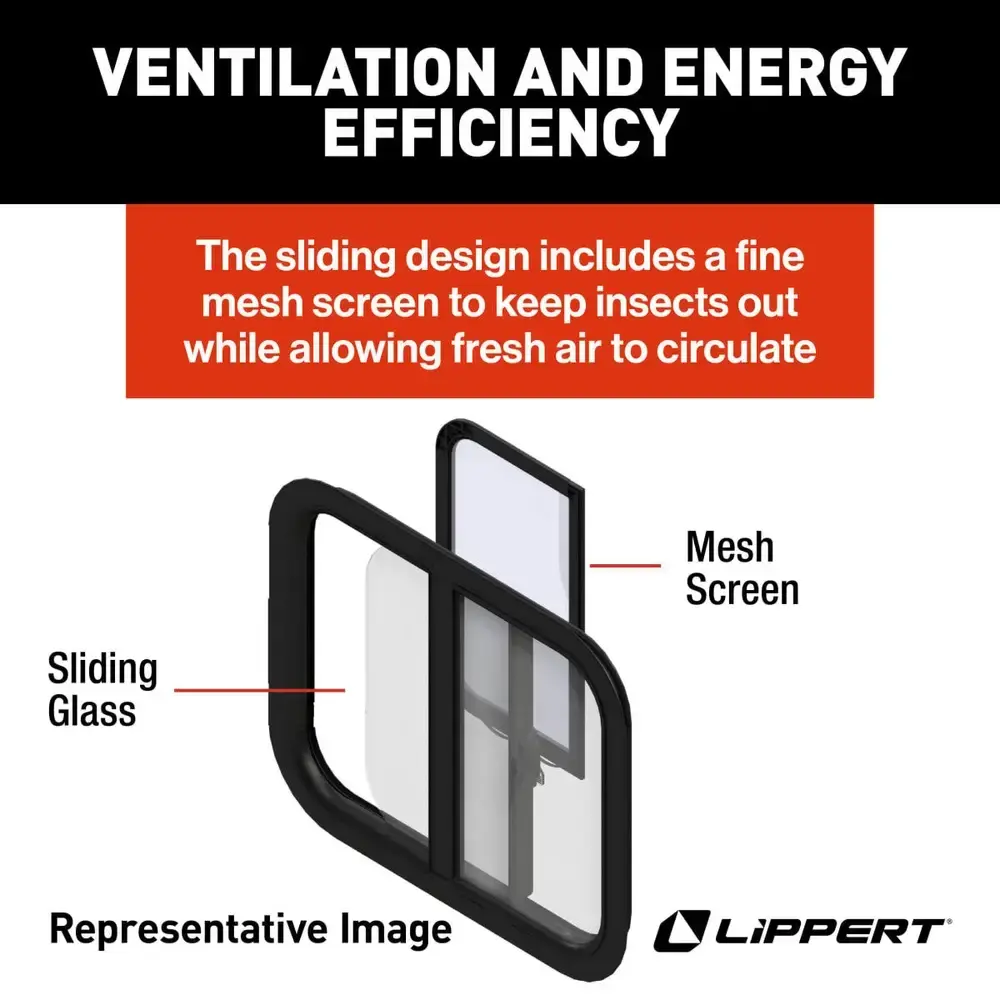

Ventilation & Energy Efficiency — Sliding design includes a fine mesh screen to allow airflow, keep insects out, and help maintain comfortable interior temperatures, reducing reliance on heating and cooling.
Flexible Installation — Compatible with wall thicknesses from 1/2" to 3" (trim ring accommodates 1.50"); corner radius 3.125" ensures precise fit. Horizontal or vertical slider models can be mounted on either driver or passenger side.
Made in Indiana — Cut, tempered, and assembled locally for quality and reliability.
Optional Fit Options — Existing trim rings may be used when available; contact Customer Care for other wall thickness requirements.
Optional Notes

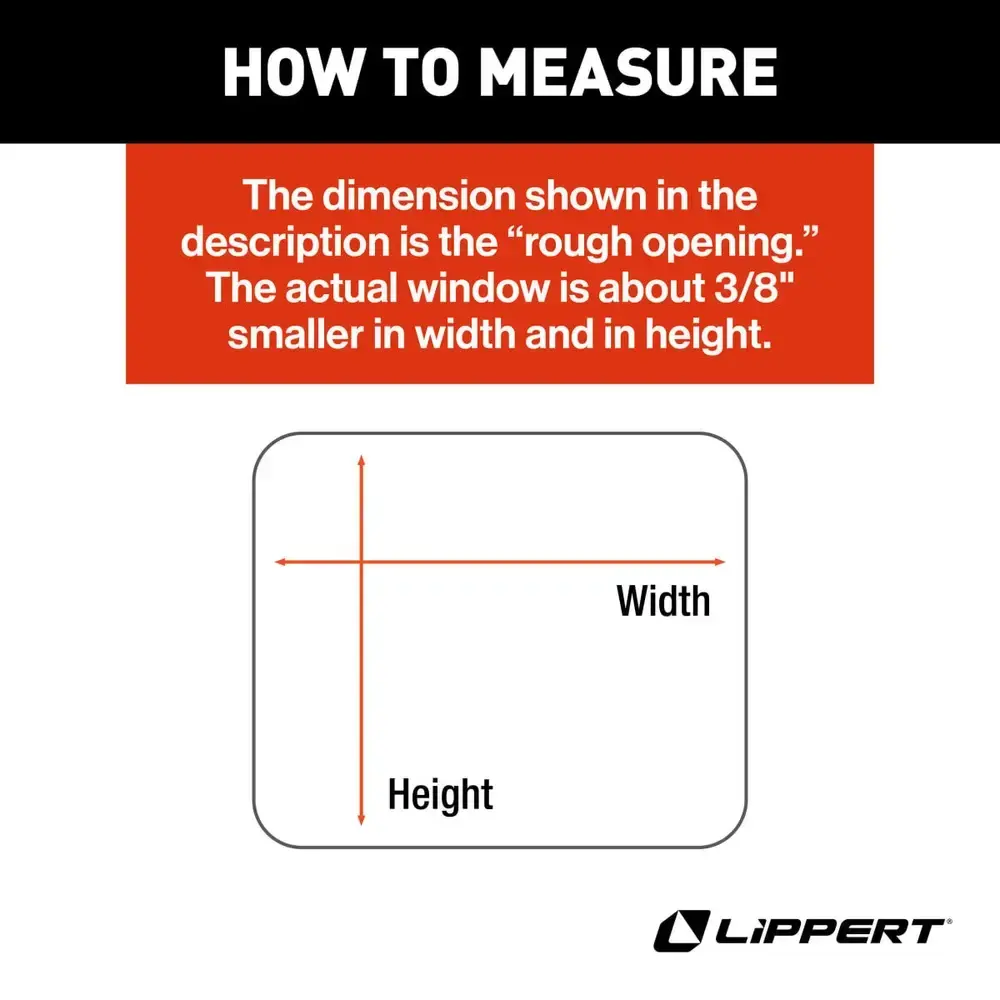

Measure carefully before installation; actual window dimensions are approximately 3/8" smaller than the rough opening.
Small gaps between trim ring and window frame on thicker walls are acceptable if not visible.
Multiple sizes, frame options, glass types, and slider styles are available for a wide range of RVs.
