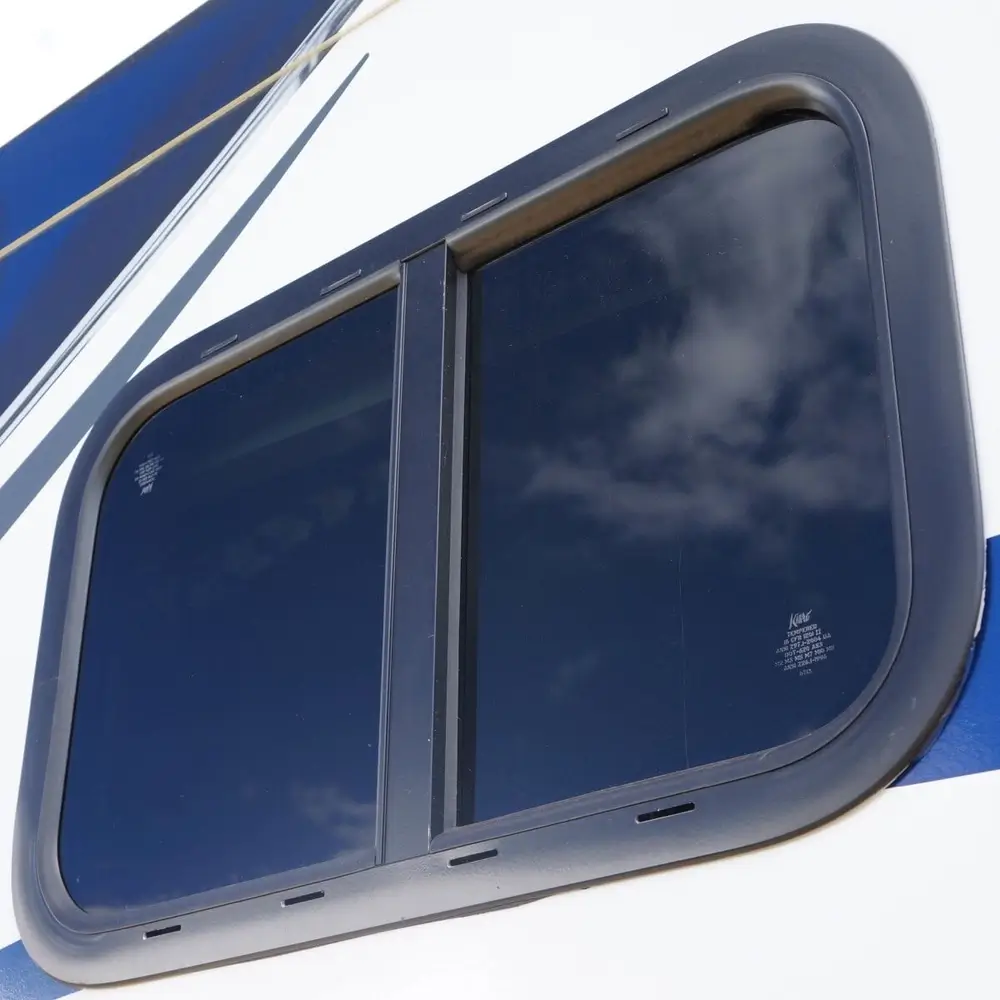

RV Window - 60"W x 29"H Horizontal Slider, Red Latch Escape
Specifications

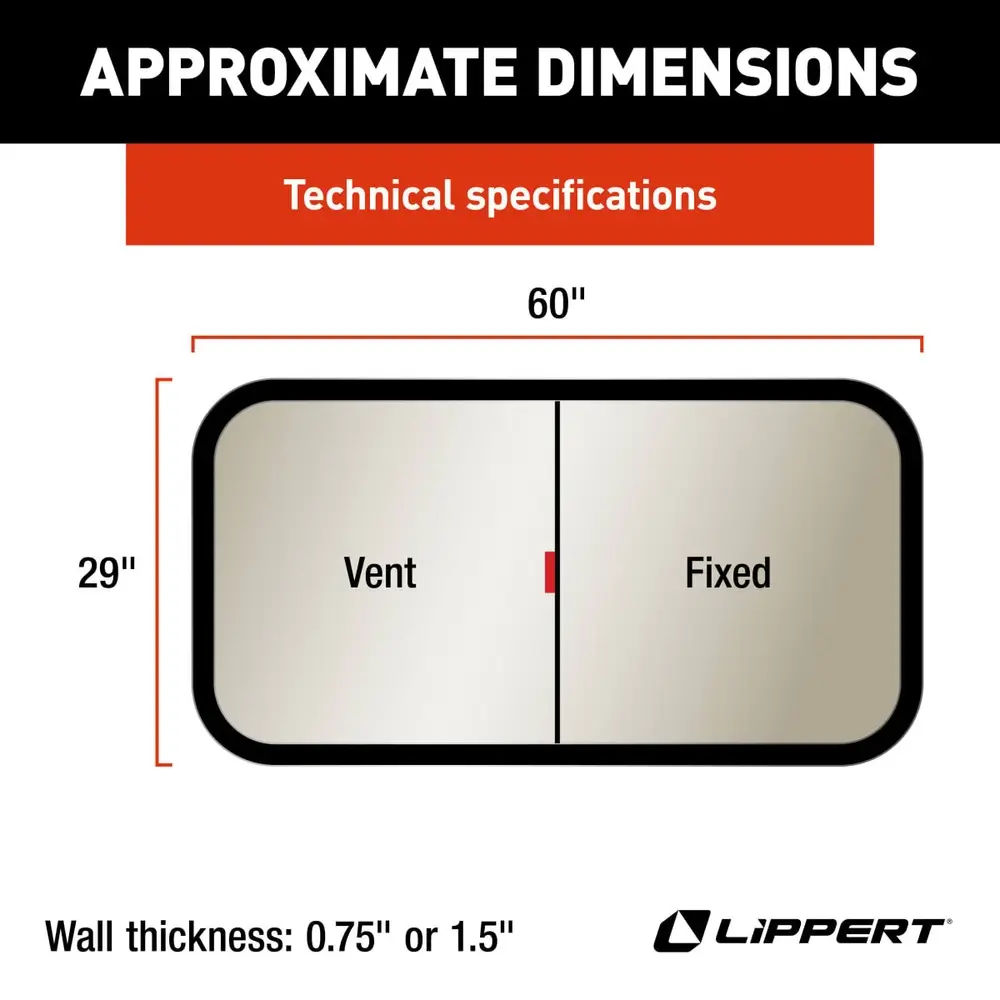

Window Size: 60" W x 29" H
Frame Type: Radius aluminum, black
Window Style: Horizontal sliding
Material: Tempered tinted glass, aluminum frame
Wall Compatibility: 1/2" – 3" (trim ring fits 1.50")
Corner Radius: 3.125"
Quantity: 1 EA
Installation Kit Includes: Trim ring, 50 screws, 40 ft. foam seal
Warranty: 1 Year
Unit of Measure: Each
Manufacturer Reference: V000358742
UPC: 848150077769
RV Horizontal Sliding Window – 60" W x 29" H
The 8800 Series 60" x 29" horizontal sliding RV window delivers a durable, secure, and easy-to-install replacement solution. With tempered tinted glass, corrosion-resistant aluminum framing, and integrated ventilation, it ensures long-lasting comfort, safety, and energy-efficient performance.
Features
Complete Replacement Kit — Includes trim ring, 50 screws, and 40 ft. foam seal for easy installation (sealant sold separately).

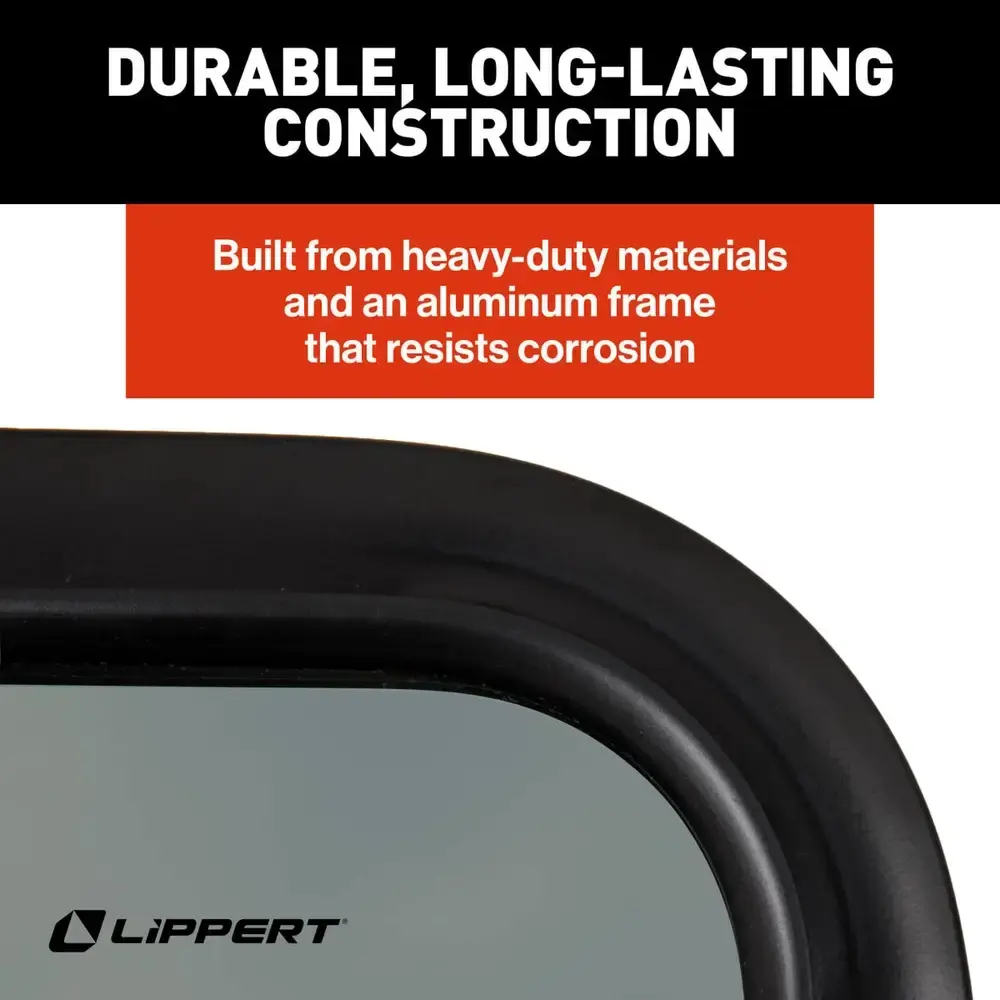

Durable, Long-Lasting Construction — Heavy-duty materials and aluminum frame resist corrosion for reliable, long-term use.
Safety & Privacy Protection — Tempered, tinted glass resists cracking, chipping, and shattering while blocking sunlight and heat to enhance interior comfort.

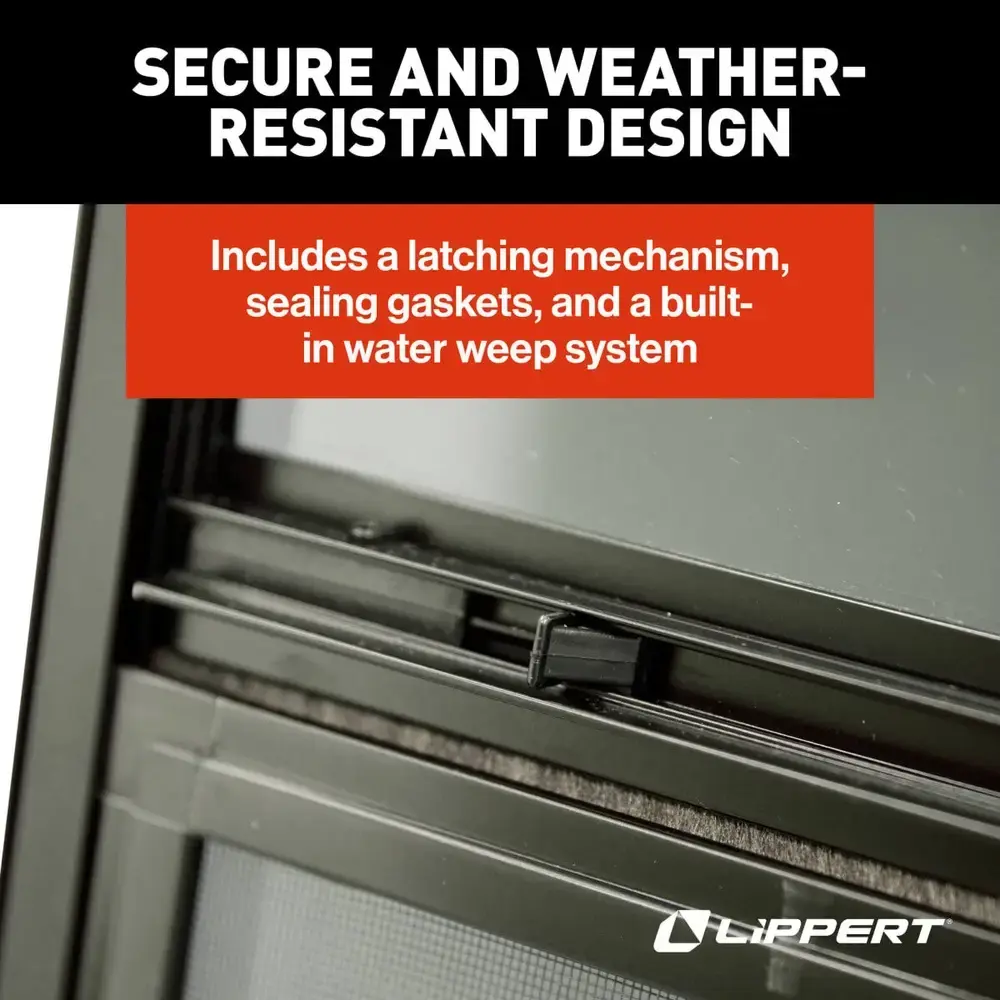

Secure & Weather-Resistant Design — Latching mechanism, sealing gaskets, and built-in water weep system keep your RV secure and dry.

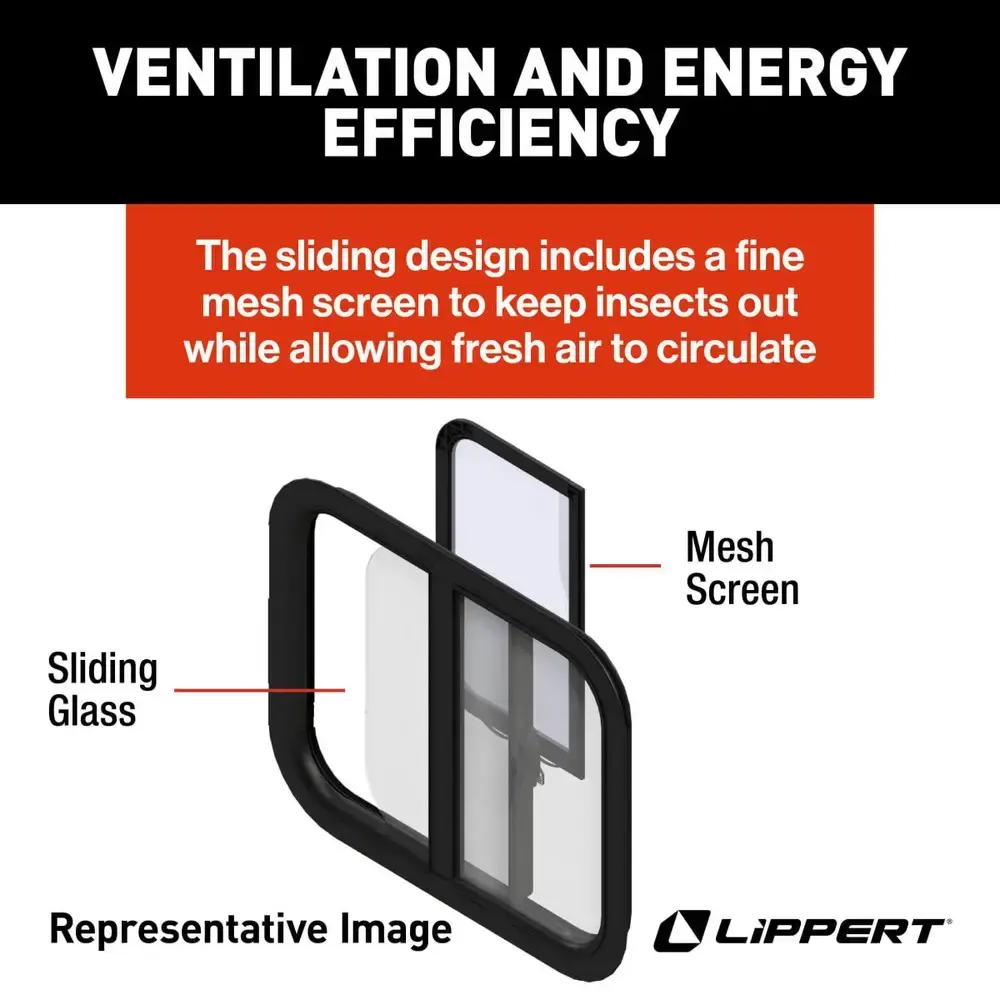

Ventilation & Energy Efficiency — Sliding design with fine mesh screen allows airflow while keeping insects out and helps maintain comfortable interior temperatures, reducing heating and cooling costs.
Flexible Installation — Compatible with wall thicknesses from 1/2" to 3" (trim ring fits 1.50"); 3.125" corner radius ensures precise installation. Horizontal slider models can be mounted on either driver or passenger side.
Made in Indiana — Cut, tempered, and assembled locally for consistent quality.
Notes

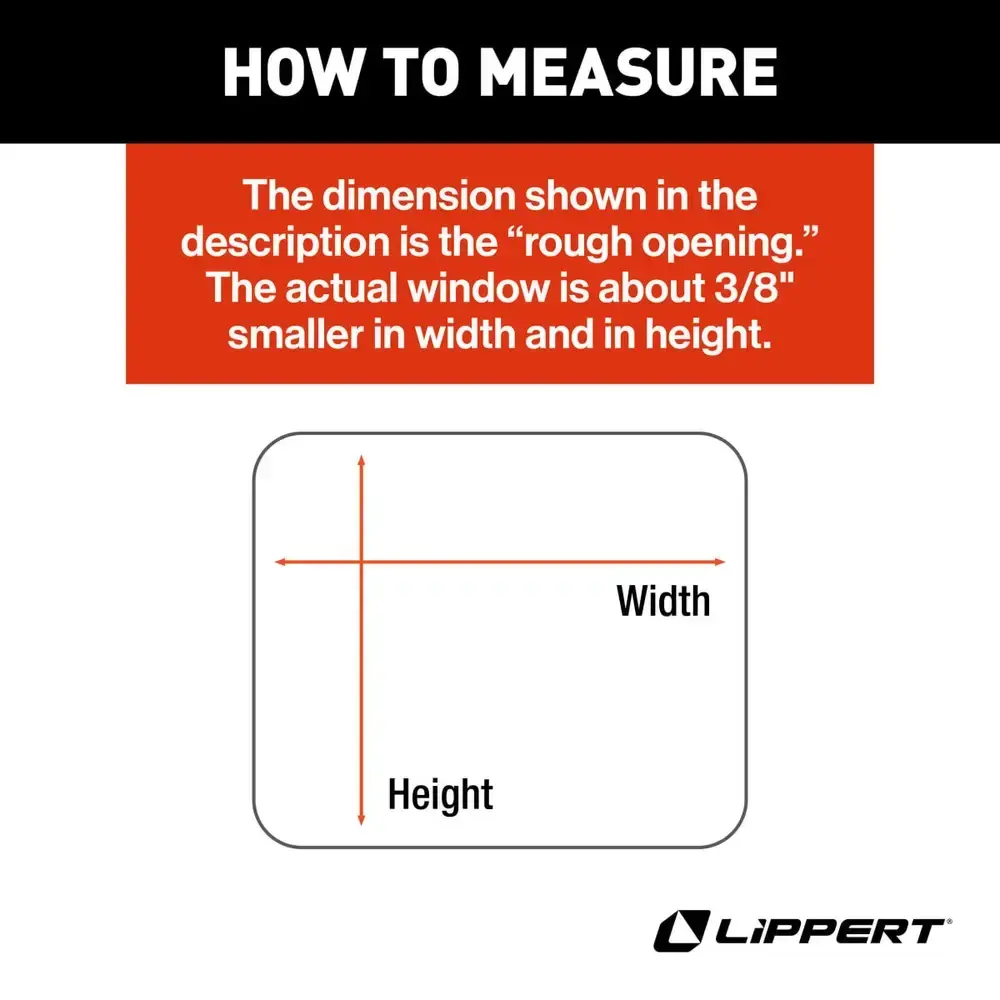

Measure carefully before installation; actual window dimensions are approximately 3/8" smaller than the rough opening.
Small gaps between trim ring and window frame on thicker walls are acceptable if not visible.
Multiple sizes, frame options, glass types, and slider styles are available for a wide range of RVs.
