( 36-1/2" X 16" ) - VWD Overlander Awning Van Bunk Window

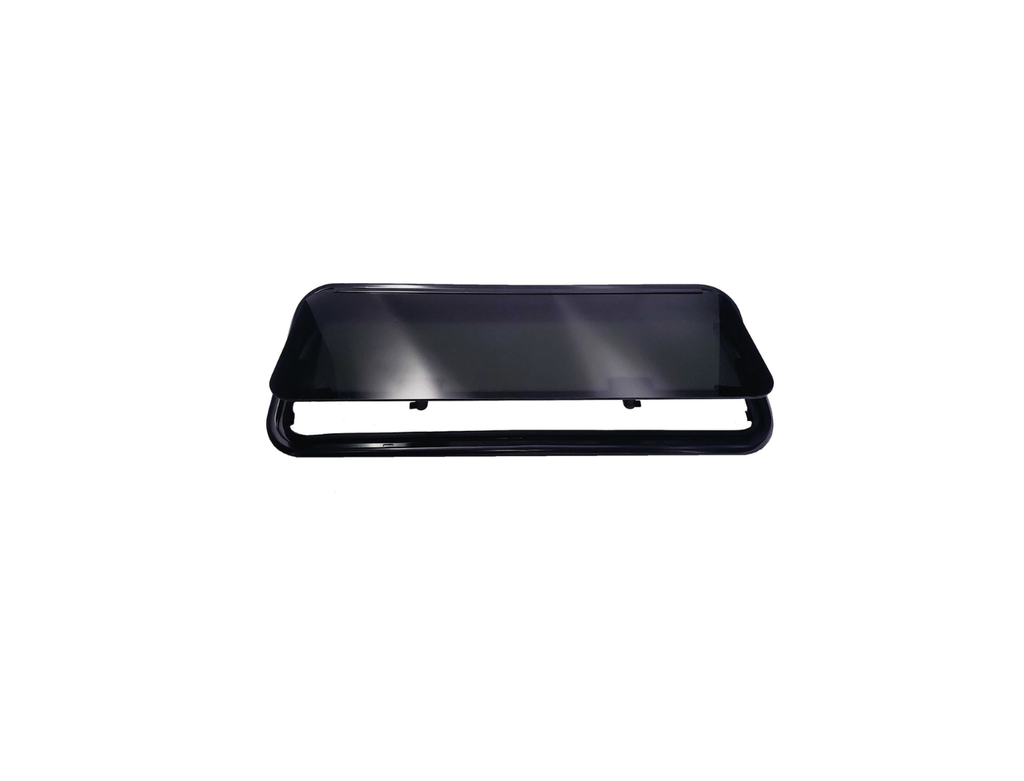

VWD Overlander Awning Van Bunk Window OVR-AW3515 (36-1/2" x 16")

The VWD Overlander Series Awning Van Bunk Window (OVR-AW3515) is designed to enhance ventilation, comfort, and privacy in camper van conversions. Built for bunk and sleeping areas, this awning-style window delivers reliable airflow while maintaining protection from rain, wind, and harsh sunlight.

Featuring solar privacy glass, a dual-stage awning opening, and a clamp-ring installation system, this window offers a clean, modern aesthetic combined with practical all-weather performance for van life and overland travel.

Features

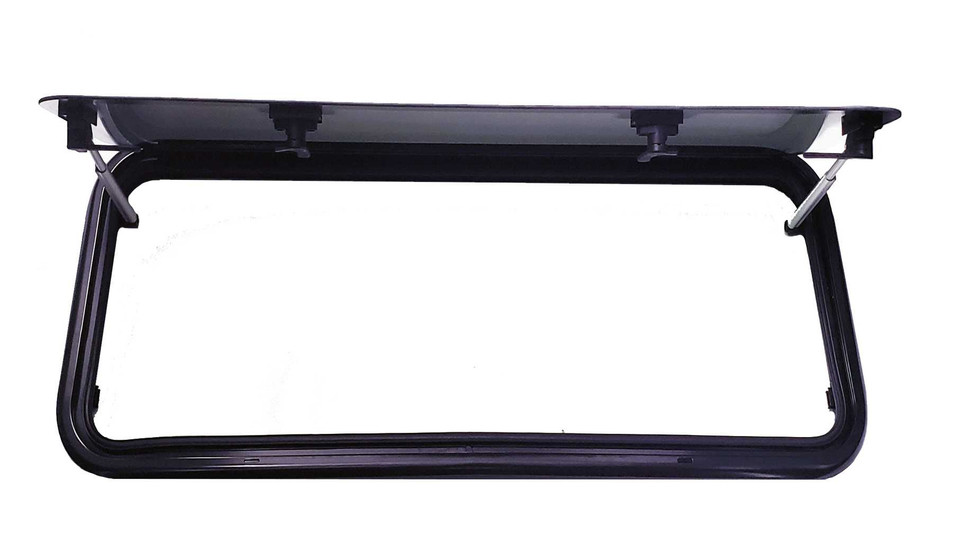

• 2-stage awning design for adjustable airflow and ventilation control

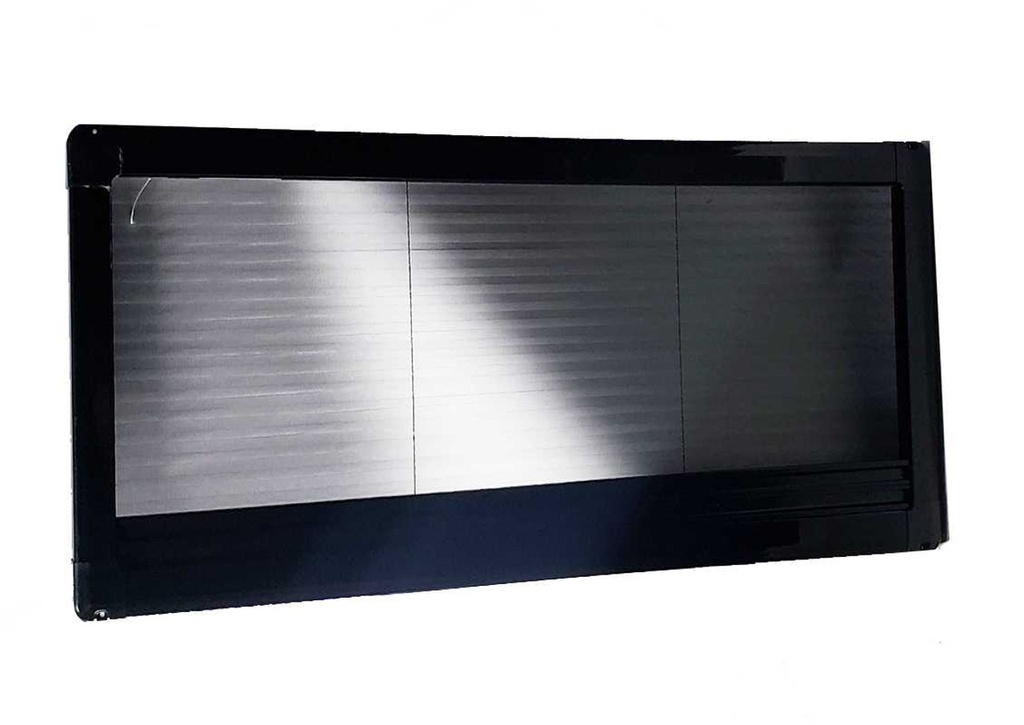

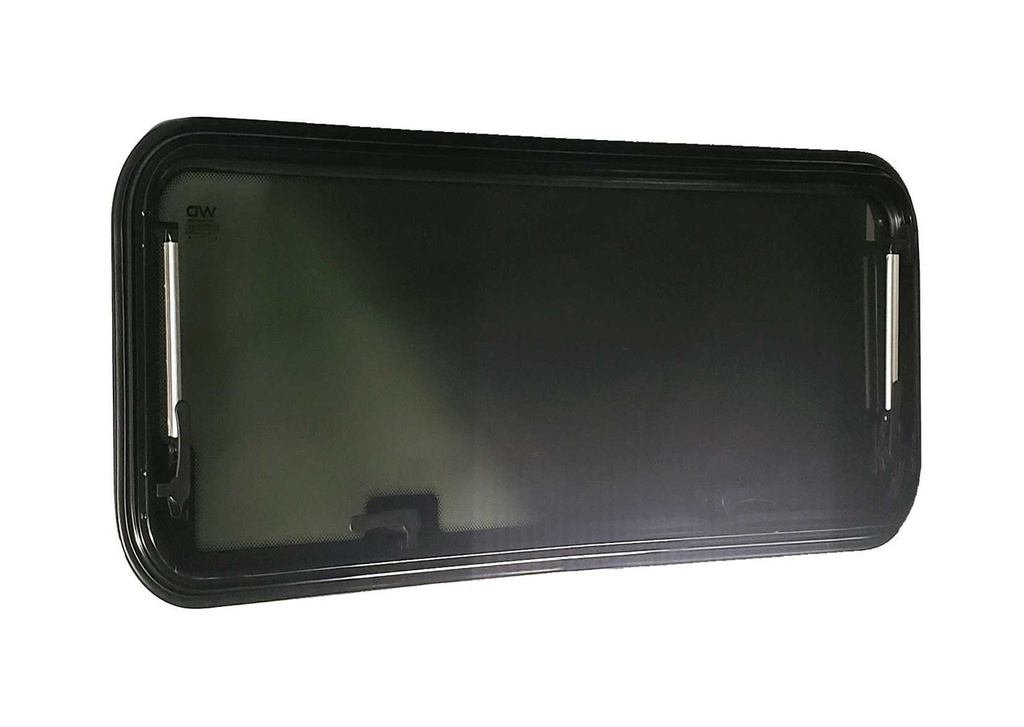

• Solar privacy glass with 17% visible light transmission for UV protection and reduced glare

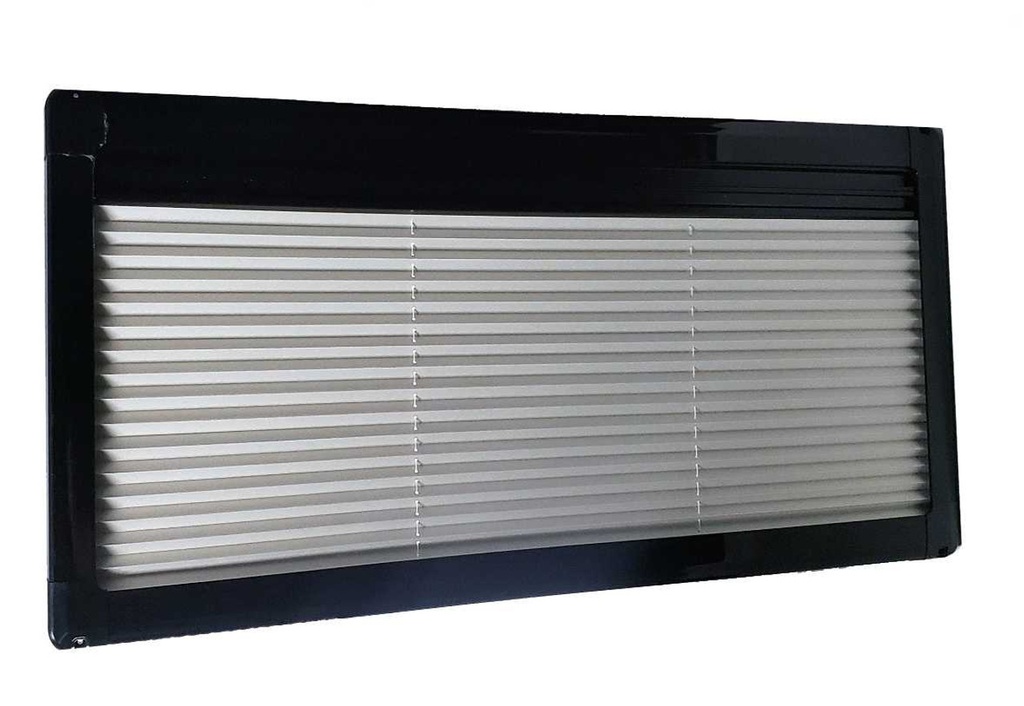

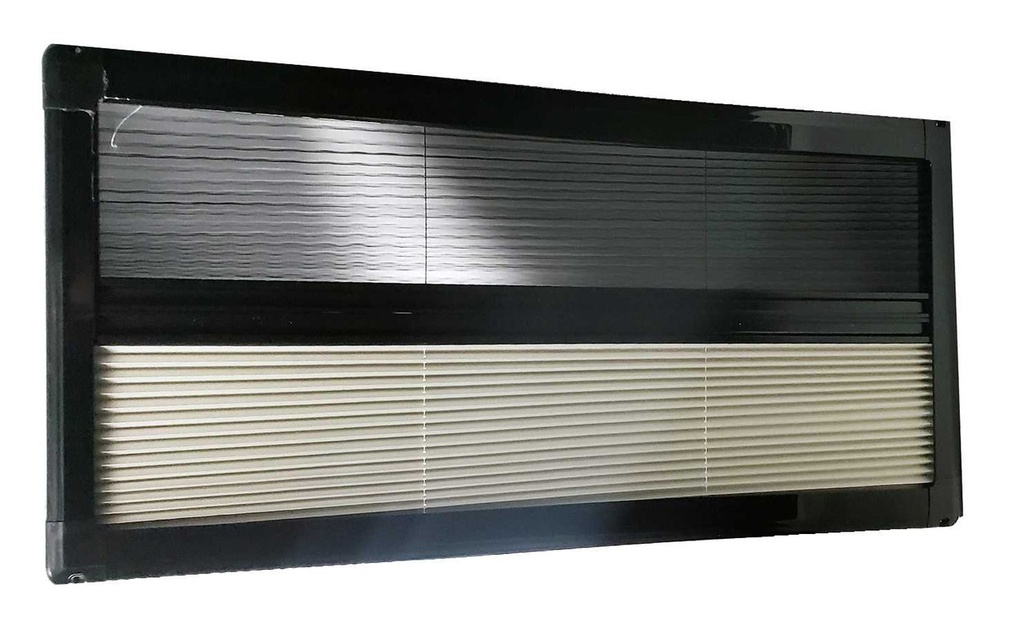

• Integrated bug screen and pleated shade combination for ventilation and privacy

• Clamp-ring installation system for a secure, watertight fit without adhesives

• Durable foam seal for improved insulation and year-round comfort

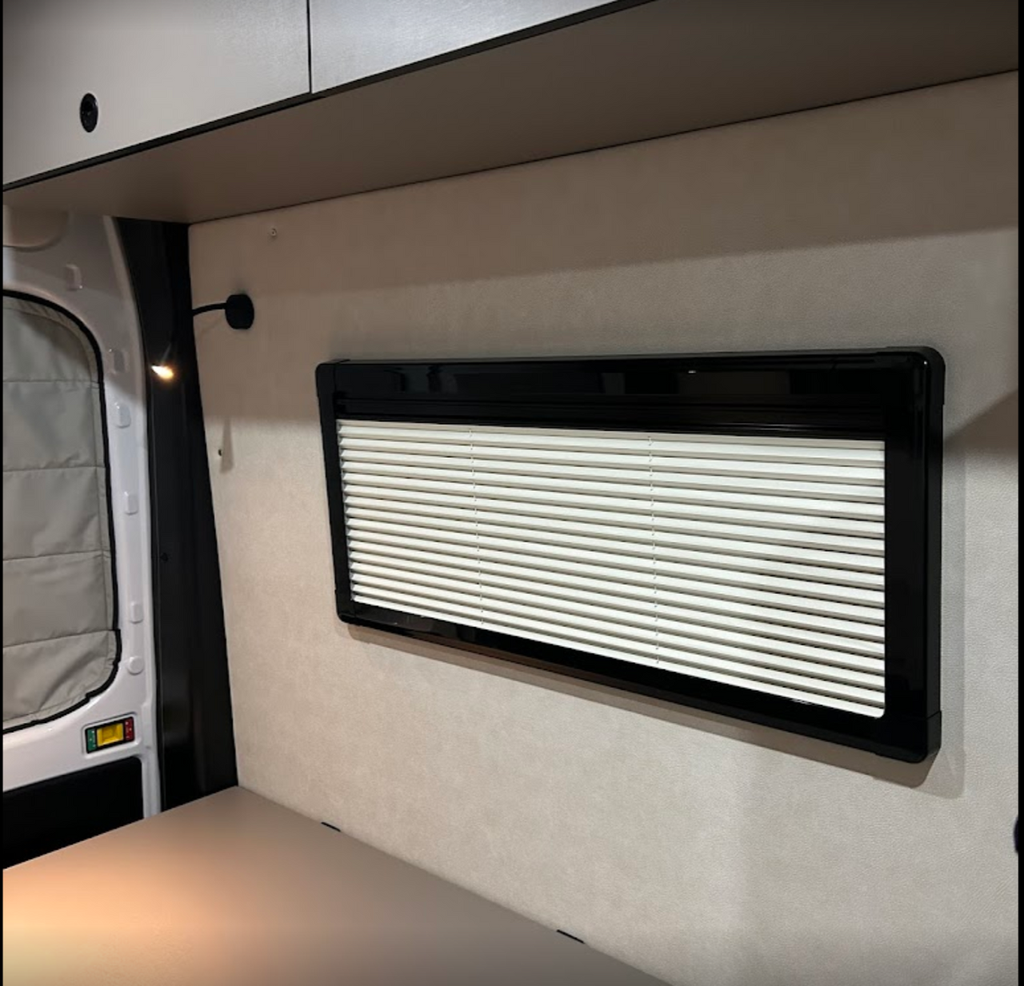

• Optimized for bunk and sleeping area installations

• Sleek, modern frameless-style exterior design

• Manufactured in China

• Backed by a 1-year warranty

Specifications

• Model: OVR-AW3515

• Window type: Awning Van Bunk Window

• Outside frame dimensions: 36-1/2" x 16"

• Cut-out dimensions: 35-3/8" x 15"

• Vent opening dimensions: 33" x 12-3/8"

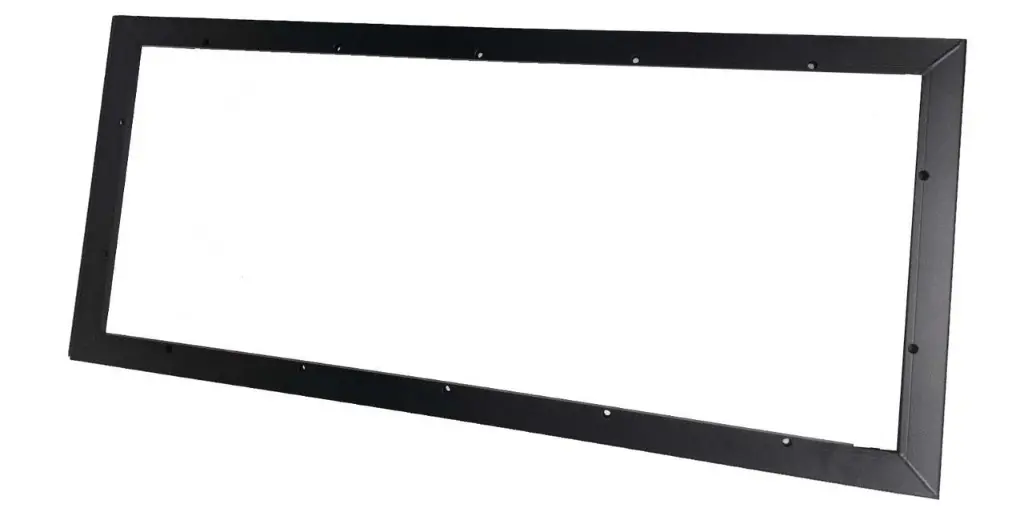

• Clamp ring wall depth: 3/4" or 1-1/8"

• Glass type: Solar Privacy Glass

• Installation type: Clamp Ring

• Warranty: 1 Year

• Country of manufacture: China

Compatibility & Installation

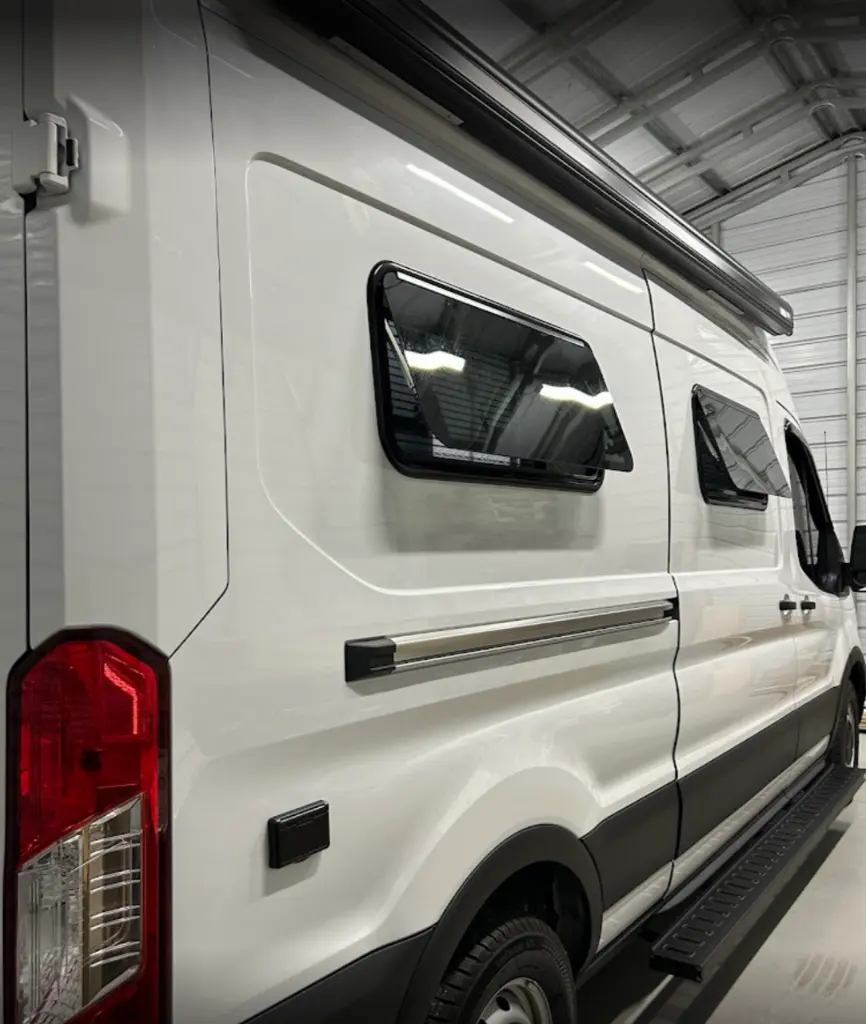

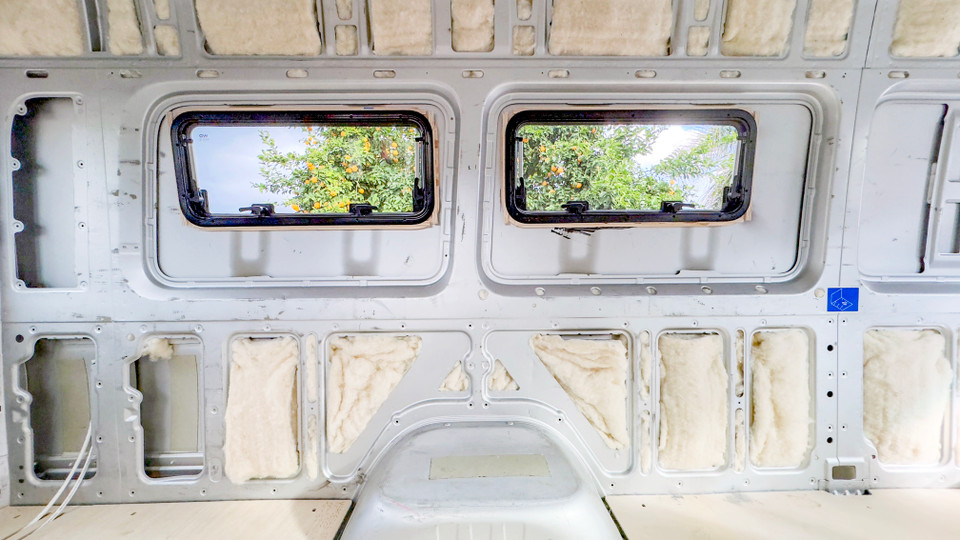

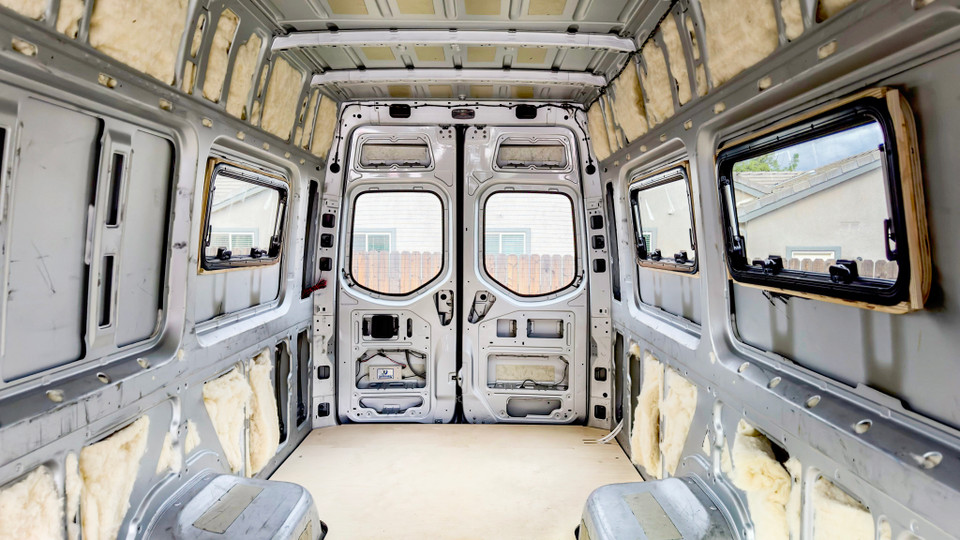

• Universal fit for camper vans, conversion builds, and off-grid vehicle projects

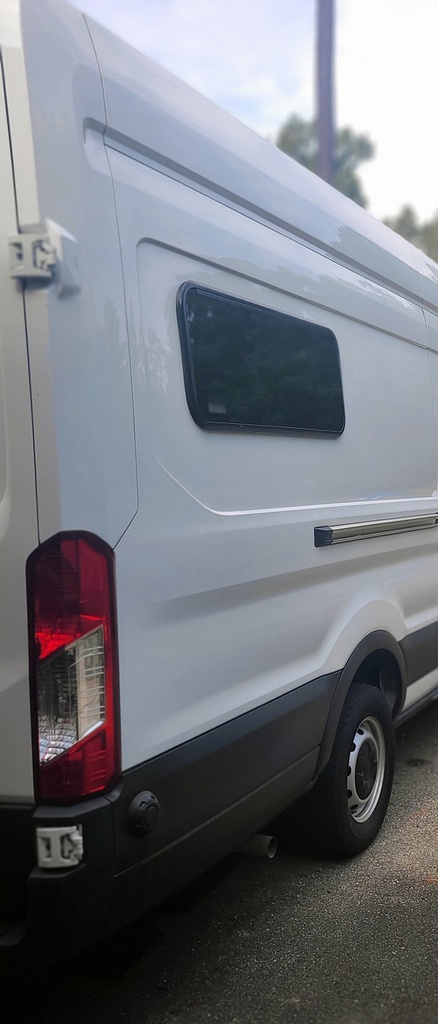

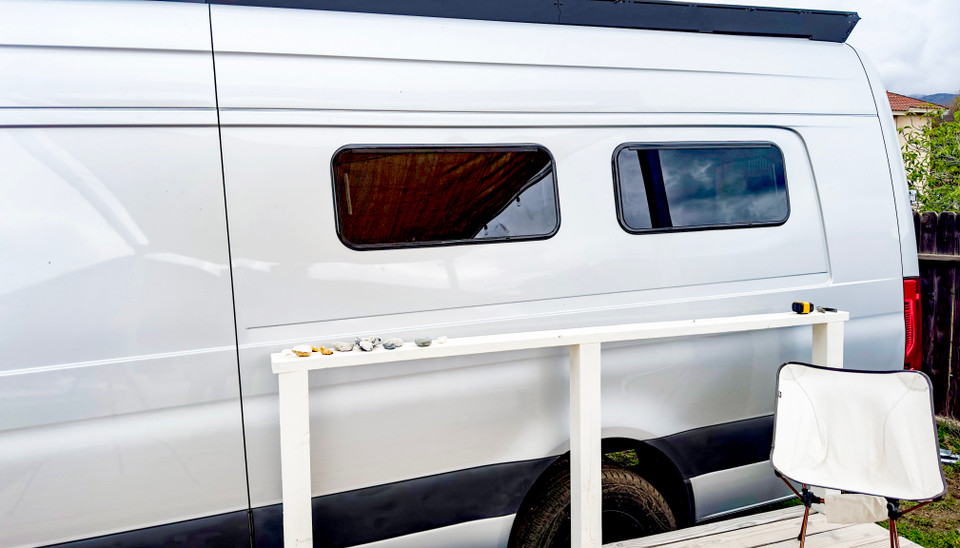

• Ideal for bunk areas, sleeping zones, and side wall ventilation

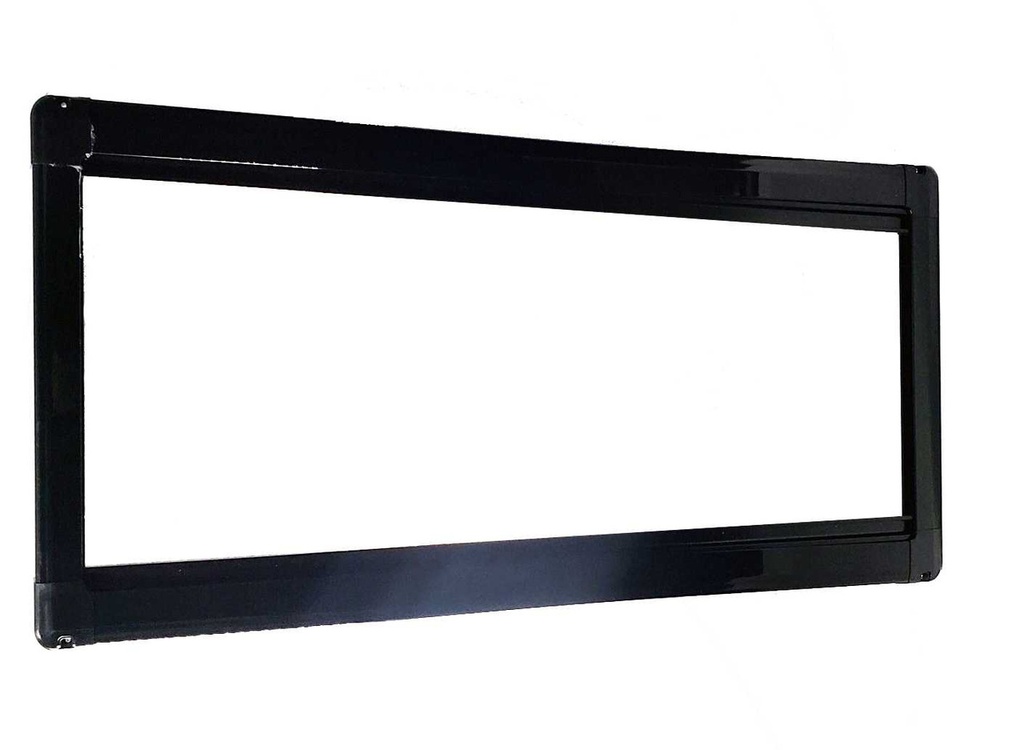

• Clamp-ring system ensures a tight seal and simplified installation process

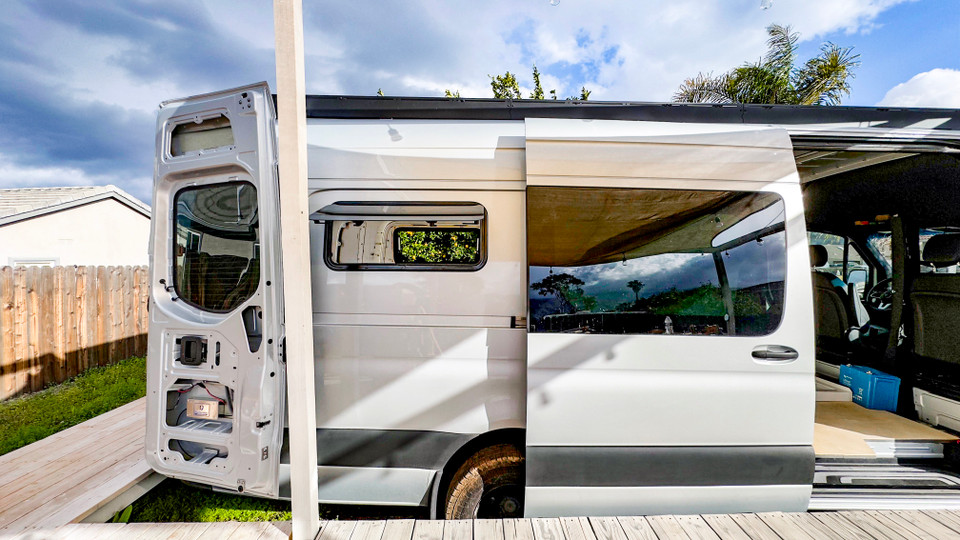

• Not recommended for installation behind sliding doors due to clearance constraints

Important notice ! ! !

Delivery delays may apply. If the window is not in stock, a minimum delivery time of 2 to 3 weeks is required, subject to supplier availability.

It is the customer’s responsibility to contact us to verify item availability prior to purchase.

In the event of an unjustified refund request, a 15% fee may be charged.

At Canada RV, we apply the supplier's warranty.
