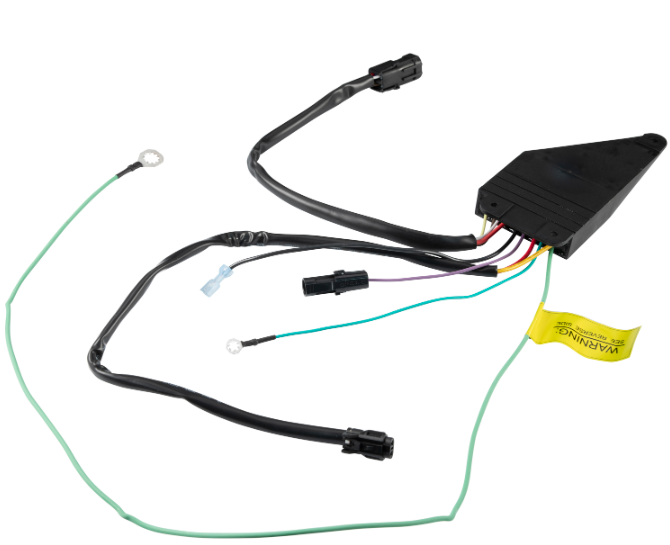

9510 Control For IMGL/9510 Control Steps
Specifications
- Application: Electric RV step control systems
- Compatibility: IMGL step units (2006–present)
- Supported step configurations: Single, double, and triple steps
- Supported step series: 22, 23, 24, 25, 26, 28, 30, 31, 32, 33, 34, 35, 36, 38, 39, 40 series
- Gear linkage types: IMGL A, IMGL B, IMGL C
- Quantity: 1 unit
- Unit of measure: Each (EA)
- Fitment: Application-specific (non-universal)
- Country of origin: USA
- Reference number: 909510000
- Replaces: 909506000
- Shipping dimensions: 9 in L x 5.5 in W x 3.75 in H
- Weight: 1.1 lb
RV Step Control Unit – 9510 Replacement for Electric Steps
Replacement control module designed to restore automatic operation of electric RV entry steps. Provides reliable extension and retraction when used with magnetic door switch systems, ensuring safe and convenient access to your RV.
Features
- Automatic step control extends and retracts steps based on door position
- Exact-match replacement unit for seamless installation and system compatibility
- Designed for magnetic door switch systems to enable automatic operation
- Restores original step functionality without complex modifications
- Compatible with IMGL step configurations for consistent performance
- Direct replacement for older control units (supersedes previous versions)
Included Components
- 9510 control unit module
Warranty
- 1-year limited warranty covering defects in materials and workmanship
- Designed for standard RV step system use under normal operating conditions
