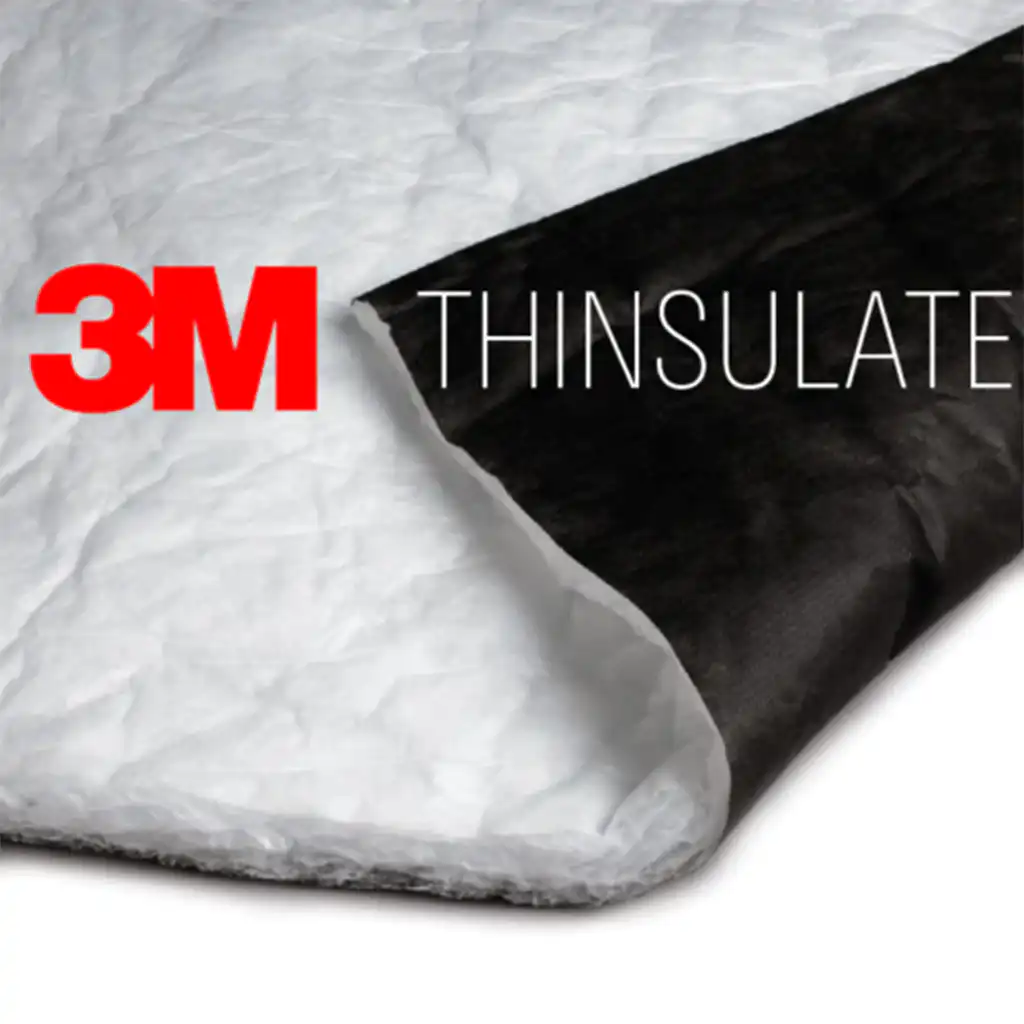

3M™ Thinsulate™ SM600L Acoustic Thermal Insulation
SKU:
2022323582
3M™ Thinsulate™ SM600L Acoustic & Thermal Insulation
Improve comfort, reduce noise, and optimize thermal performance with 3M™ Thinsulate™ SM600L Acoustic & Thermal Insulation. Engineered specifically for vehicle applications, this lightweight insulation solution delivers excellent sound absorption, moisture resistance, and thermal efficiency while remaining easy to install.
Supplied in a compressed format for shipping efficiency, the material naturally expands after installation to fill available cavities without applying pressure that could distort interior panels.
Features
- Vehicle-specific insulation: Designed for van, camper, and automotive applications
- Acoustic & thermal performance: Reduces noise while helping maintain interior temperatures
- Lightweight construction: Supports weight-conscious vehicle builds
- Superior sound absorption: Delivers high acoustic performance relative to material weight
- Moisture resistant: Hydrophobic fibers resist moisture, mold, and mildew
- Expandable design: Ships compressed and expands naturally after installation
- Non-pressure expansion: Expands only to available space without warping trim panels
- Fire resistant: Certified to FMVSS 302 vehicle safety standards
- Compatible with layered insulation systems: Recommended for use with DUCK Liner for enhanced insulation and condensation control
Materials & Construction
- Material type: Non-woven acoustic and thermal insulation
- Composition: Polyester and polypropylene fibers
- Surface finish: Protective scrim backing on one side
- Installation recommendation: Apply the white fiber side toward the van body or DUCK Liner
- Recommended adhesive: 3M™ 90 Spray Adhesive
- Expansion behavior: Material expands progressively with time, heat exposure, and normal vehicle vibration
Specifications
- Product: 3M™ Thinsulate™ SM600L
- Roll width: 60" (152 cm)
- Coverage: 1 linear foot = 5 sq.ft. (0.46 m²)
- Compressed thickness: Approximately 3/4"–1" (19–25 mm)
- Expanded thickness: Standard 44 mm (1.75")
- Maximum expansion: Up to 2" (50 mm) depending on installation space
- Certification: FMVSS 302
Recommended Coverage
Mercedes Sprinter
- 144": Approx. 50 linear feet
- 170": Approx. 60 linear feet
- 170" Extended: Approx. 70 linear feet
Ford Transit
- 130": Approx. 40 linear feet
- 148": Approx. 50 linear feet
- 148" Extended: Approx. 60 linear feet
Ram ProMaster
- 136": Approx. 40 linear feet
- 159": Approx. 50 linear feet
- 159" Extended: Approx. 60 linear feet
Compatibility & Installation
- Coverage estimates include sliding door and rear door windows
- Add approximately +10 linear feet for full coverage on vans without windows
- Install while compressed and allow material to expand in place for easier handling
- Ideal for walls, ceiling cavities, doors, and vehicle insulation projects
| Dimension | 5 Linear Feet or 10 Linear Feet or 15 Linear Feet or 20 Linear Feet or 25 Linear Feet or 30 Linear Feet or 35 Linear Feet or 40 Linear Feet or 45 Linear Feet or 50 Linear Feet or 55 Linear Feet or 60 Linear Feet or 65 Linear Feet or 70 Linear Feet |
| Installation Services | I would like it installed ( Give us a call or an Email ) or I will do it Myself |
