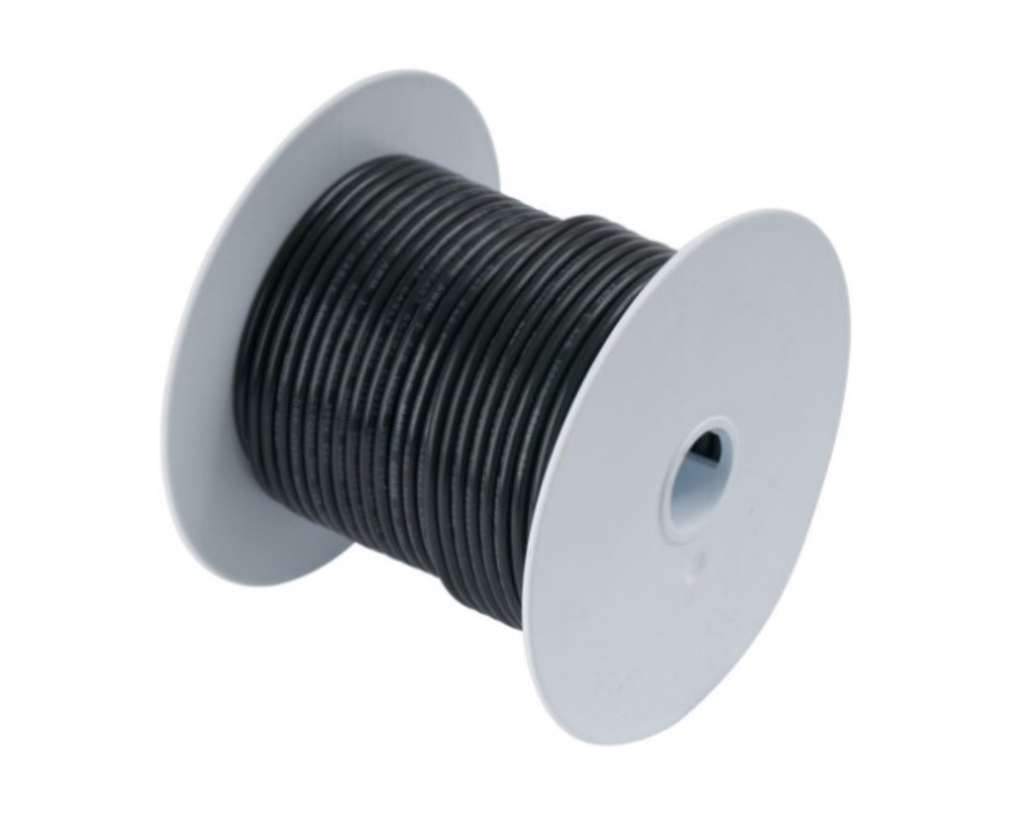

4/0 AWG Tinned Copper Battery Cable is designed for heavy-duty battery connections and high-current electrical installations in marine and RV applications. It features ultra-flexible, Type III stranded tinned copper conductors that provide excellent corrosion resistance and help withstand vibration and repeated flexing.
FEATURES
Fine-stranded, tinned copper conductor for improved corrosion and electrolysis resistance
Ultra-flexible Type III construction helps reduce fatigue caused by vibration and movement
Premium vinyl insulation remains flexible in extreme cold
Insulation resists salt water, battery acid, oil, gasoline, heat, abrasion and UV exposure
Suitable for demanding marine and mobile electrical installations
SPECIFICATIONS
Wire size: 4/0 AWG (107.2 mm²)
Conductor material: Tinned copper
Stranding: 2,109 strands of 30 AWG
Nominal outside diameter: 13/16 in (20.6 mm)
Voltage rating: 600 V
Temperature rating: 105°C dry / 75°C wet
Resistance: 0.049 ohms per 1,000 ft
Weight: 837 lb / 1,000 ft (380 kg / 1,000 ft)
