Victron Energy Smart Battery Sense | SBS050150200

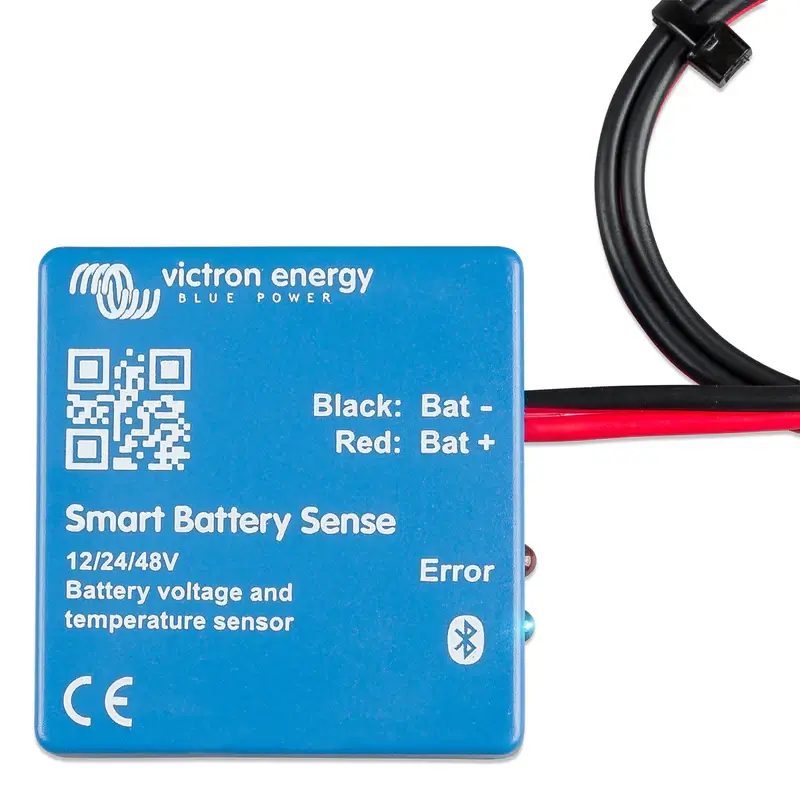

Victron Energy Smart Battery Sense (SBS050150200)

Wireless Voltage & Temperature Sensor for Victron MPPT Solar Chargers

The Victron Smart Battery Sense is a wireless battery voltage and temperature sensor designed to optimize charging performance when used with Victron MPPT solar chargers. By measuring conditions directly at the battery bank, it ensures accurate charging, improved efficiency, and extended battery life.

Key Benefits

• Improved Battery Charging Accuracy: Measures voltage directly at the battery terminals to eliminate errors caused by cable voltage drop

• Temperature-Compensated Charging: Adjusts charge voltages based on real battery temperature

• Extends Battery Life: Prevents under- or over-charging caused by incorrect voltage readings

• Wireless Operation: No data cables required between battery and solar charger

Smart Temperature Protection

• Lead-Acid Batteries:

  • Increases charge voltage when batteries are cold

  • Reduces charge voltage when batteries are hot

• Lithium Batteries:

  • Disables charging when batteries are too cold

  • Prevents permanent cell damage caused by charging near or below freezing

VE.Smart Network (Bluetooth)

• Communicates wirelessly via VE.Smart Network using Bluetooth Smart

• Shares voltage and temperature data with one or multiple Victron MPPT chargers

• Compatible with 12V, 24V, and 48V battery systems

• Configuration and monitoring via the VictronConnect app

Simple & Clean Installation

• Connects directly to battery terminals using two eyelets

• Mounts securely to the battery using the integrated self-adhesive strip

• No additional wiring required

Specifications

• Model: SBS050150200

• Function: Battery voltage and temperature sensing

• Compatibility: Victron MPPT Solar Chargers with VE.Smart support

• Communication: Bluetooth (VE.Smart Network)
