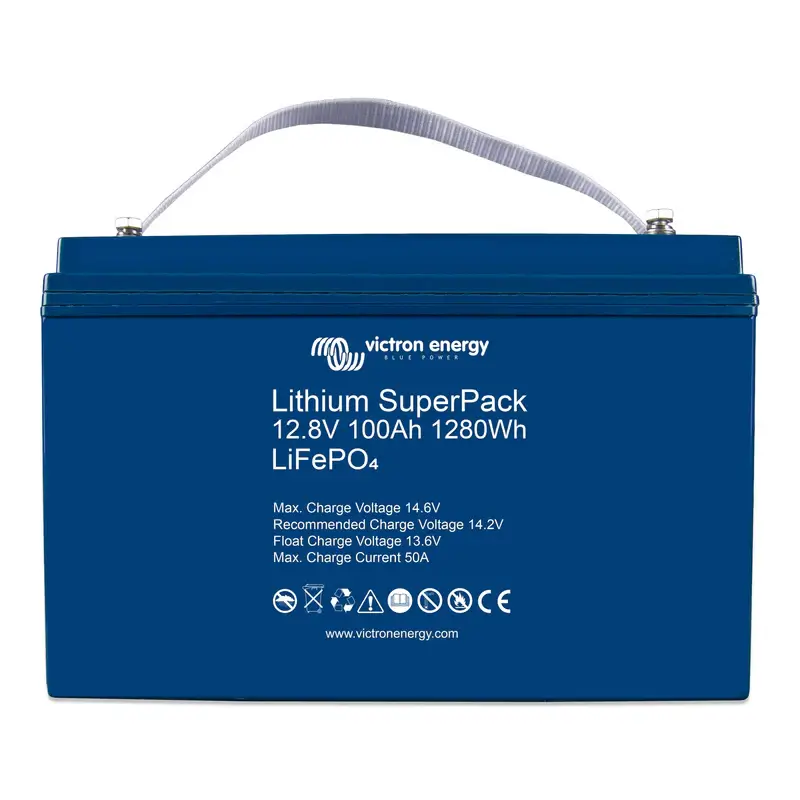

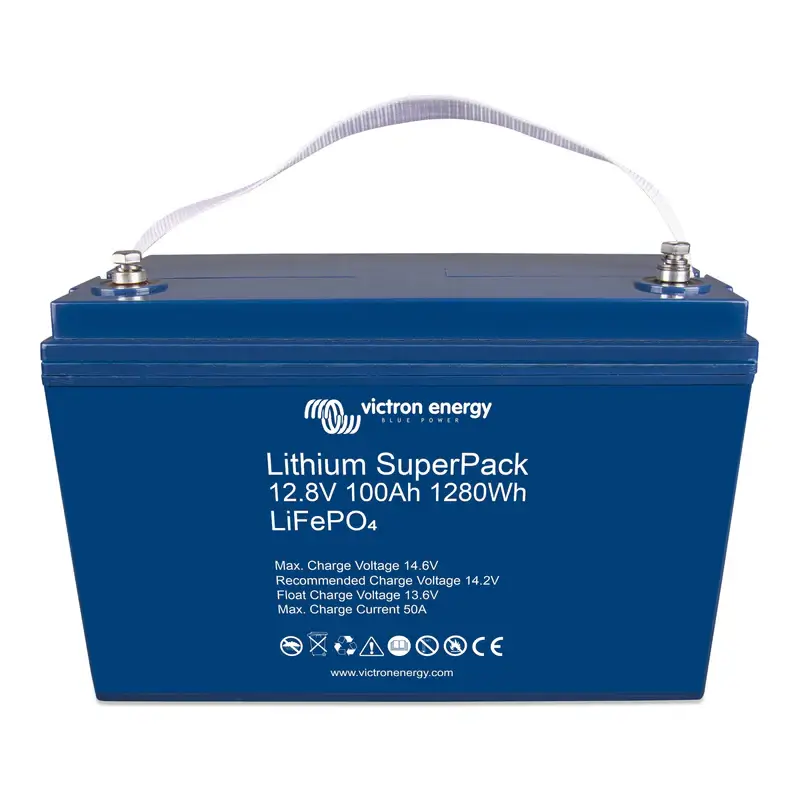

Victron Energy – 12V/100Ah High Current Lithium SuperPack Battery - Group 31

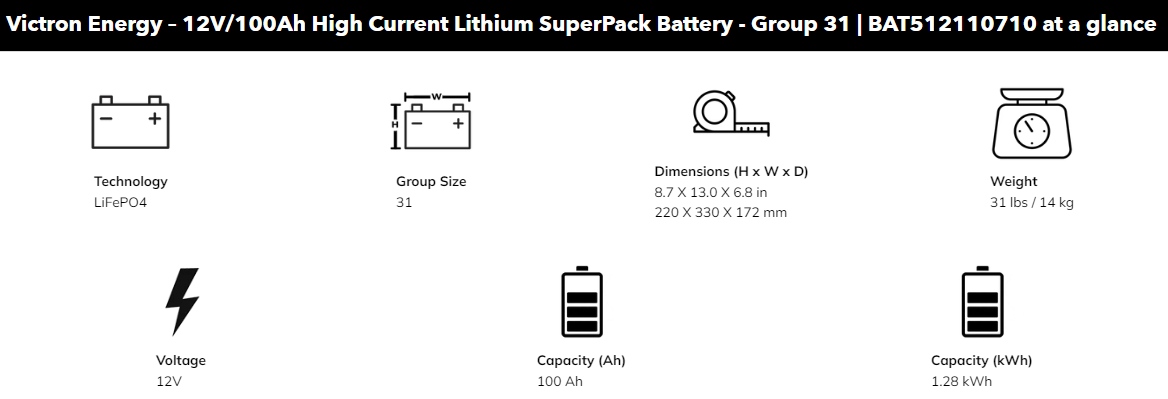

Technical Specifications

Victron SuperPack Lithium Battery – Plug-and-Play LiFePO₄ Power with Built-In Safety

The Victron SuperPack battery offers a hassle-free, high-performance energy storage solution with a built-in BMS and safety switch. Designed for easy installation and optimal efficiency, it's ideal for off-grid, RV, marine, and backup power systems.

Key Features

✔ Easy Installation – No Extra Components Needed

• Fully integrated Battery Management System (BMS)
• Built-in safety switch disconnects automatically in case of:
  • Overcharge or over-discharge
  • High or low temperature
• No external monitoring, relays, or fuses required

✔ Abuse-Proof Lithium Technology

• Cuts off charging or discharging if safety limits are exceeded
• Unlike lead-acid, LiFePO₄ batteries thrive under partial charge
• No sulfation or damage from deep discharge or extended idle use
• Longer service life and improved resilience in demanding applications

✔ Superior Efficiency

• Up to 92% round-trip efficiency, compared to ~80% for lead-acid
• Stays efficient even at high state-of-charge
• Ideal for solar and off-grid systems where energy efficiency is critical
  • Lead-acid can drop to 50% efficiency near full charge
  • SuperPack remains ~90% efficient even under shallow discharges

✔ Parallel-Ready

• Supports parallel connection for capacity expansion
• Series connection is not allowed

✔ Compact, Maintenance-Free Design

• Use in upright position only
• No maintenance or venting required

Ideal For:

• Off-grid solar installations
• RV and vanlife energy systems
• Marine power banks
• Home battery backup setups
