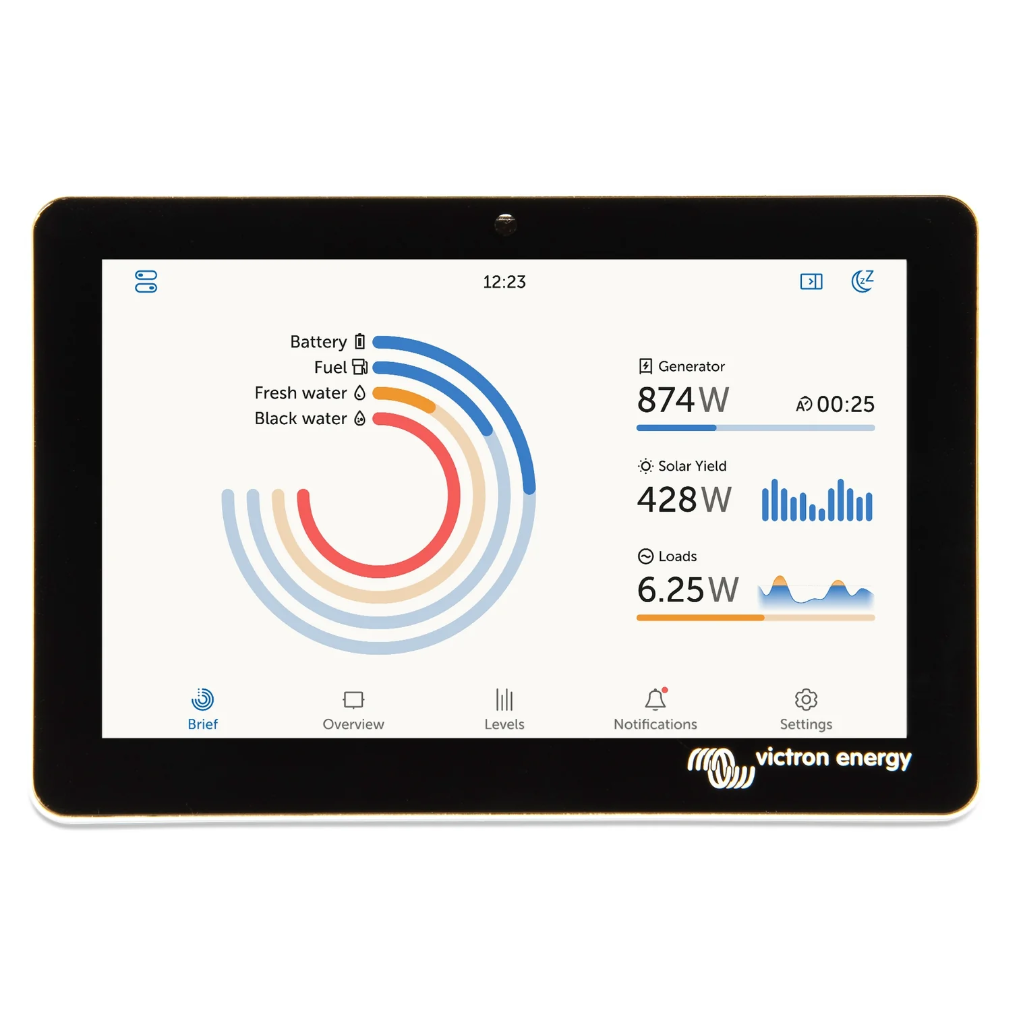

Victron Energy GX Touch 50

Victron Energy Cerbo GX Introduction

The Victron Energy GX Touch 50 is a 5-inch touchscreen display designed for the Cerbo GX monitoring system. It provides an at-a-glance view of your energy system and allows you to access and adjust settings directly from the screen. Its slim design and simple cable connection make it easy to integrate into an RV, boat, or off-grid system.

FEATURES

• Display: 5-inch touchscreen

• Resolution: 800 × 480 pixels

• Compatibility: Victron Cerbo GX

• Connection: Combined HDMI/USB cable

• Cable length: 2m (6.6ft)

• Monitoring: Displays connected system information and allows settings adjustments through the Cerbo GX

• Remote access: Supports monitoring through the Victron Remote Management (VRM) portal and compatible VictronConnect features via the Cerbo GX

• Installation: Front-mounted with included brackets; optional wall-mount accessory available

• Protection rating: IP54, excluding connectors

• Protection cover: Included with newer production versions; availability depends on the unit’s serial number

DIMENSIONS

• Dimensions (H × W × D): 87 × 128 × 12.4mm (3.43 × 5.04 × 0.49in)

COMPATIBILITY

• Designed as a display accessory for the Victron Cerbo GX; it is not a standalone monitoring controller.
