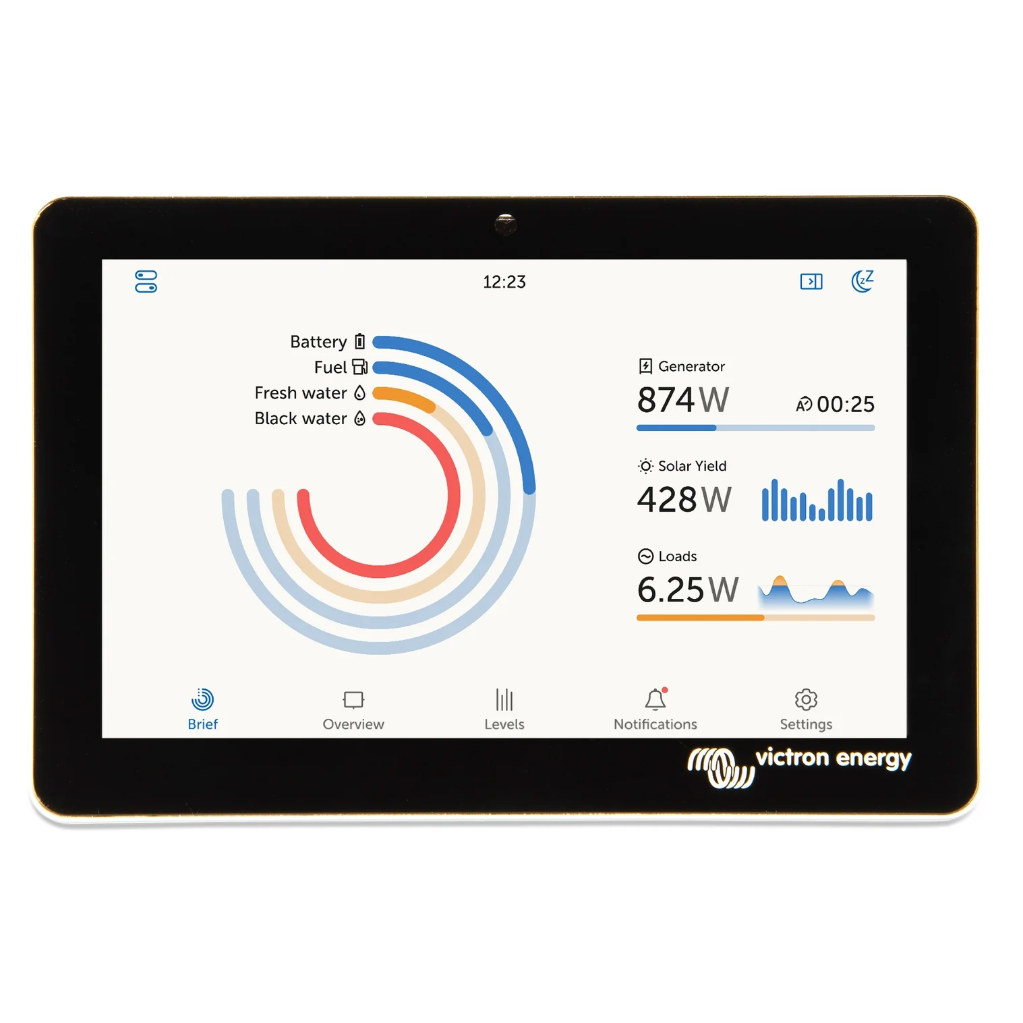

Victron Energy GX Touch 70
SKU:
2022323582
Victron Energy Cerbo GX Introduction
The Victron Energy GX Touch 70 is a 7-inch touchscreen display designed to work with the Cerbo GX monitoring system. It provides a clear interface for viewing energy-system data and accessing settings directly from a dashboard or control panel. Its slim design and single-cable connection simplify installation in RVs, boats, and off-grid power systems.
FEATURES
Display: 7-inch touchscreen
Resolution: 1024 × 600 pixels
Compatibility: Victron Cerbo GX
Connection: Single combined HDMI/USB cable
Monitoring: Displays connected system information and settings through the Cerbo GX
Remote access: Compatible with the Victron Remote Management (VRM) portal and VictronConnect app through the Cerbo GX
Installation: Top-mounted or wall-mounted with the included mounting accessories; no precision dashboard cut-out required
Protection rating: IP54, without connectors
Operating temperature: -20°C to +50°C
Protective cover: Included on applicable production versions
DIMENSIONS
Dimensions (H × W × D): 113 × 176 × 13.5mm (4.45 × 6.93 × 0.53in)
COMPATIBILITY
Designed as a display accessory for the Victron Cerbo GX; it is not a standalone monitoring controller.
