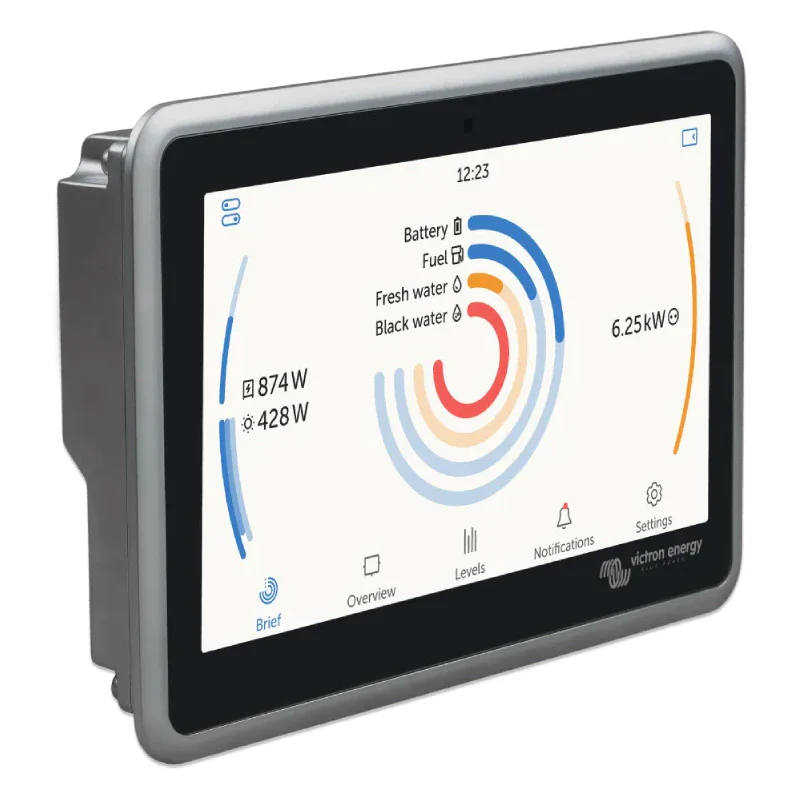

The Victron Energy Ekrano GX is an advanced monitoring and control centre for Victron energy systems. Its built-in 7-inch touchscreen and Venus OS provide real-time system data, centralized control, and remote monitoring through the Victron Remote Management (VRM) portal. With extensive connectivity and flexible mounting options, it integrates with a wide range of Victron components and supported third-party devices.

FEATURES

• Display: Integrated 7-inch touchscreen

• Resolution: 1024 × 600 pixels

• Operating system: Venus OS

• Power supply: 8–70V DC

• Connectivity: Wi-Fi, Ethernet, Bluetooth, USB, VE.Direct, VE.Bus, and VE.Can

• Monitoring: Real-time system data and remote access through the VRM portal

• Inputs: Three resistive tank-level inputs, two temperature inputs, and two digital inputs

• Relays: Two programmable relays

• Expansion: Two USB-A ports and a microSD card slot supporting SDHC cards up to 32GB

• Installation: Flush-mounted or blind-hole mounting; mounting hardware included

• Touchscreen security: Rear button to disable or re-enable touch controls

• Protection rating: Front IP54 with the included steel mounting bracket; rear IP21

• Operating temperature: -20°C to +50°C

DIMENSIONS

• Dimensions (H × W × D): 124 × 187 × 29.8mm (4.88 × 7.36 × 1.17in), excluding connectors and mounting accessories
