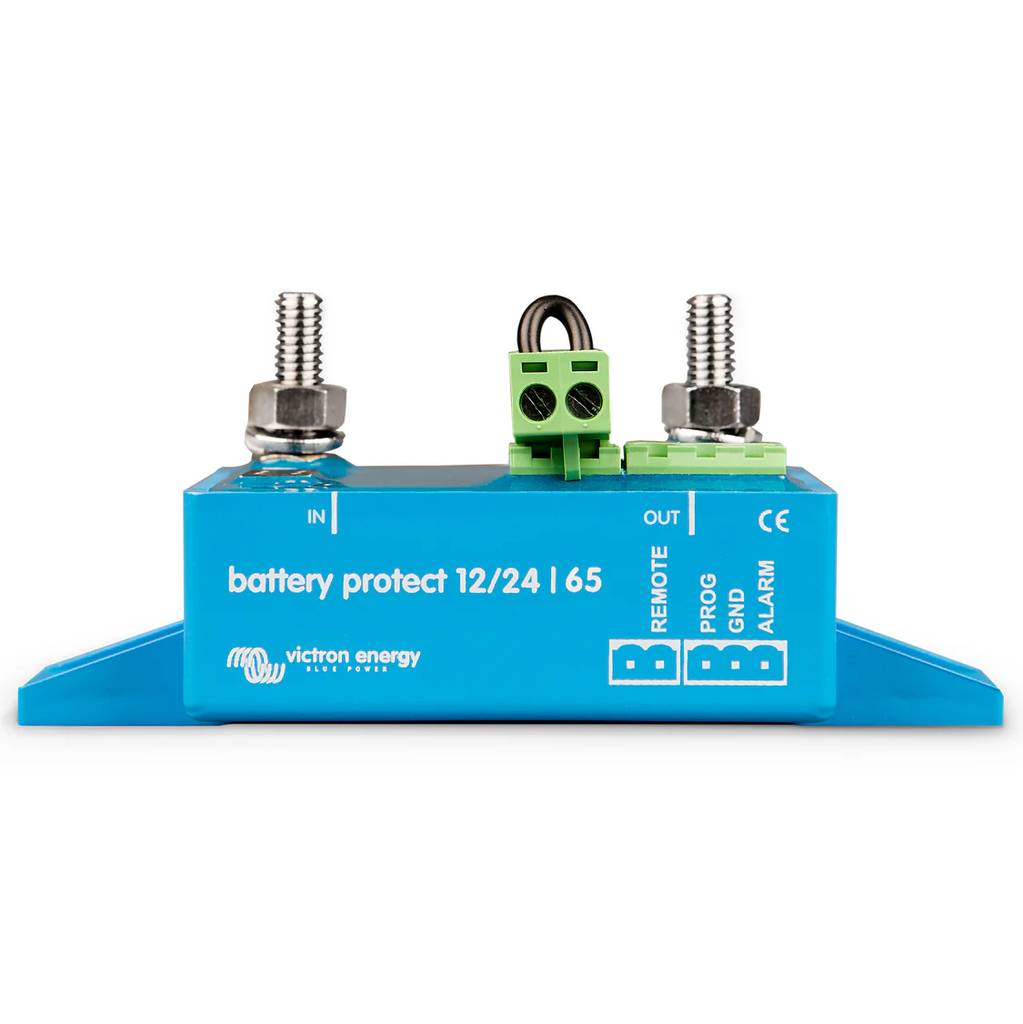

Victron Energy BatteryProtect 12/24V-65A

Victron Energy BatteryProtect 65A – Intelligent Load Disconnect for 12/24V Systems

The Victron Energy BatteryProtect 65A safeguards your battery by disconnecting non-essential loads before the battery is excessively discharged or drops below the level required to crank the engine. This extends battery life and helps prevent costly damage.

Technical Specifications ›

User Manual ›

Key Features:

• Rated for 65 Amps
  Ideal for protecting circuits and batteries in medium-load systems.
• Automatic 12/24V Detection
  Auto-detects system voltage for seamless setup in both 12V and 24V applications.
• Customizable Disconnect/Reconnect Thresholds
  Programmable via a seven-segment display with multiple voltage presets, including a special mode for Li-ion batteries.
• Uni-Directional Current Handling
  Designed to handle current in one direction—either from a battery to a load or from a charger to a battery.
• Li-ion Battery Compatibility
  Integrates with VE.Bus BMS and can serve as a charge interrupter.
• Ultra-Low Standby Consumption
  Helps preserve battery charge, especially critical after low-voltage events.
• Over-Voltage Protection
  Automatically disconnects the load if DC voltage exceeds safe limits.
• Spark-Free MOSFET Switching
  No relays involved—ensures silent, ignition-proof performance.
• Delayed Alarm & Disconnect Logic
  Prevents false alarms during temporary voltage drops, like engine starts.
• Automatic Reconnection
  Reconnects the load 30 seconds after voltage stabilizes above the threshold.
