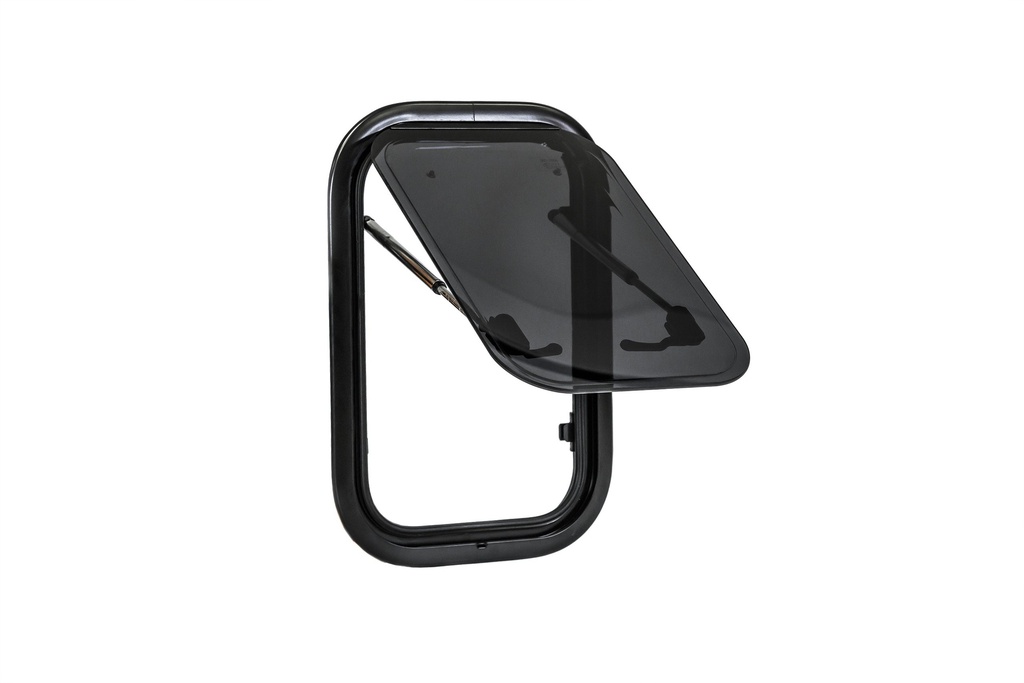

Broad Arrow Flat Dual-Glazed Cassette Window (297 x 447 mm)

The Broad Arrow Flat Dual-Glazed Cassette Window is designed for trailers, box campers, and other flat-wall vehicle conversions requiring insulation, privacy, and integrated ventilation. Its flat-profile design makes it an excellent solution for vehicles with flat exterior surfaces where curved windows are not required.

Featuring DOT-approved dual-glazed acrylic construction, this window includes an integrated bug screen and pleated blind housed within a durable aluminum frame. The included wooden mounting ring simplifies installation while providing a clean, professional finish.

Features

  • DOT-approved dual-glazed acrylic window

  • Flat-profile design for trailers, box campers, and flat-wall applications

  • Integrated cassette system with bug screen and pleated blind

  • Durable aluminum frame construction

  • Includes wooden mounting ring for installation

  • Provides improved insulation and privacy

  • Visible light transmission: 10%

  • Manufactured in China

Specifications

  • Window type: Flat Dual-Glazed Cassette Window

  • Window size (W x H): 297 x 447 mm

  • Cut-out dimensions: 300 x 450 mm

  • Overall dimensions: 327 x 477 mm

  • Interior blind dimensions: 327 x 490 mm

  • Glass type: Dual-Glazed Acrylic

  • Frame material: Aluminum

  • Light transmission: 10%

  • Country of manufacture: China

Compatibility & Installation

  • Designed for flat-wall vehicles, including trailers and box campers

  • Includes wooden mounting ring for secure installation

  • Suitable for sliding door applications when adequate clearance is available

  • Verify clearance between the interior cassette system and any bed pods, flares, extensions, or aftermarket accessories before installation

  • Interior bug screen and pleated blind assembly may interfere with certain vehicle-side modifications

Important notice ! ! !

Delivery delays may apply. If the window is not in stock, a minimum delivery time of 2 to 3 weeks is required, subject to supplier availability.
It is the customer’s responsibility to contact us to verify item availability prior to purchase.
In the event of an unjustified refund request, a 15% fee may be charged.
Installation Services I would like it installed ( Give us a call or an Email ) or I will do it Myself
