Blue Sea

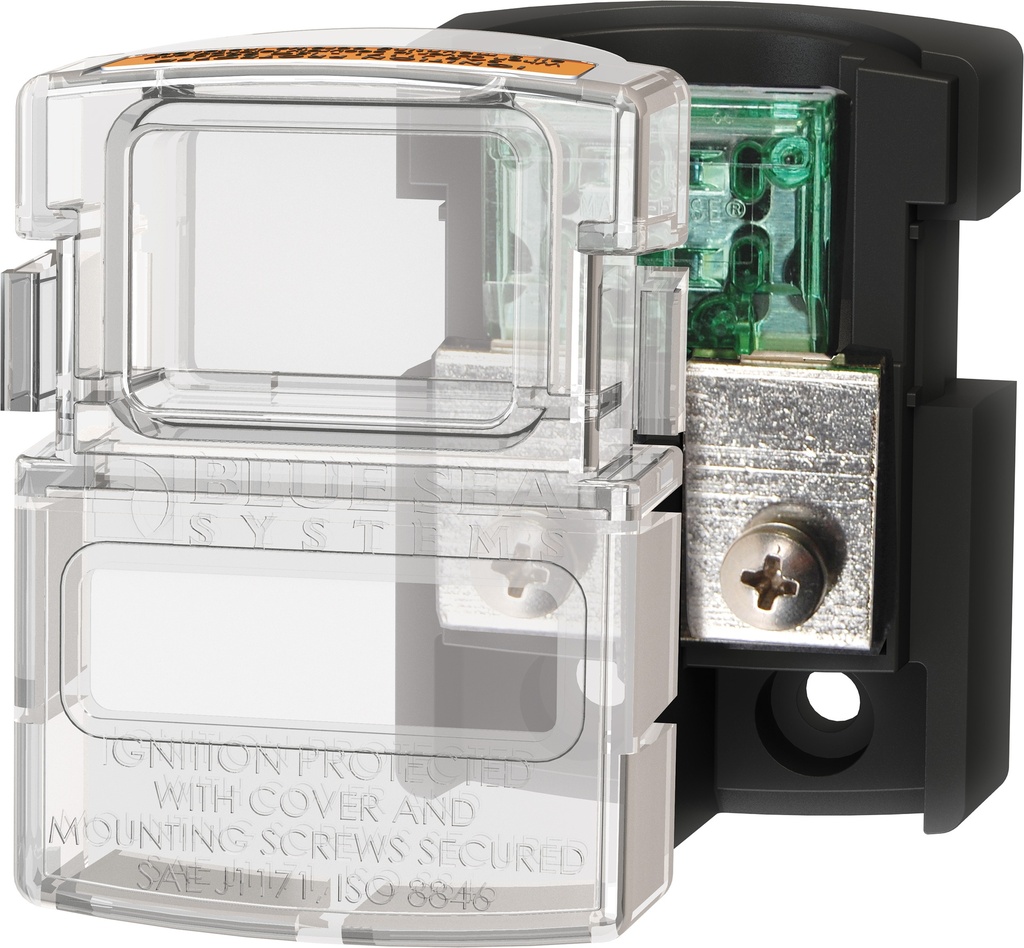

MAXI Fuse Block - BLUE SEA
- Snap-on terminal cover insulates all conductive parts, satisfying ABYC/USCG requirements
- Cover breakouts allow wires from sides or bottom
- Terminal screws compress fuse blades within blocks for low resistance connections
- Ignition Protected
- Label recess accepts large format label
- Fuses sold separately
Specifications | |
---|---|
Maximum Amperage ![]() | 80A |
Maximum Voltage | 32V DC |
Mounting | #10 Screws |
Screw Terminal Torque | 25 in-lb (2.82 Nm) |
Wire Size | 14 - 4 AWG |
Weight | 0.25lb (0.11 kg) |
FUSE:
30A: https://canadarv.com/shop/maxi-fuse-30-amp-blue-sea-5092
40A: https://canadarv.com/shop/bs5139-maxi-fuse-40-amp-blue-sea-5093
50A: https://canadarv.com/shop/bs5140-maxi-fuse-50-amp-blue-sea-5094
60A: https://canadarv.com/shop/bs5141-maxi-fuse-60-amp-blue-sea-5095
70A: https://canadarv.com/shop/bs5142-maxi-fuse-70-amp-blue-sea-5096
80A: https://canadarv.com/shop/bs5143-maxi-fuse-80-amp-blue-sea-5097
