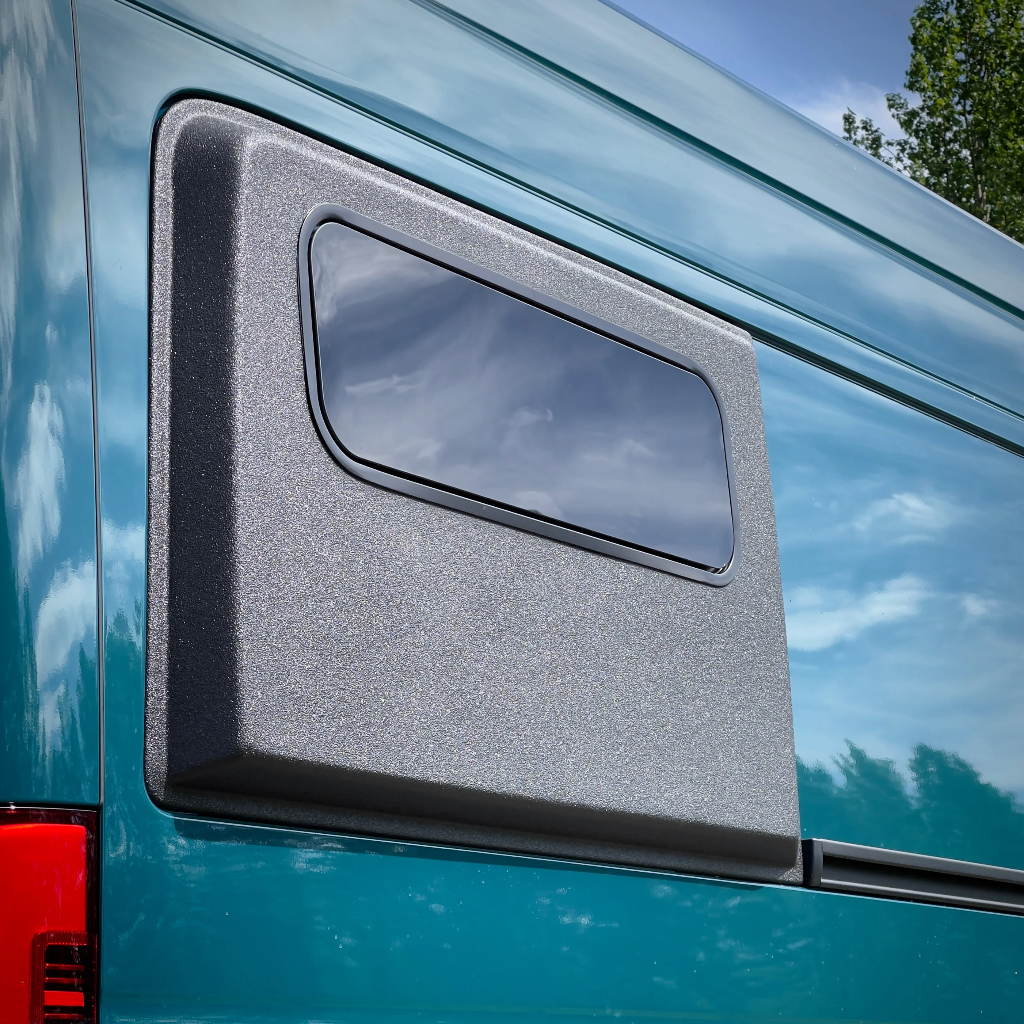

ClimateCore Insulated PODS – Sprinter 170 Regular Depth (Set)
Backland Expedition Gear | Handmade in Canada
Maximize Sleeping Space • Insulate Where It Matters • Year-Round Comfort
Upgrade your Sprinter 170 with ClimateCore Insulated PODS—precision-molded fiberglass bed flares that allow you to sleep sideways while maintaining optimal comfort in all seasons. Featuring R5-rated insulation, these pods regulate interior temperature and reduce condensation, making them ideal for year-round van life.
Whether escaping the cold or staying cool in summer heat, ClimateCore PODS transform your sleeping area into a comfortable, insulated retreat—right where it matters most.
Key Features
R5 Thermal Insulation – 3/4" thick dual-layer fiberglass walls with rigid closed-cell polyiso foam core for superior climate control.
Extended Sleeping Length –
Regular Depth: Interior width for a 77” (195 cm) long bed
Extended Depth Upgrade: Up to 82” (208 cm) bed length
Window Ready – Optional cutouts for windows up to 33" x 15".
(Not compatible with AMA Slider Window 40" x 15” on Extended Depth PODs)
Sliding Door Friendly – Designed with clearance on the passenger side for compatible windows.
Finish-Ready Surface – Sandable exterior gel coat suitable for paint, vinyl wrap, or bed liner for UV protection.
Proudly Canadian – Designed and handcrafted in Alberta with premium materials and expert craftsmanship.
Custom Finish Options
DIY Finish – Unpainted for custom user finishing
INDY Coated – Rugged black urethane protective coating
Colour Match Paint – Matched to your Mercedes paint (custom options available)
Combo – Colour Match + INDY Stone Guard on lower surfaces
What’s in the Box
2 ClimateCore PODs (Driver + Passenger Side)
Primer Sticks
Backland-approved Adhesive
Technical Specifications
Material: Dual-layer fiberglass with embedded closed-cell foam
Wall Thickness: 3/4" (19 mm)
Insulation Rating: R5
Weight: 28 lbs (set)
Fitment: Sprinter 170 (2007–Current)
Regular Depth Set: 77” bed
Extended Depth Set: 82” bed
Important Notes
Exterior Protection Required: Must be finished with paint, wrap, or liner to prevent UV degradation.
Window Compatibility Warning: AMA Slider Windows (40” x 15”) not supported on Extended Depth models.
Lead Times:
DIY Finish: Ships in 3–5 business days
Customized Finish: Ships within 2 weeks
💡 Pro Tip: Pre-cut window openings or installation before shipping are available to save time and effort.
Why Choose ClimateCore PODS?
Insulating your sleeping area is essential for comfort, warmth, and long-term enjoyment on the road. With excellent thermal performance, added space, and durable construction, ClimateCore PODS are the smart upgrade that turns your Sprinter into a true home on wheels.
Sleep better. Travel further. Stay comfortable.
| Finishes | DIY (NO FINISH) or Color match paint (pick up at our warehouse only) or Full INDY Protection |
| Installation Window Into a POD | None or Install on the driver side or Install on the passenger side or Install on both sides |
| Cutout for Window AW1033, VW1033L, VW1033R | None or Cutout for window in a POD - Driver side or Cutout for window in a POD - Passenger side or Cutout for window in a POD - Both sides |
| Window AW1033 | None or AW1033 - Driver side or AW1033 - Passenger side or AW1033 - Both sides |
| Window VW1033 | None or VW1033L - Driver side or VW1033R - Passenger side or VW1033 - Both side |
