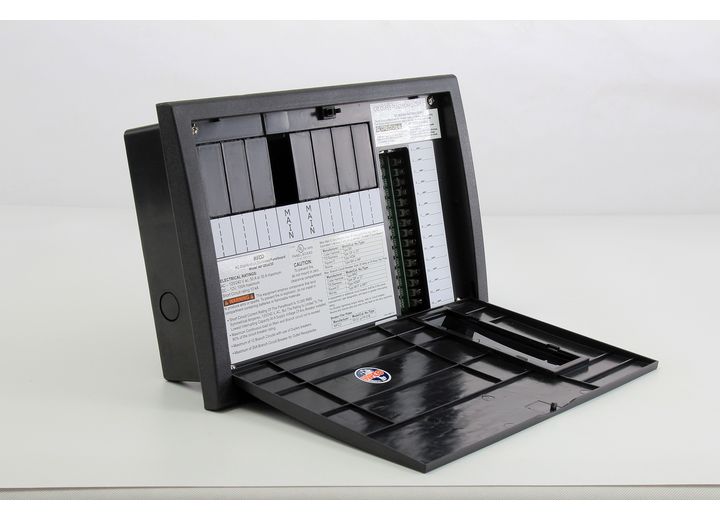

DISTRIBUTION CENTER 30 OR 50 AMP AC SERVICE - 15 DC CIRCUITS - BLACK

FEATURES

  • WFCO Distribution Panel
  • Color: Black
  • Case Material: Plastic
  • AC Service: 30/50 Amps
  • Input Voltage: 120/240 VAC
  • AC Breakers Setup: Main + 12 Branch Circuits
  • DC Circuits (Quantity): 15
  • Outer Dimensions: 13-3/4"W x 9-1/2"H x 4"D
  • Rough Opening: 12-3/16"W x 8-3/16"H x 3"D
  • Certifications: UL and cUL Listed
  • Safety Features/Protections: Over Current, Over Temperature, Over Voltage, Reverse Polarity
  • Specifications are Subject to Change Without Notice or Obligation

- LENGTH 14.00 in.

- WIDTH 10.00 in.

- HEIGHT 7.00 in.

- WEIGHT 4.00 lbs.
