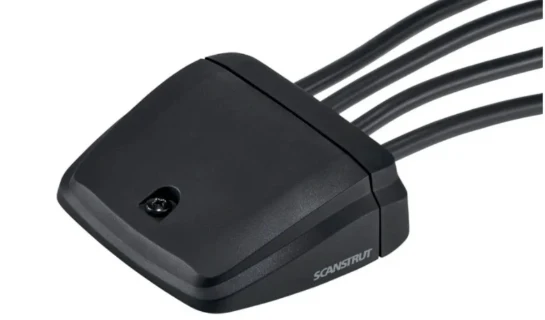

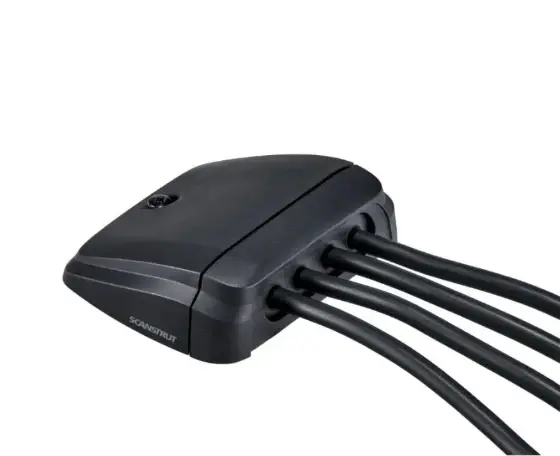

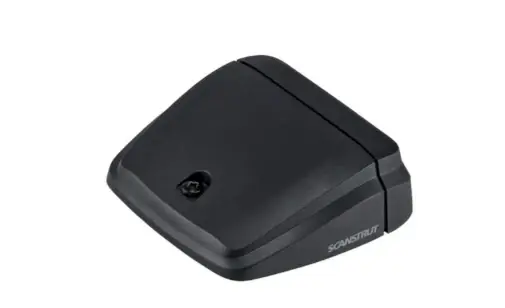

Scanstrut Horizontal Multi-Cable Seal
Click Here To Download Installation Instruction
Low-profile multi-cable seal for rooftop electronics and solar installations
The Horizontal Multi-Cable Seal is a weatherproof cable entry solution designed for routing multiple electrical cables through roofs, walls, and exterior surfaces on camper vans, RVs, boats, and overland vehicles. Its flexible multi-entry design supports clean cable management for solar panels, lighting systems, antennas, and rooftop electronics.
Built with durable marine-grade materials, this compact cable seal delivers a professional waterproof installation while simplifying cable routing in demanding outdoor environments.
FEATURES
- Supports 1 to 4 cables for flexible multi-cable installations
- IP68 waterproof rating protects against water intrusion and moisture
- Compatible with rooftop electronics, solar panels, lighting, and accessory wiring
- Self-drilling design allows quick installation through wood, metal, and fiberglass (GRP)
- Constructed from marine-grade glass-filled nylon for high durability
- UV-stable materials designed for long-term outdoor exposure
- Compact low-profile housing for clean exterior integration

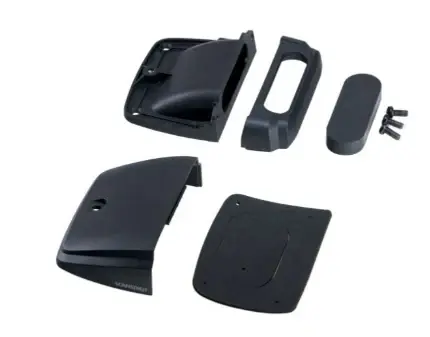

- Captive nut system simplifies assembly and repeat installations
- Helps achieve organized and professional cable routing

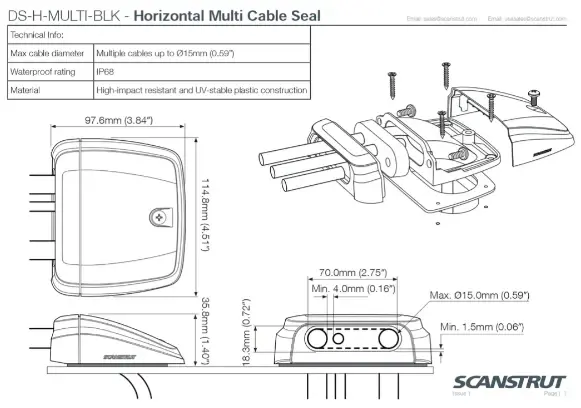

SPECIFICATIONS
- Cable capacity: 1 to 4 cables
- Maximum cable diameter: Up to Ø 0.59"
- Waterproof rating: IP68
- Material: Marine-grade glass-filled nylon
- Installation type: Horizontal surface mount
- Dimensions (mm): 90.9 × 114.5 × 35.5 mm
- Dimensions (in): 3.84" × 4.51" × 1.4"
- Construction: UV-resistant and corrosion-resistant materials
COMPATIBILITY / INSTALLATION
- Designed for camper vans, RVs, marine, and overland applications
- Ideal for routing cables from solar panels, rooftop lights, antennas, and exterior electronics
- Compatible with wood, aluminum, steel, fiberglass, and composite surfaces
- Suitable for DIY or professional installations
- Low-profile design minimizes rooftop obstruction and maintains a clean finish
- Designed for reliable waterproof cable routing in outdoor environments
