EcoFlow Power Link

EcoFlow Power Link

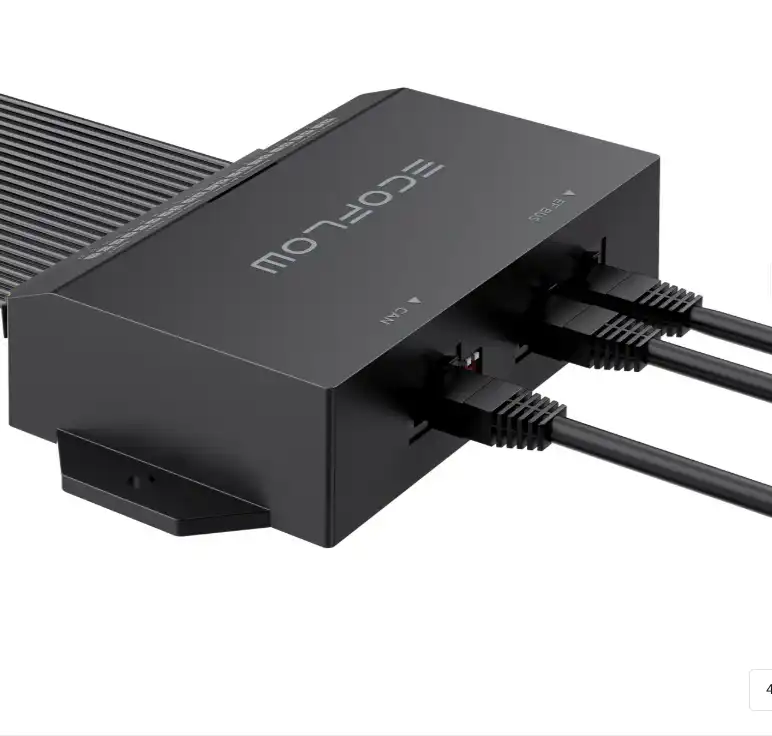

The EcoFlow Power Link is a communication and monitoring interface for EcoFlow Power Kits, allowing sensors, smart distribution panels, and relays to communicate with the EcoFlow Power Hub. When paired with the EcoFlow PowerInsight, Power Kit Console, or the EcoFlow App, it provides centralized monitoring and simplified system calibration for RV, camper van, and marine electrical systems.

Features

• Compatible with EcoFlow 5kVA (Gen 2) and 3.6kVA (Gen 1) Power Hubs
• Integrates data from EcoFlow Smart Distribution Panels, sensors, and relays
• Monitor your system using EcoFlow PowerInsight, Power Kit Console, or the EcoFlow App
• Supports voltage, resistance, and 4-wire RTD level sensors
• Simplifies sensor calibration and system configuration
• Hidden terminal block for clean, easy wiring
• Supports up to 2 Power Links connected to a single Power Hub
• Made in China

Specifications

• Dimensions (W × D × H): 137 × 31 × 74 mm (5.4 × 1.2 × 2.9 in.)
• Weight: Approx. 120 g (0.26 lb)
• EF BUS Input: 12V DC, 1.5A max.
• EF BUS Output: 12V DC, 1.33A max.
• Voltage Sensor Inputs: 3 (0–35V DC)
• Resistance Sensor Inputs: 4 (10 Ω–100 kΩ)
• Digital Inputs: 1
• Relay Outputs: 2 (42.4V DC, 1.75A max.)
• Operating Temperature: -25°C to 50°C (-13°F to 122°F)
• Storage Temperature: -25°C to 70°C (-13°F to 158°F)
• Operating Humidity: 0–95% RH (non-condensing)
• Maximum Altitude: 3,000 m (9,842 ft)
• Protection Rating: IP20
