EuroLoft Smart Bed Complete Kit

INSTRUCTION GUIDE

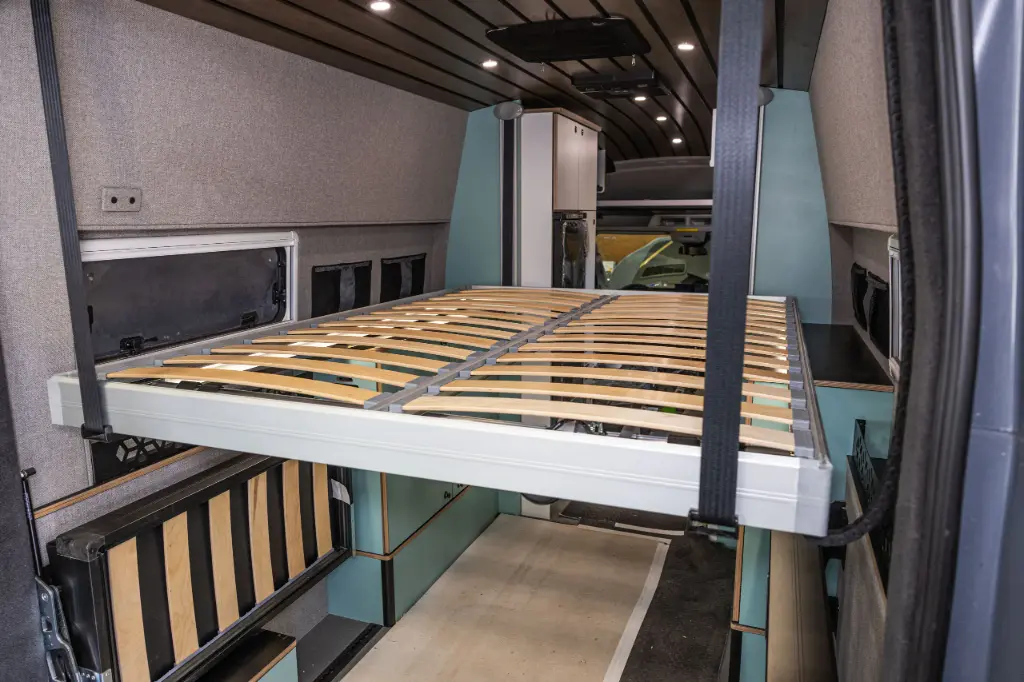

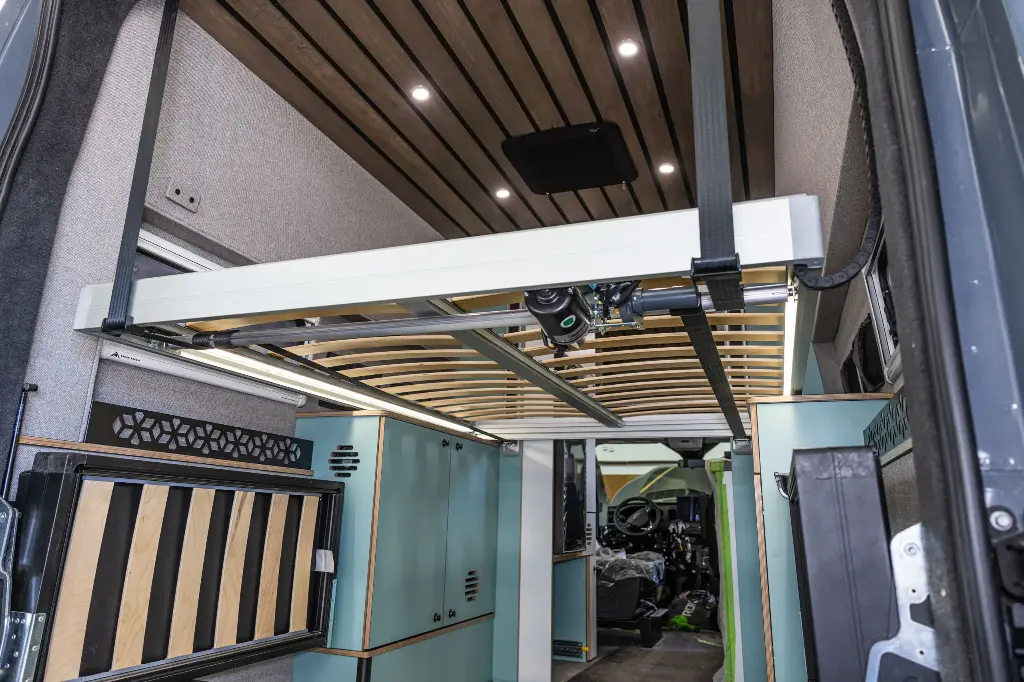

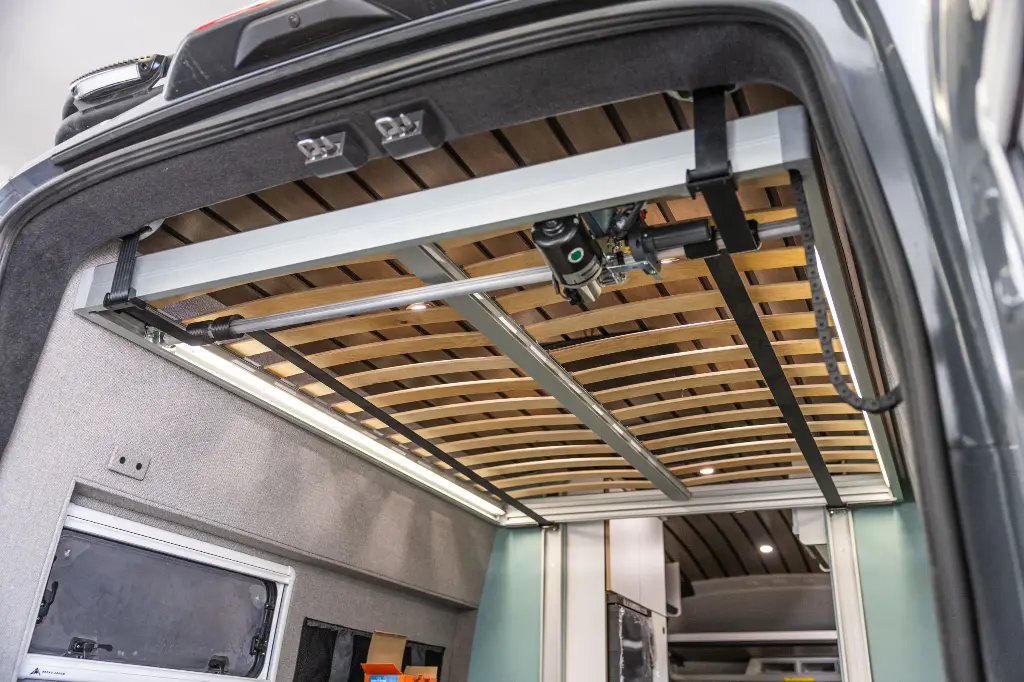

Create a custom, electrically adjustable bed for your RV or campervan with the Lippert EuroLoft Smart Bed Complete Kit. The kit combines the lifting mechanism and mounting brackets with a customizable aluminum bed frame, wooden slats and slat holders. The frame profiles can be cut to fit your available space.

Features

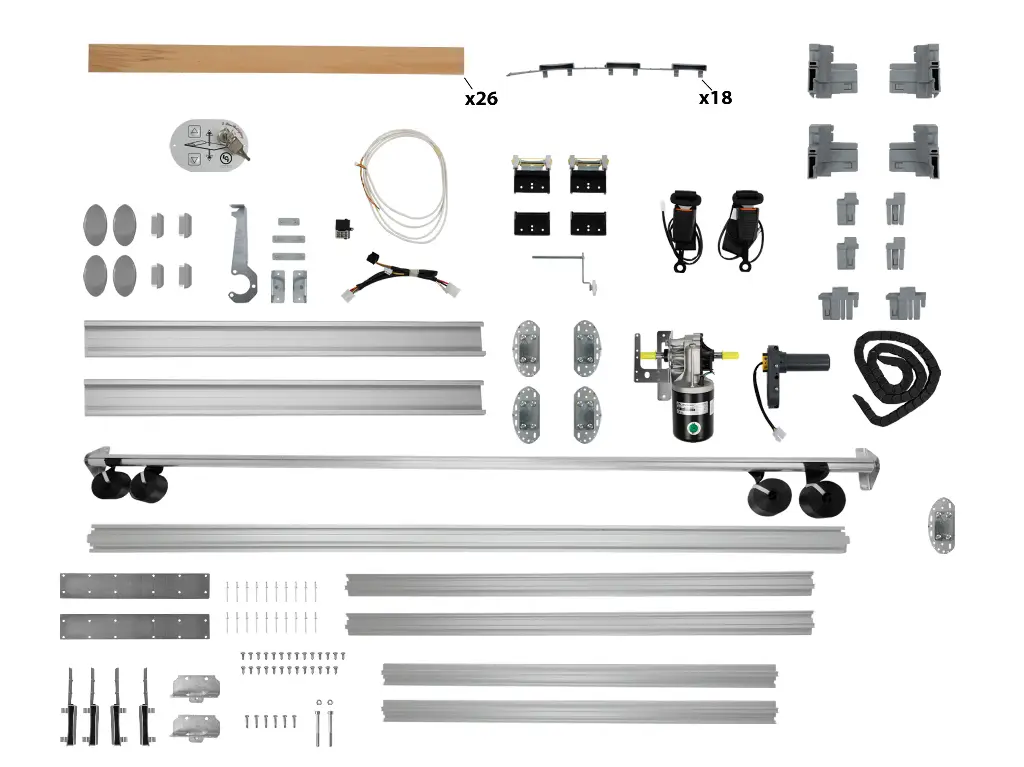

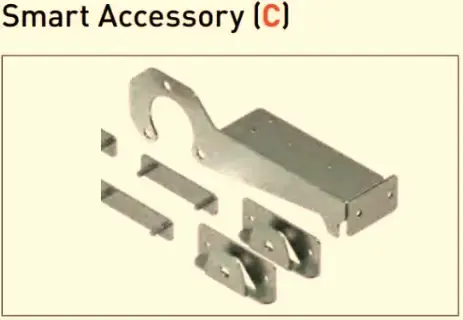

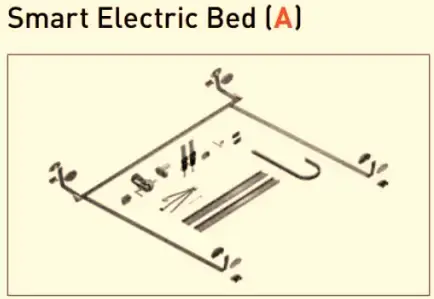

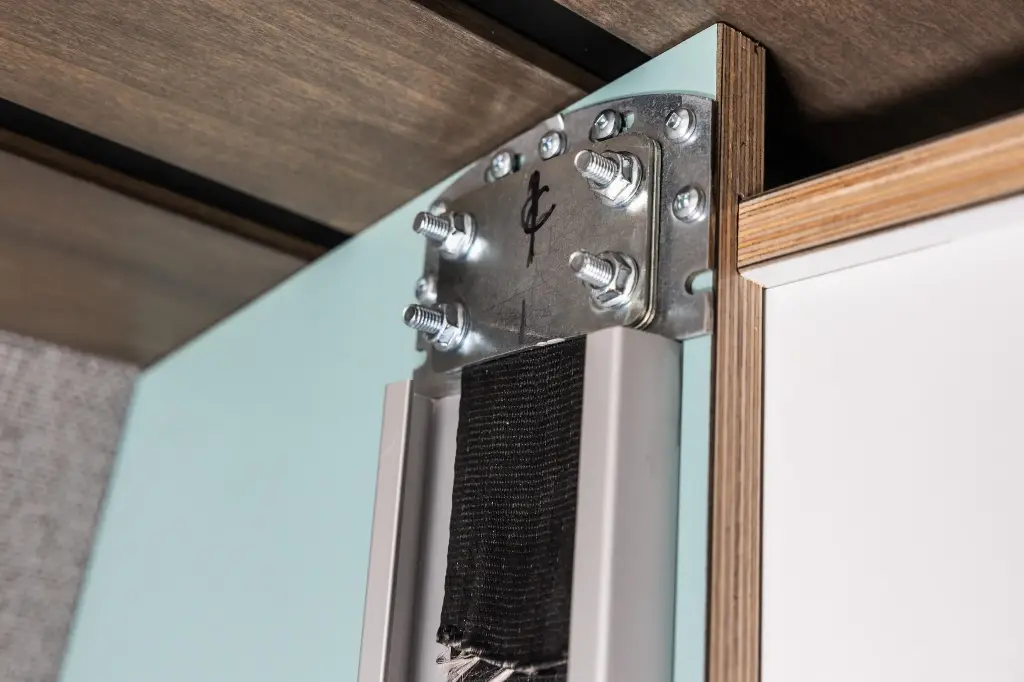

• Complete kit includes mechanical/bracket kit and bed frame kit

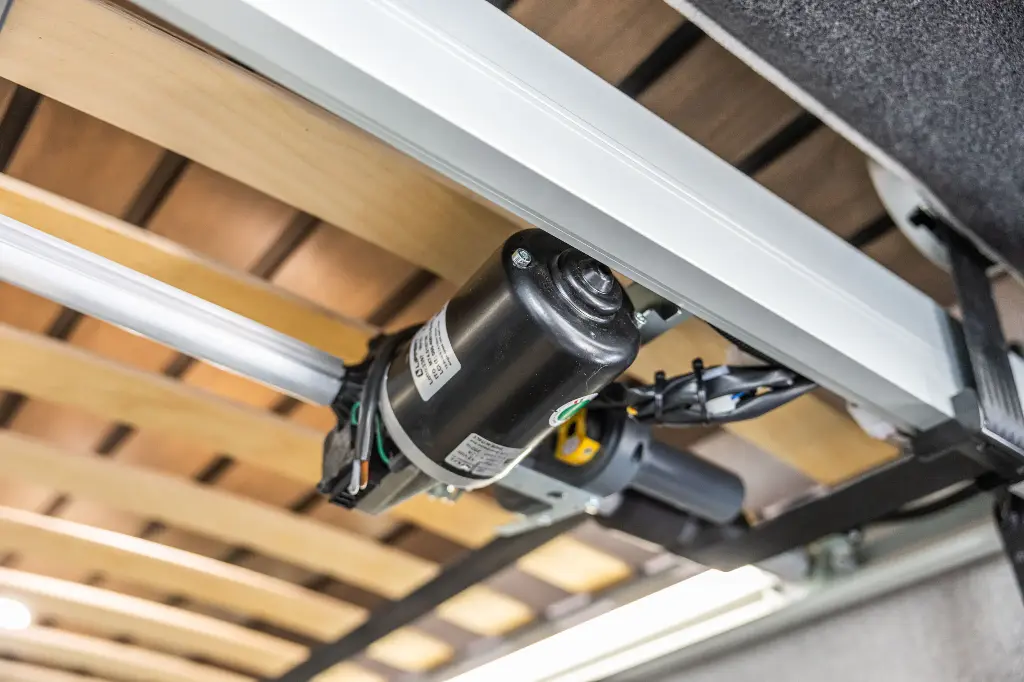

• Electrically adjustable bed height

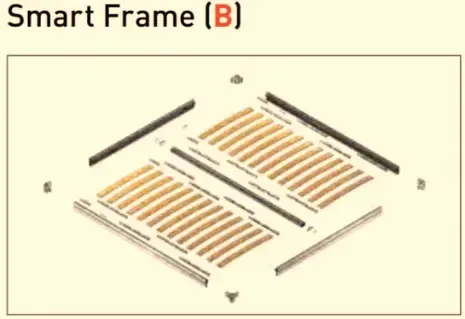

• Customizable aluminum frame profiles that can be cut to size

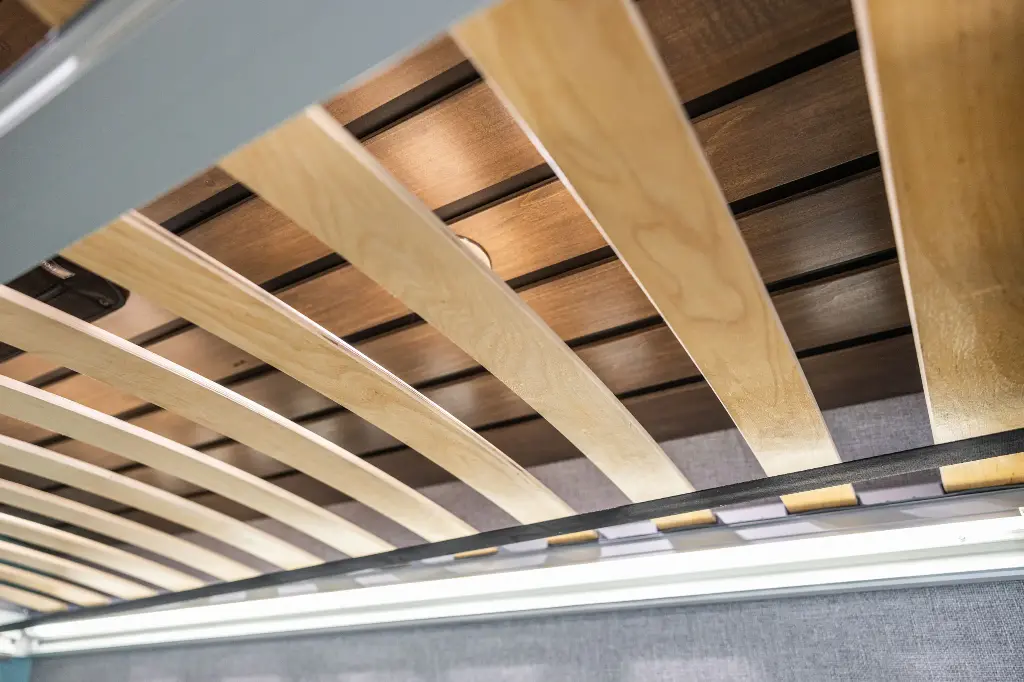

• Wooden slats and slat holders included

• Frame can be reduced in size and configured with a stepped side

• Manual crank included for emergency operation

Specifications

• Maximum frame size: 2000 × 1600 mm

• Recommended mattress size: 1970 × 1570 mm

• Bed lifting rail length: 990 mm

• Vertical travel: Approximately 95 cm

• Lifting capacity: 60 kg

• Static load capacity: 400 kg

• Belt length: Up to 4000 mm

Installation

• Professional installation recommended due to system complexity.

• Refer to the manufacturer's installation manual before installation.
