Ford Transit 148" High-Roof Rack

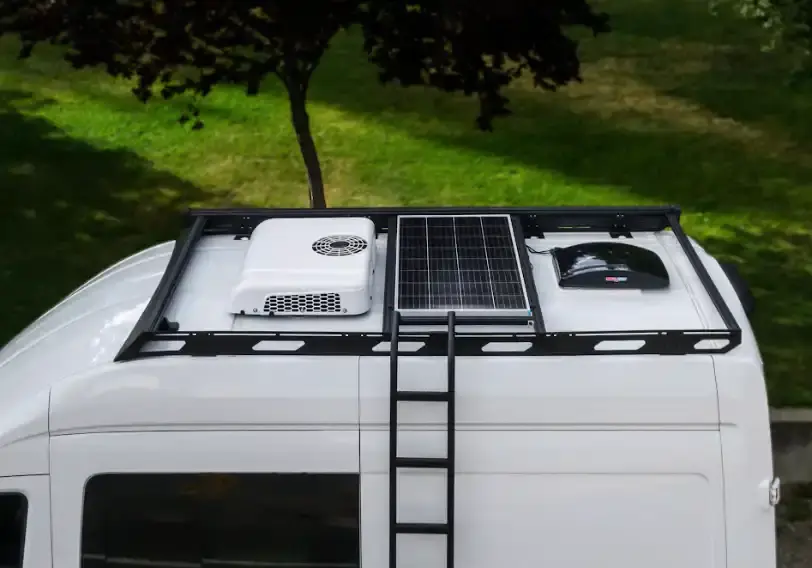

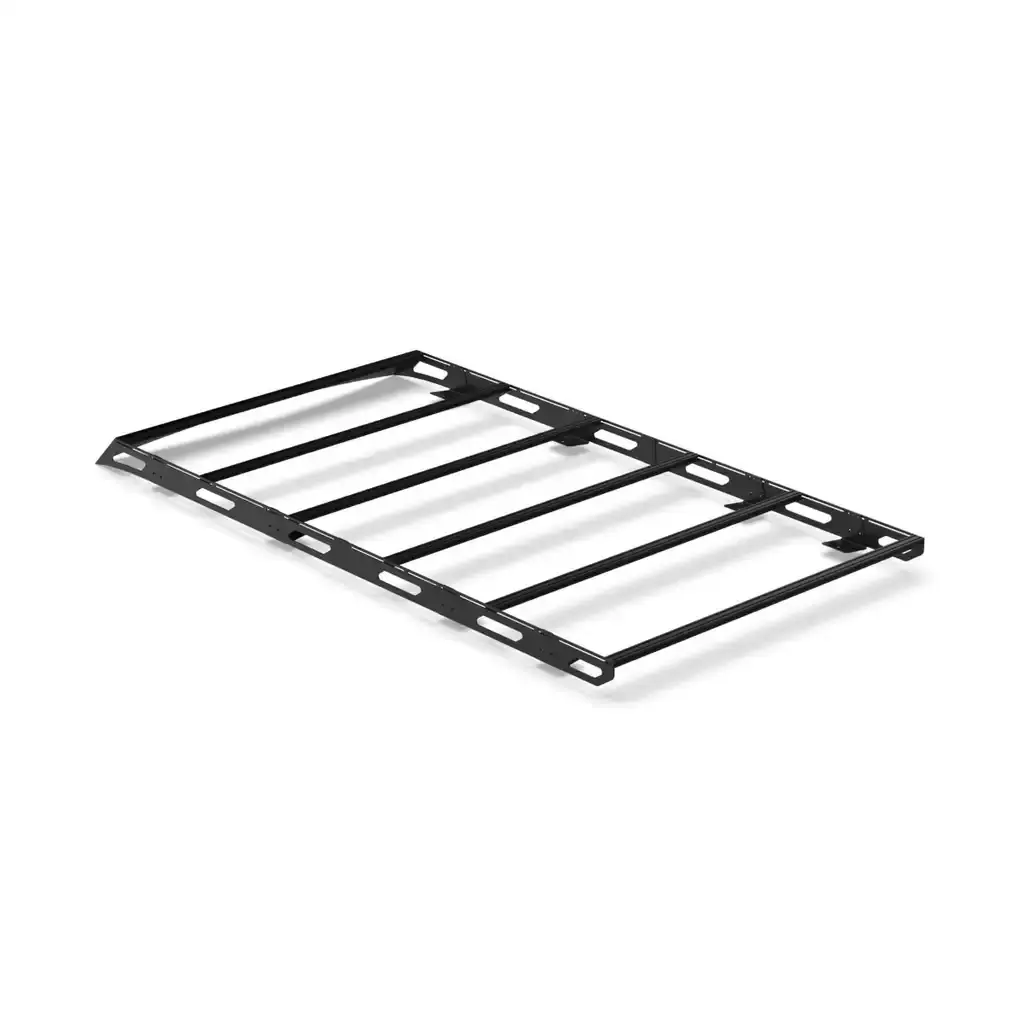

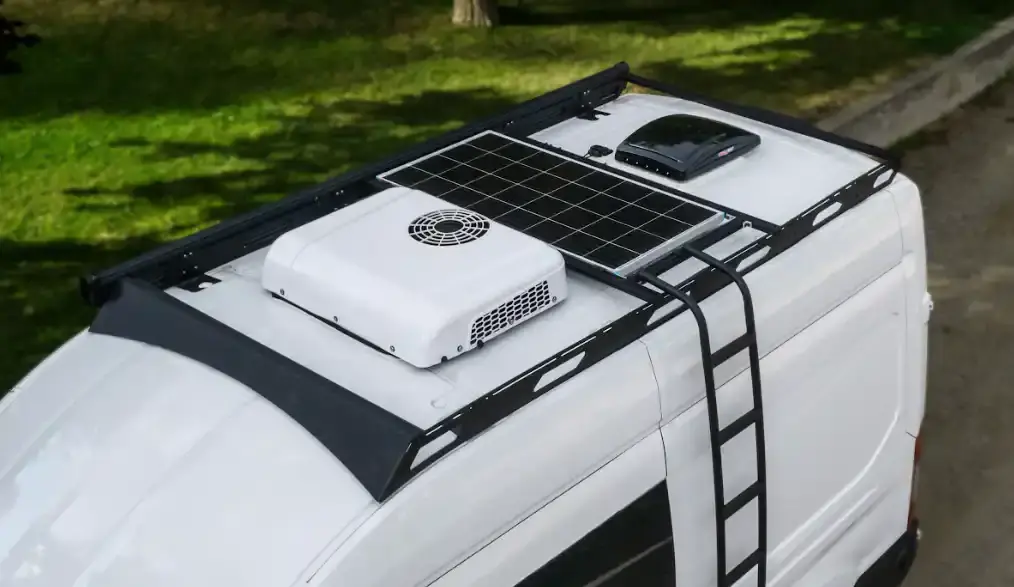

The Curious Camper Vans Modular Roof Rack is a lightweight, DIY-friendly roof rack designed specifically for the Ford Transit 148" wheelbase High-Roof. Built from 3/16" powder-coated aluminum side walls and black 8020™ aluminum extrusion crossbars, this modular system weighs just 60 lbs while providing a flexible platform for solar panels, light bars, decking, rooftop tents, awnings, and other vanlife accessories. The rack mounts directly to the Ford factory threaded roof inserts using eight brackets and stainless steel hardware, with no heavy machinery required for installation.

FEATURES & SPECIFICATIONS

• Modular design ships flat-packed and can be installed by one person in less than a day.
• 60 lb total weight with lightweight aluminum construction.
• Water-jet-cut 3/16" powder-coated aluminum side walls with eight mounting brackets.
• 5 black 8020™ aluminum extrusion crossbars included; additional crossbars can be added for greater flexibility.
• Powder-coated aluminum wind fairing with one dedicated crossbar.
• Compatible with Fiamma F45S and Thule awnings with no drilling required.

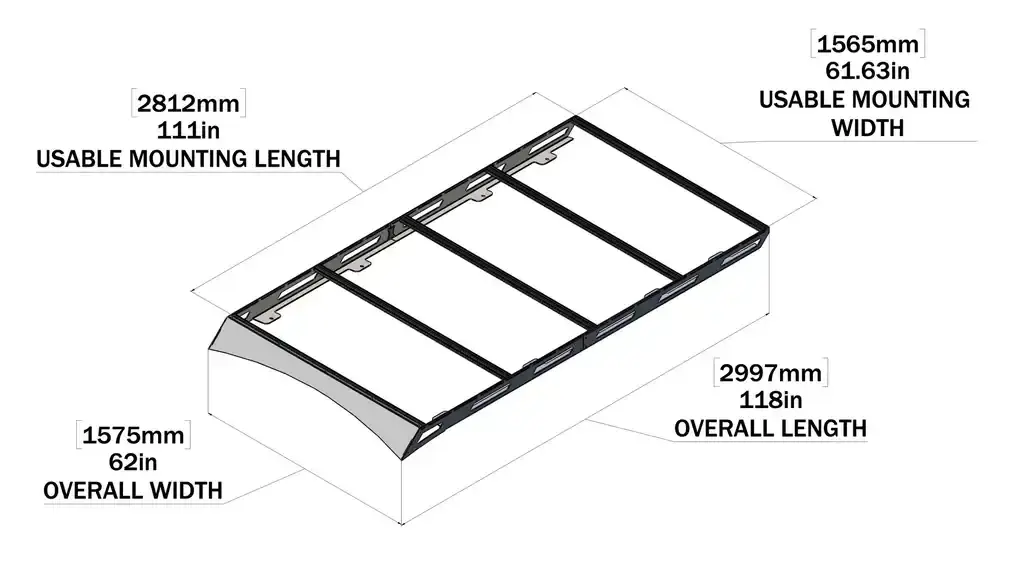

• Dimensions: 118" (2997 mm) total length × 62" (1575 mm) total width × 4.6" (116.8 mm) height; mounting length 111" (2812 mm), mounting width 61.63" (1565 mm).

FITMENT & INSTALLATION

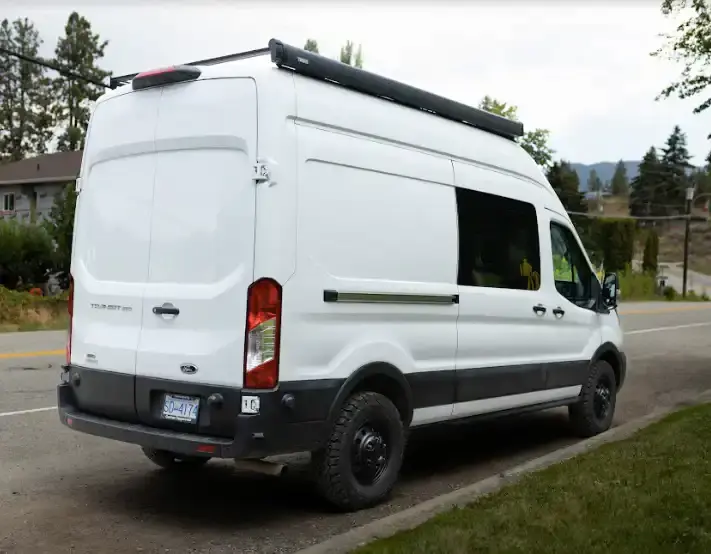

• Designed specifically for Ford Transit 148" wheelbase High-Roof models.
• Mounts to the factory threaded roof inserts; all brackets and stainless steel hardware are included.
• Not compatible with 130" or 148" Extended wheelbases, Low-Roof, or Mid-Roof models.
• Installation instructions are provided for a straightforward DIY installation.
