Ford Transit 148" Mid-Roof Rack

Installation instructions

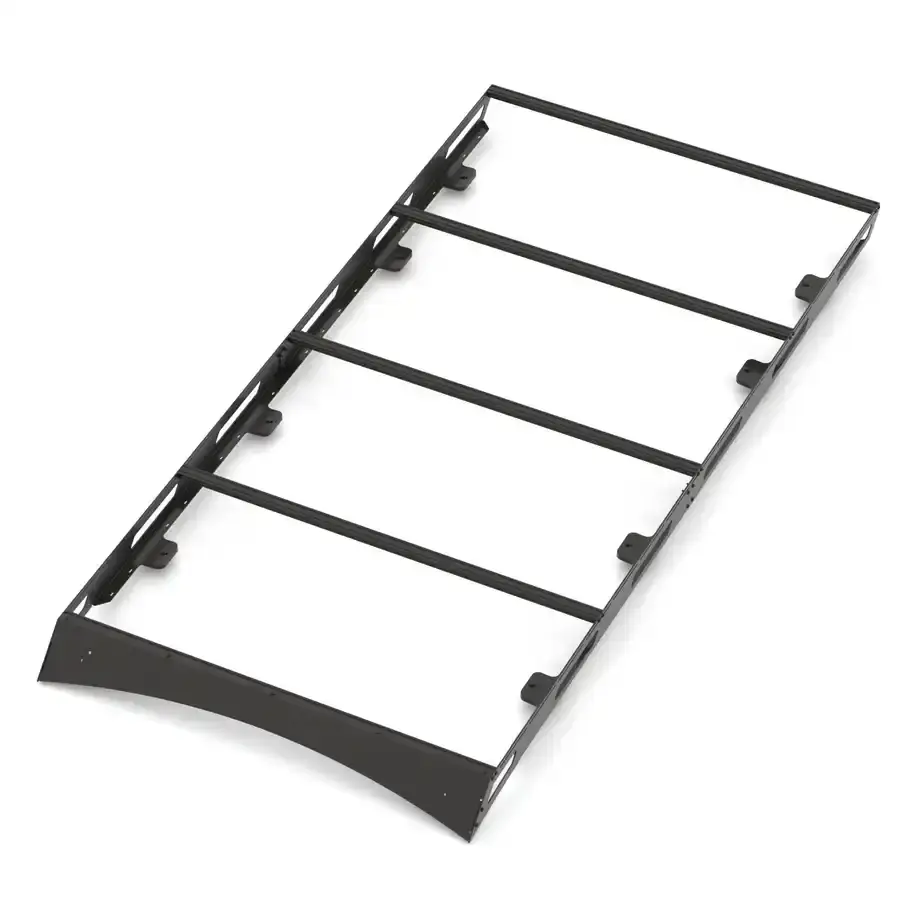

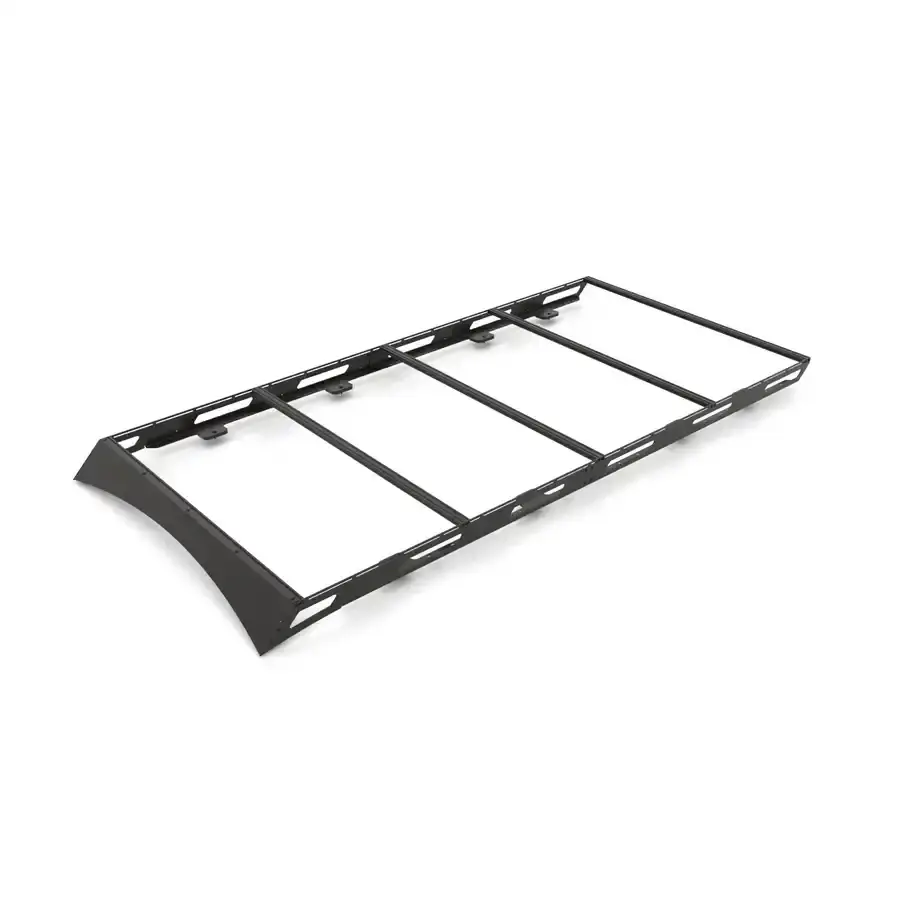

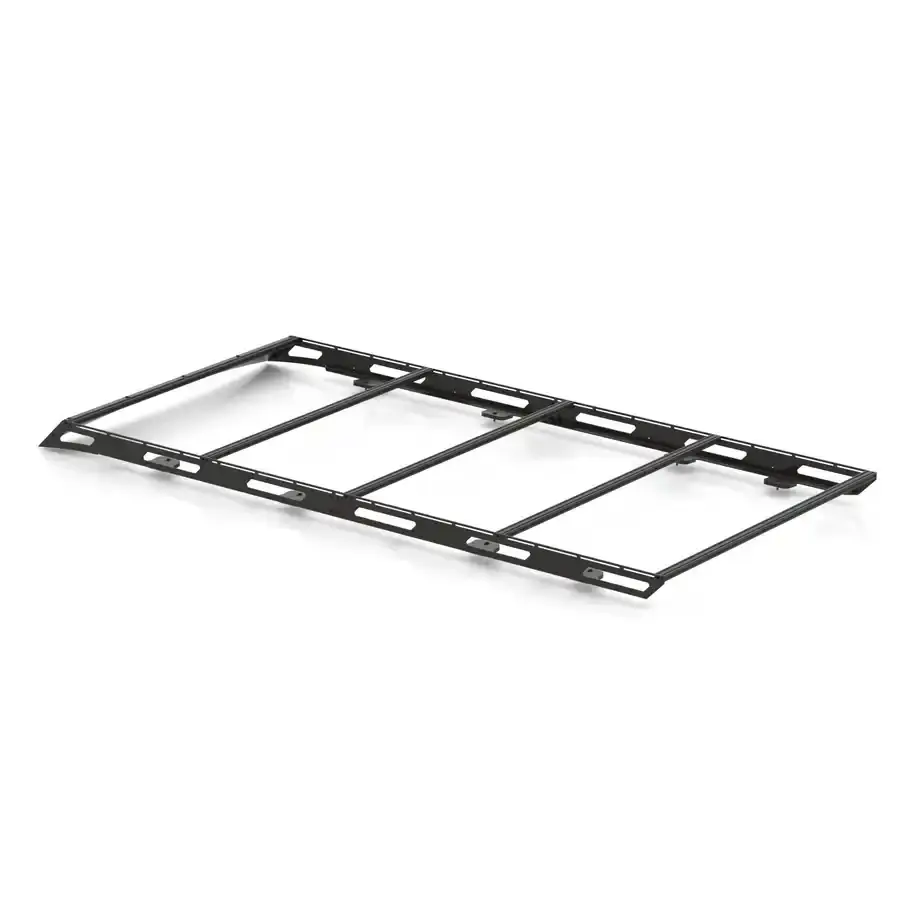

The Curious Campervans Modular Roof Rack is a lightweight, DIY-friendly roof rack designed specifically for the Ford Transit 148" wheelbase Mid-Roof. Built from 3/16" powder-coated aluminum side walls and black 8020™ aluminum extrusion crossbars, this modular system weighs just 62 lbs while providing a flexible platform for solar panels, light bars, decking, awnings, and other vanlife accessories. The rack mounts directly to the Ford factory threaded roof inserts using eight brackets and stainless steel hardware.

FEATURES & SPECIFICATIONS

• Modular design ships flat-packed for straightforward installation.
• 62 lb total weight with lightweight aluminum construction.
• Water-jet-cut 3/16" powder-coated aluminum side walls with eight mounting brackets.
• 4 black 8020™ aluminum extrusion crossbars included, including one dedicated to the wind fairing; additional crossbars can be added.

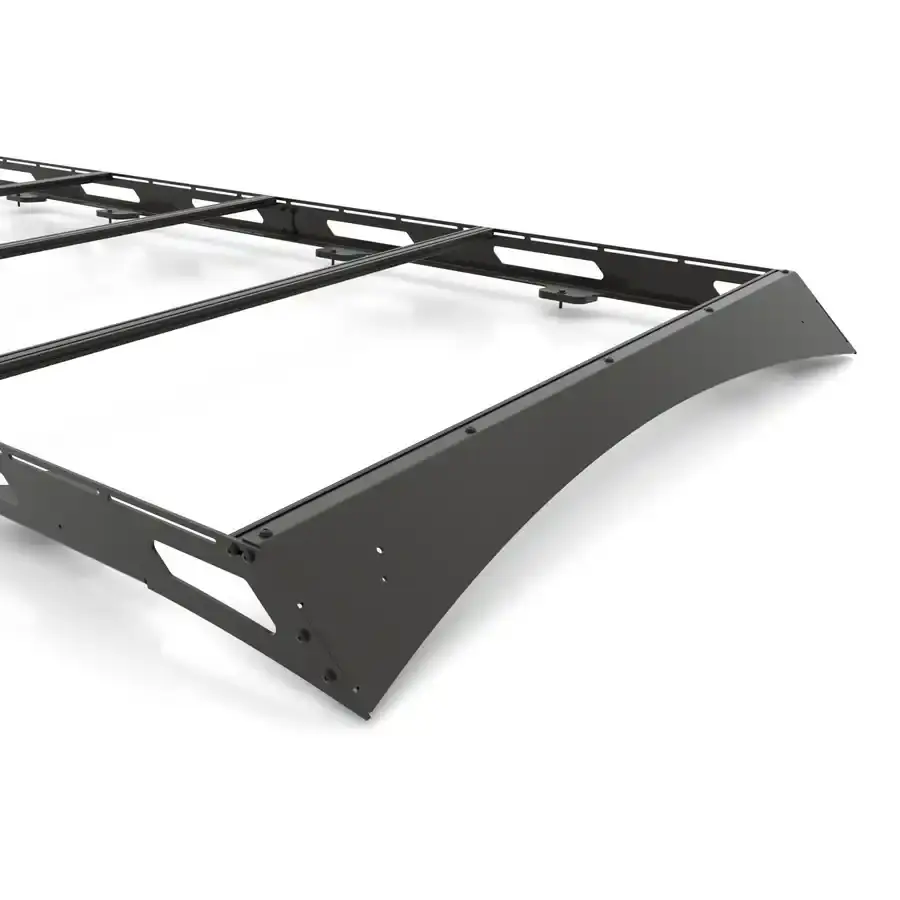

• Powder-coated aluminum wind fairing for improved aerodynamics.
• Compatible with Fiamma F45S and Thule awnings with no drilling required.

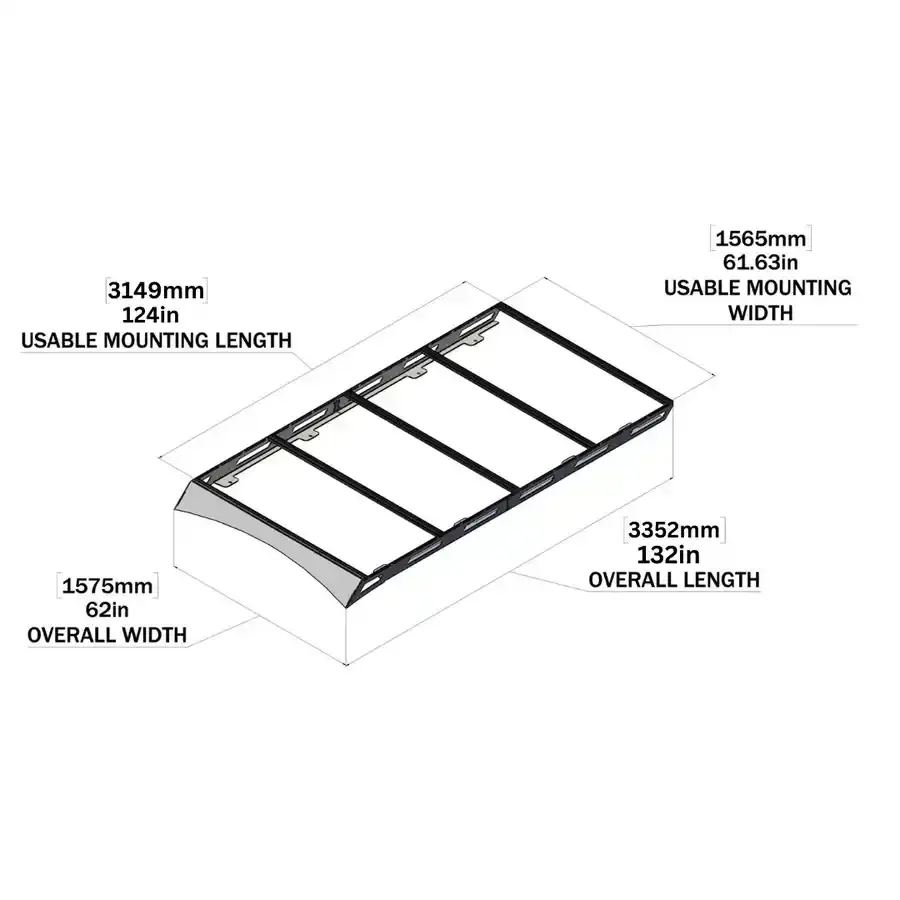

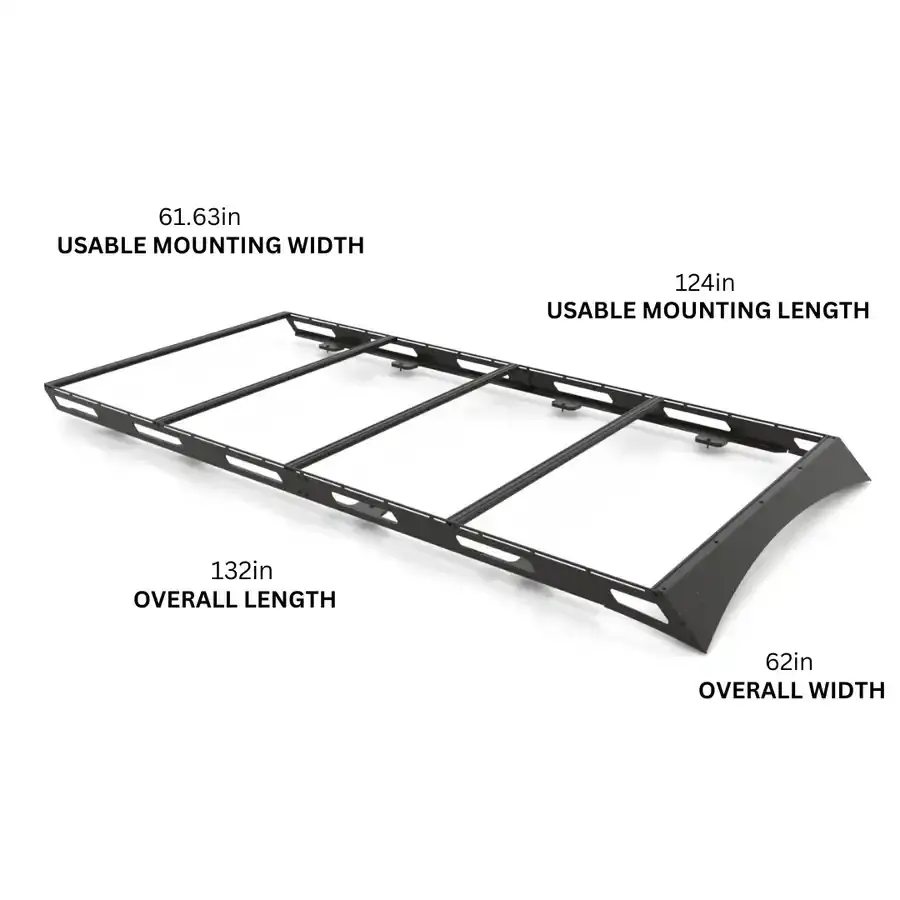

• Dimensions: 132" (3352 mm) total length × 62" (1574.8 mm) total width × 4.6" (116.8 mm) height; mounting length 124" (3149.6 mm), mounting width 61.63" (1565.2 mm).

FITMENT & INSTALLATION

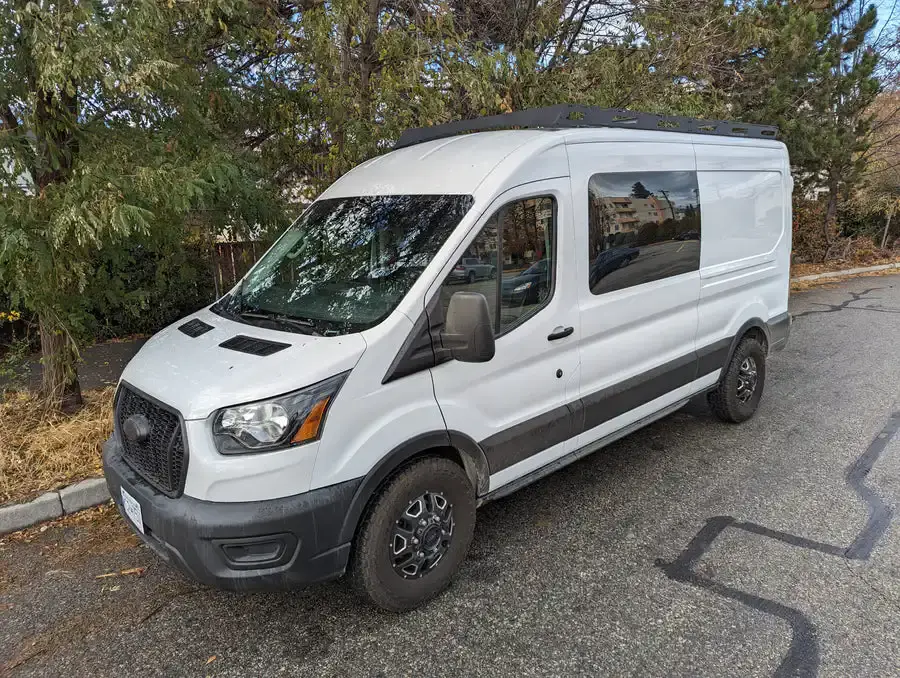

• Designed specifically for Ford Transit 148" wheelbase Mid-Roof models.
• Mounts to the factory threaded roof inserts using eight brackets; stainless steel hardware is included.
• Not compatible with 130" or 148" Extended wheelbases, Low-Roof, or High-Roof models.
• Ships flat-packed for convenient assembly and installation.
