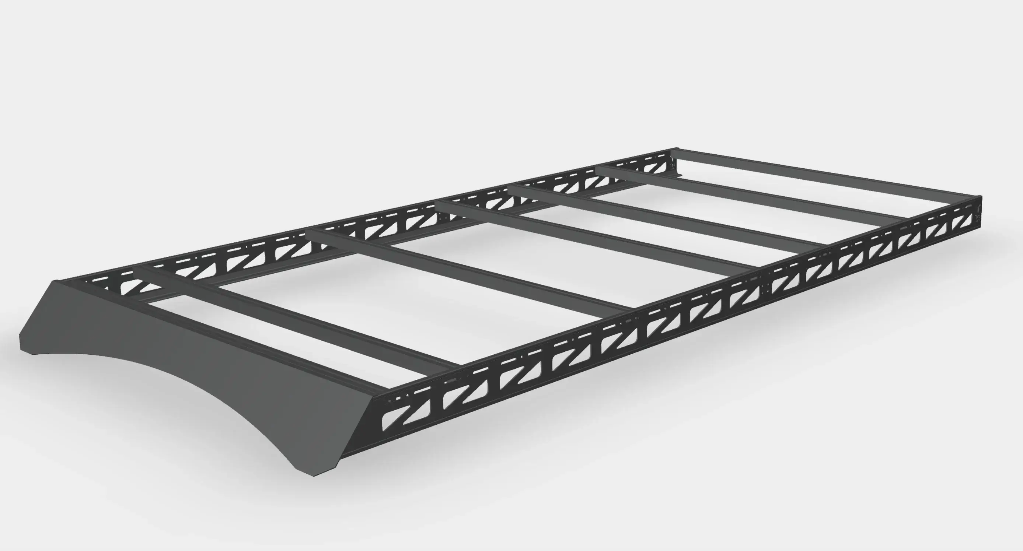

Ford Transit Roof Rack | Modular

Ford Transit Modular Roof Rack – Aluminum Roof Storage System

This modular aluminum roof rack system for Ford Transit vans is designed to maximize rooftop cargo capacity while maintaining a lightweight, aerodynamic structure. Built from extruded aluminum, it provides a rigid and adaptable platform for solar panels, storage boxes, and overland accessories commonly used in camper van conversions.

Features

• Modular crossbar system allows flexible positioning and layout customization
• Supports mounting of solar panels, cargo boxes, rooftop A/C units, and fans
• High-strength extruded aluminum construction for durability and corrosion resistance
• Reinforced side rails with double-thick corners for added rigidity
• Aerodynamic design gap helps reduce wind noise and improve airflow
• Compatible with decking systems and L-track accessories
• No-drill installation using factory mounting points
• Designed for high load capacity (vehicle-dependent)

Specifications

• Material: High-strength extruded aluminum
• Load capacity: Up to 500 lbs (vehicle-dependent)
• Rail height: 5" (128 mm)
• Overall width: 53.34" (1355 mm)
• Crossbar length: 52.95" (1345 mm)
• Internal width (solar clearance):
  • 130" wheelbase: 51.77" (1315 mm)
  • 148" wheelbase: 62.22" (1555 mm)
• Weight:
  • 130" wheelbase: 56 lb (25.4 kg)
  • 148" wheelbase: 72 lb (32.6 kg)
• Installation: Factory mounting points, no drilling required
• Compatibility: Ford Transit roof configurations

Compatibility / Installation

• Designed for Ford Transit vans:
  • 130" wheelbase (high roof)
  • 148" wheelbase (mid roof)
  • 148" wheelbase (high roof)
  • 148" extended (high roof)
• Compatible with:
  • Solar panel systems
  • Roof storage boxes
  • Rooftop fans and ventilation systems
  • Air conditioning units
  • Modular decking and L-track systems
• Installs using factory roof mounting points
• Suitable for professional and DIY van conversion builds
• Designed for overland and long-term travel applications
