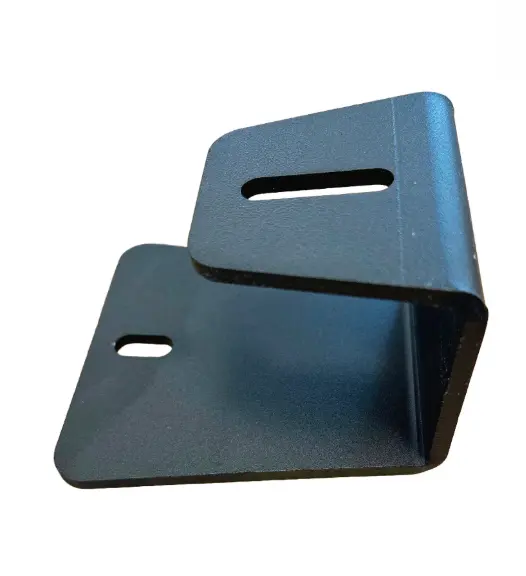

Ford Transit Roof Rack / Rail Mounting Bracket (Set of 2)

Ford Transit Roof Rack Mounting Bracket – Set of 2

These roof rack mounting brackets for Ford Transit vans are designed to provide a secure and stable attachment point for roof rack systems. Built from powder-coated aluminum and engineered for compatibility with 8020 extrusion systems, they ensure reliable integration between the vehicle roof and modular rack structures.

Specifications

• Material: 1/4" high-strength aluminum
• Finish: Powder-coated
• Configuration: Set of 2 brackets
• SKU: E-RR-T-TR-RMB
• Hardware requirement: M8 bolts (recommended length: 25–35 mm)
• Sealing materials: Butyl tape and silicone recommended for waterproofing
• Compatibility: Ford Transit roof rack systems with 8020 rails

Compatibility / Installation

• Designed for Ford Transit vans
• Compatible with 8020 aluminum extrusion roof rack systems
• Uses factory roof mounting points (application-dependent system design)
• Requires M8 mounting hardware (25–35 mm length recommended)
• Sealing recommended using butyl tape and silicone around mounting points
• Suitable for use with modular roof racks and crossbar systems

Important Safety / Usage Notes

• Maximum load: 40 lbs per mounting tower
• Do not extend components more than 4 inches beyond outermost towers
• Do not exceed vehicle manufacturer roof load limits
• Use all available roof attachment points for installation
• Do not install rooftop decking or allow climbing on the rack system
• Inspect and tighten hardware after first 100 miles, then every 500 miles or monthly
• Regular inspection of system integrity is required for safe operation
• Improper installation or use may result in equipment failure and serious injury risk
• Product is sold as-is with no warranty of fitness for a specific purpose
