PRE-CUT / 3M™ Thinsulate™ Van Insulation Kit for Ford Transit 148"WB High Roof

Insulate your Ford Transit efficiently with this pre-cut 3M™ Thinsulate™ AU6002 insulation kit, designed for the main interior cavities of 2015+ Transit cargo vans. The pre-cut pieces conform to the van's irregular interior spaces and include a placement diagram, saving time during installation and eliminating much of the measuring and cutting required for a custom insulation job.

FEATURES

• Pre-cut 3M™ Thinsulate™ AU6002 for easier and faster installation
• Covers the cargo-area ceiling, walls, and open door cavities
• Non-woven polyester and polypropylene fibers provide thermal and acoustic insulation while remaining lightweight and conformable
• R-Value: 5.45 per inch (RSI 0.96)
• 44 mm thickness and 16.1 kg/m³ density
• Hydrophobic fibers resist moisture, mold, and mildew
• Certified to FMVSS 302 for fire resistance
• Double-black, double-embossed scrim contains and protects the insulation fibers
• Highly effective acoustic absorption, particularly in the mid- to high-frequency range

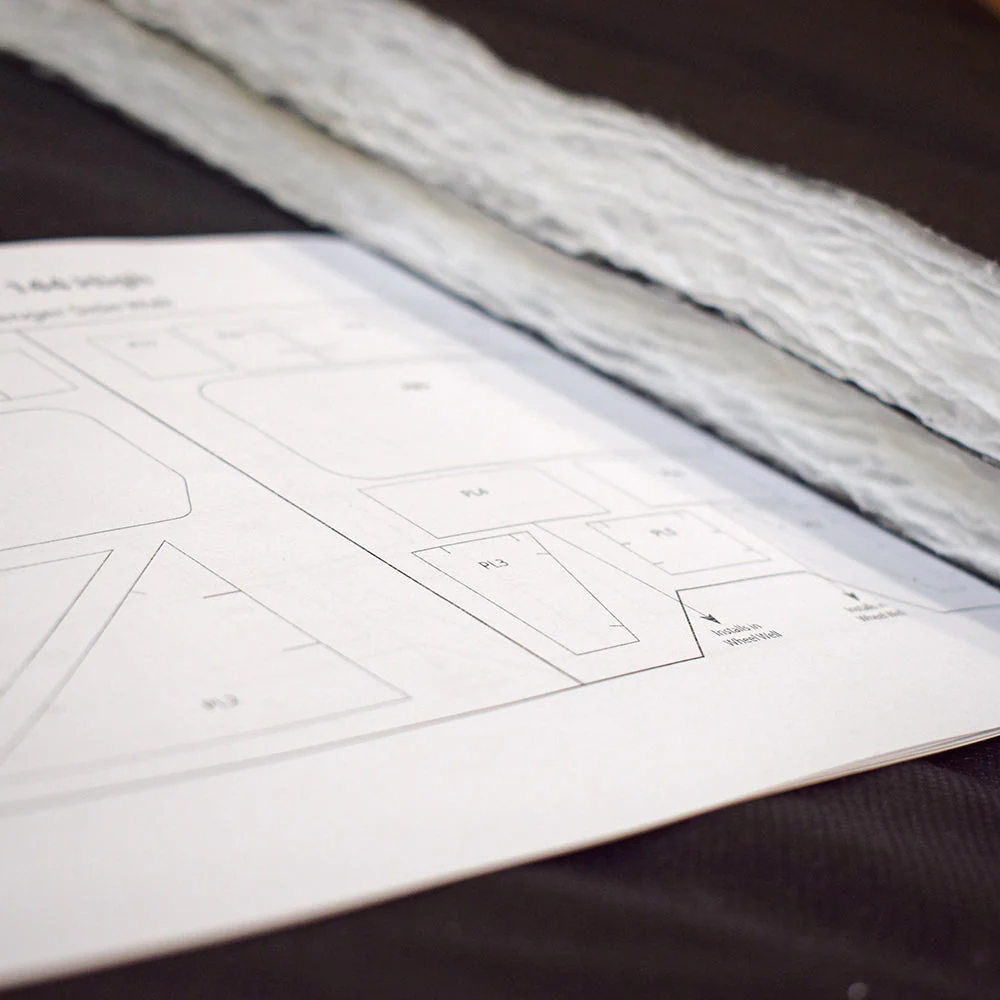

• Includes an installation diagram showing the location of each pre-cut piece

COMPATIBILITY & COVERAGE

• Designed for 2015+ Ford Transit cargo vans
• 148" Wheelbase, High Roof
• 148" Extended, High Roof
• Does not include insulation for the cab or floor
• Does not include material for filling spaces between beams or fully or partially covered cavities
• Designed to cover the main large cavities of the Transit cargo area
