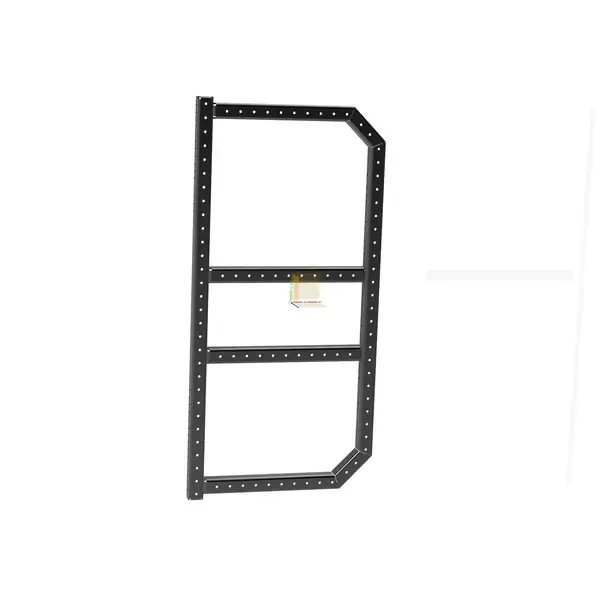

Left Universal Proto Bracket

Left Universal Proto Bracket

The Universal Proto Bracket is a modular exterior support system designed for van life, overland, and utility applications. Engineered to fit Sprinter, Promaster, and Transit vans with the appropriate hinge mounting hardware, this bracket offers a highly adaptable platform for mounting storage boxes, sports equipment, BBQ accessories, and other gear you prefer to keep outside your living space. Its articulated design follows the opening movement of the rear doors, maintaining easy access to the interior of the vehicle.

Designed and manufactured in Quebec.

Features

• Universal modular support system for Sprinter, Promaster, and Transit vans
• Compatible with multiple exterior storage and accessory configurations
• Adjustable crossbar positioning for customized installations
• Easy-to-disassemble design for seasonal or modular use
• Includes two mounting crossbars with the option to add up to five
• Designed to follow rear door opening movement for easier vehicle access
• Fully TIG welded 6061 aluminum construction for strength and durability
• Textured black powder-coated finish for enhanced corrosion resistance

Specifications

• Material: 6061 aluminum
• Construction: Fully TIG welded
• Load Capacity: 200 lbs including bracket weight
• Bracket Weight: 24 lbs with mounting hardware
• Hinge Mount Material: 308 stainless steel
• Hardware: Stainless steel mounting hardware
• Finish: Textured black powder coat
• Included: Two mounting crossbars

Compatibility & Installation

• Compatible with Sprinter, Promaster, and Transit vans using model-specific hinge mounts
• Suitable for Promaster vans with or without rear windows
• Installs using existing rear door mounting points
• No drilling required except for two small holes behind the Mercedes logo on Sprinter models
• Overloading accessories or storage systems may damage doors and hinges and void warranty
• Rear proximity sensors may detect the bracket during reversing
• Fully loaded doors should be closed gently to reduce stress on hinges and mounting points
