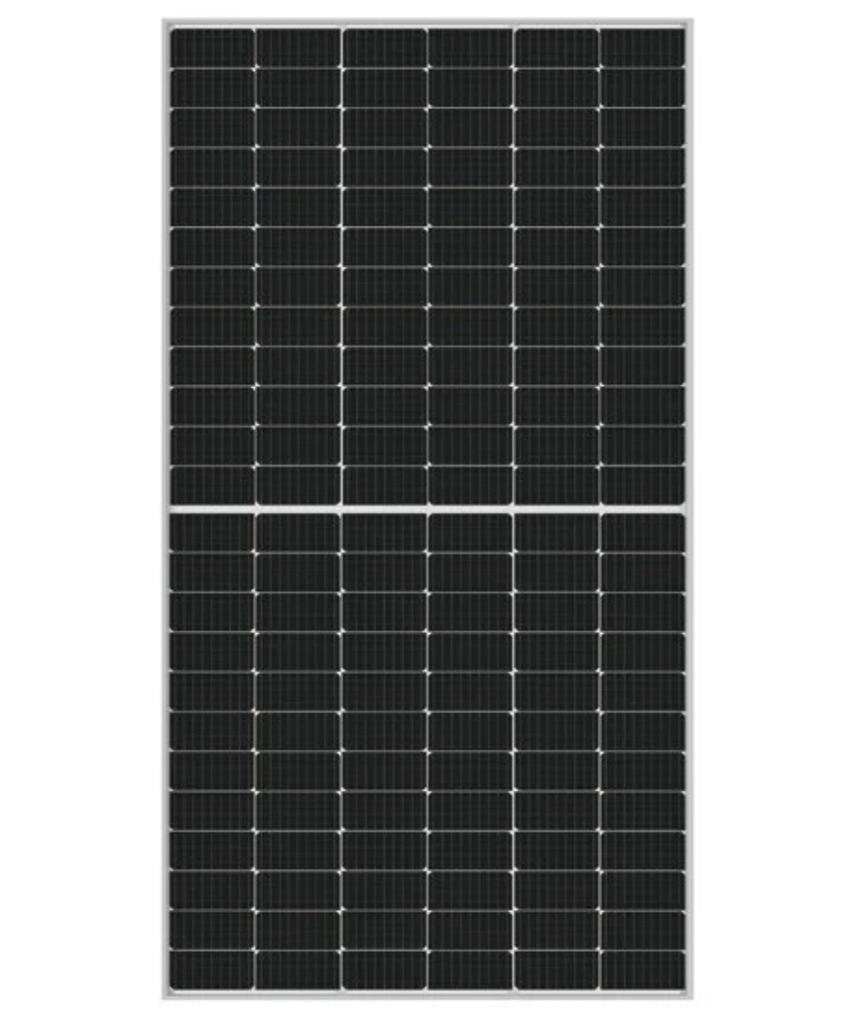

Longi 540W Monocrystalline and Bifacial Solar Panel | LR5-72HBD-540M

Longi 540W Monocrystalline Bifacial Solar Panel | LR5-72HBD-540M

Description:

The Longi LR5-72HBD-540M solar panel delivers 540W of high-efficiency power using advanced monocrystalline PERC cells and bifacial technology. Designed for maximum energy yield, it captures sunlight from both sides, increasing total energy output by up to 25%.

Ideal for residential, commercial, or ground-mounted solar installations, this panel combines high efficiency (21.1%), robust construction, and long-term reliability to ensure consistent performance—even in low-light or challenging weather conditions.

Key Features:

• High Power Output: 540W nominal power for superior energy generation.

• Bifacial Design: Harnesses sunlight from both sides for higher total yield.

• High Efficiency: 21.1% module efficiency with low power loss.

• Durable Construction: Monocrystalline PERC half-cells with tempered glass for enhanced strength.

• Reliable Performance: Maintains stability in low-light and high-temperature environments.

• Certified Quality: IEC 61215 and IEC 61730 standards for weather and hail resistance.

• Long Lifespan: 12-year product warranty and 25-year performance warranty (≥80% output).

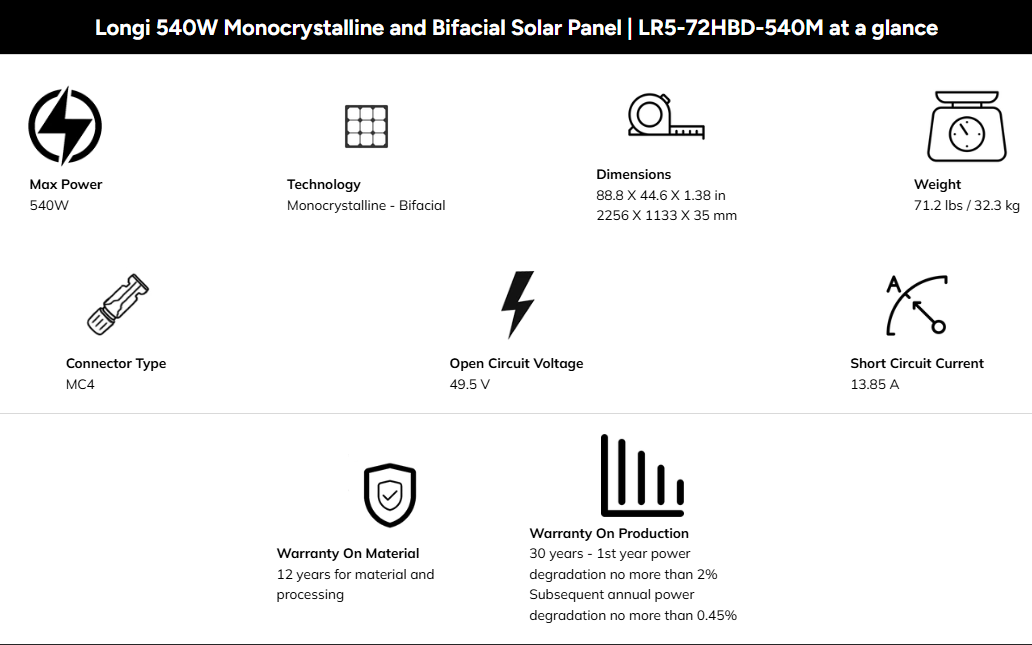

Technical Specifications:

• Nominal Power (Pmax): 540W

• Cell Type: Monocrystalline PERC

• Technology: Bifacial half-cell

• Efficiency: 21.1%

• Open-Circuit Voltage (Voc): 49.50V

• Short-Circuit Current (Isc): 13.85A

• Voltage at Maximum Power (Vmp): 41.65V

• Current at Maximum Power (Imp): 12.97A

• Operating Temperature: -40°C to +85°C

• Dimensions: 2256 × 1133 × 35 mm

• Weight: 27.2 kg

• Power Tolerance: 0 ~ +5W

• Weather & Hail Resistance: IEC 61215, IEC 61730 certified

• Product Warranty: 12 years

• Performance Warranty: 25 years (80% of initial power output)

Ideal For:

• Residential rooftops

• Commercial solar systems

• Ground-mounted installations

• Off-grid and hybrid solar setups
