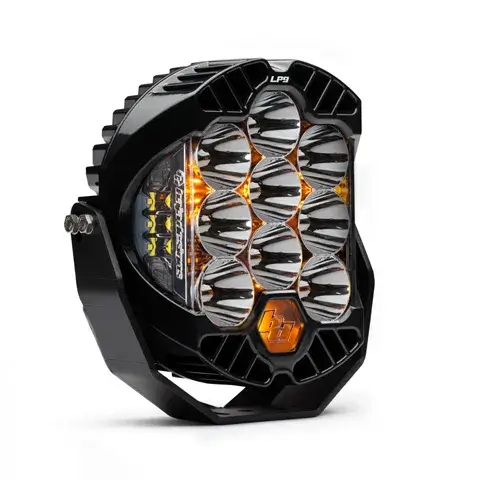

Baja Designs LP9 Racer Edition LED Light Pod

Inspired by the legendary 8-inch La Paz HID, the Baja Designs LP9 Racer Edition combines classic styling with cutting-edge LED performance. Designed for high-speed off-road driving, this light delivers an impressive total output of over 13,000 lumens, featuring 9 forward-projecting LEDs (11,025 lumens at 105W) and 6 side LEDs using Integrated Peripheral Technology (IPT) (1,140 lumens per side).

The LP9 offers a 200° spread of usable light, ensuring full visibility in even the most demanding environments. Its Direct Ducted Cooling (DDC) system optimizes airflow through the housing, effectively dispersing heat to maintain performance and longevity.

This model features high-power, low-power, and daytime running light modes, making it versatile for all off-road applications. The Racer Edition delivers a tighter, longer-reaching beam pattern for maximum distance visibility. With uService technology, you can easily replace the lens or optics to refresh or adapt your light for different driving conditions.

Key Features

• High-output LED lighting: 9 forward LEDs (11,025 lumens) + 6 IPT side LEDs (2,280 lumens total)

• Racer Edition spot beam: Designed for high-speed visibility and distance lighting

• Integrated Peripheral Technology (IPT): 200° wide illumination coverage

• Direct Ducted Cooling: Efficient heat management through front-to-rear airflow

• Daytime running, low, and high-power modes

• uService replaceable lenses and optics for easy maintenance

• CopperDrive technology: 100% LED drive efficiency

• MoistureBlock sealing: Fully waterproof, rainproof, and submersible

• 5000K daylight color temperature: Reduces driver fatigue and enhances clarity

• Durable powder-coated aluminum housing with hard-coated polycarbonate lens

• Universal mount with stainless steel hardware included

Performance & Compliance

• Total Lumens: 13,327 (11,025 + 2,302 IPT)

• Wattage: 132.48W total

• Amperage: 9.6A main beam, 1.52A IPT

• Voltage: 12V DC

• Water Resistance: IP69K (waterproof up to 9 ft, pressure washable)

• Impact Resistance: IK10 (mechanical impact tested)

• Durability Standard: Exceeds MIL-STD810G (military-grade durability)

• Patent: U.S. No. 5,504,603

Technical Specifications

• Beam Pattern: Racer Edition Spot

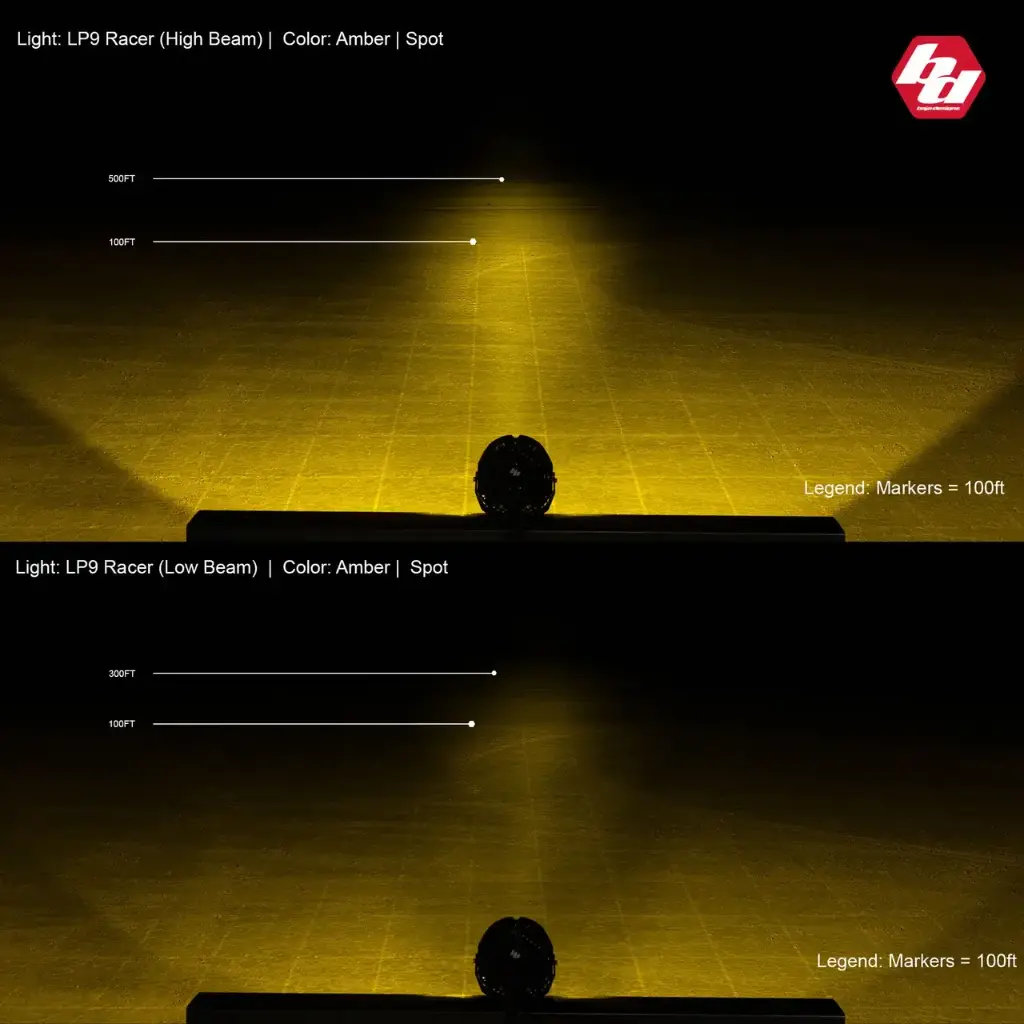

• Lens Color: Amber

• Lens Material: Hard-coated polycarbonate

• Housing Material: Powder-coated cast aluminum

• Housing Color: Black

• Lighting Technology: LED

• Lighting Modes: High / Low / Daytime Running Backlight

• Connector Type: DT06-4S Deutsch

• Mounting Hardware: Included (stainless steel)

• Overvoltage Protection: Built-in

• Wiring Harness: Not included

• Mount Type: Universal

• Light Quantity: 1 pod

Dimensions & Weight

• Depth: 3.25"

• Height: 8"

• Length: 8"

• Weight: 6.5 lbs

Warranty & Guarantee

• 30-Day Satisfaction Guarantee – Money Back

• Limited Lifetime Warranty – Full Purchase Protection
