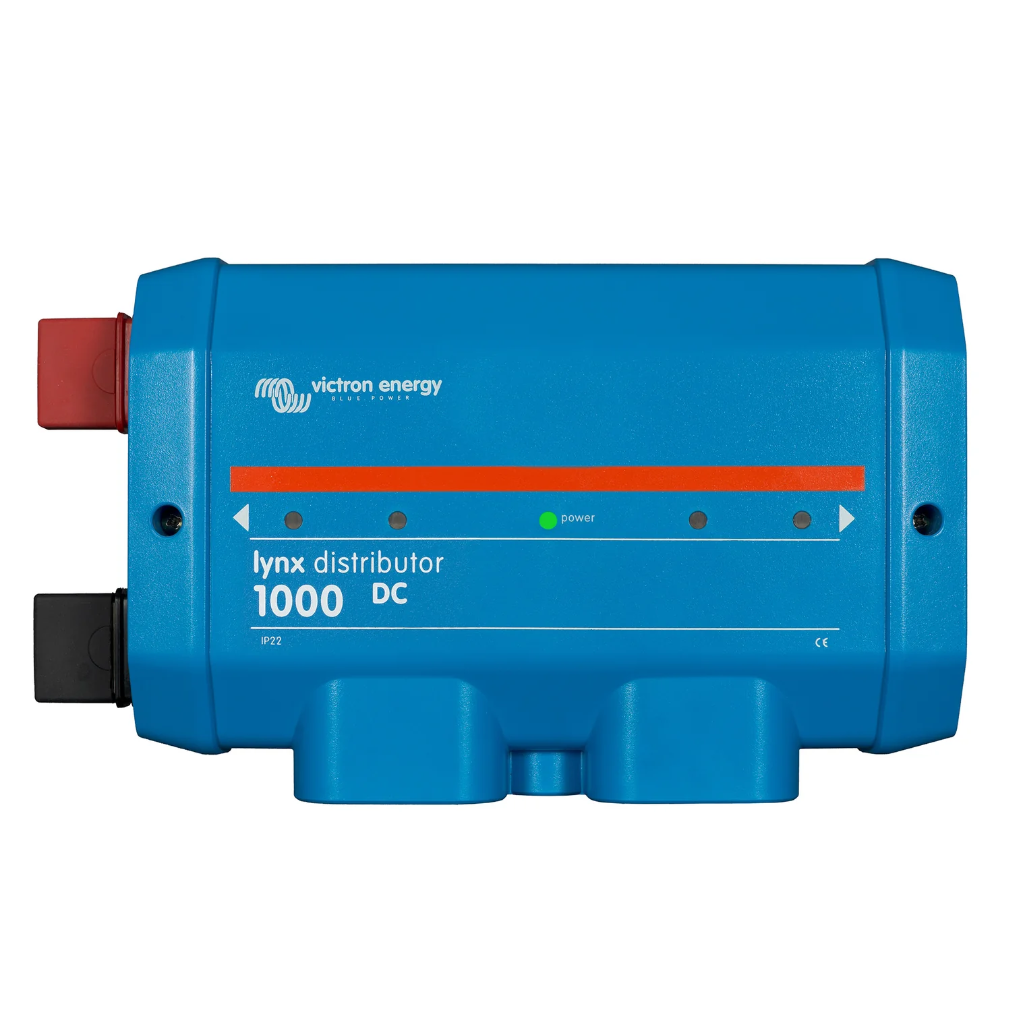

Victron Energy Lynx Distributor (M10) | LYN060102010

https://canadarv.com/web/image/product.template/4633/image_1920?unique=801eca5

Features

  • Integrated positive and negative busbars for centralized DC power distribution
  • Four fused connections on the positive busbar for circuit protection
  • Fuse status monitoring with front-facing LED indicators for each connection
  • Dedicated ground connection on the negative busbar
  • Power status LED for quick system visibility
  • Modular design for integration into expandable DC distribution systems
  • Supports system monitoring when connected to compatible battery management systems
  • Durable construction for demanding electrical environments

276.33 $ 276.33 CAD 276.33 $

Contact us for quote

This combination does not exist.

Contact Us

Terms and Conditions
Return within 30 days for most orders
Free delivery on most orders

THIS ITEM IS NOT INCLUDED IN THE FREE SHIPPING POLICY. WE WILL CONTACT YOU FOR A DELIVERY QUOTE.

Explanation of Victron Energy Lynx Distributor & Power In

DC Power Distribution Module with Fuse Monitoring (M10 Busbar)

This modular DC power distribution unit is designed to manage and protect multiple battery connections within a system. It features integrated busbars and fuse monitoring, allowing for organized, safe, and efficient power distribution in off-grid, RV, and marine electrical setups. Module only; fuses and additional system components not included.

Specifications

  • Product Type: DC power distribution module
  • Busbar Connection Type: M10 (module interconnection)
  • Fuse & Cable Connection Type: M8
  • Number of Fused Circuits: 4 (positive busbar)
  • Negative Connections: 4 + 1 ground connection
  • Monitoring: LED indicators for power and individual fuse status
  • System Compatibility: Modular DC distribution systems with optional BMS integration
  • Expandability: Supports multiple modules connected together
  • Fitment: System-specific (not universal standalone use)
  • Included Components: Distribution module only
  • Application: RV, marine, and off-grid DC electrical systems
  • Unit of Measure: Each
