Medium vertical chest
Medium Vertical Chest

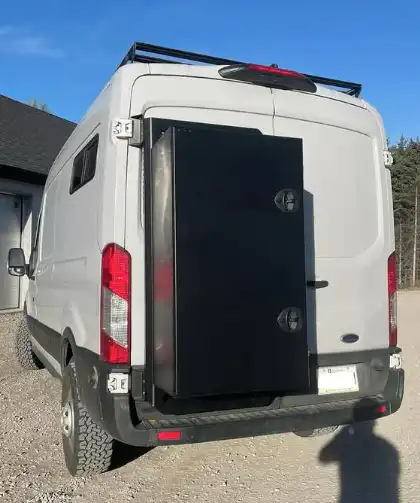

The Medium Vertical Chest offers a high-capacity exterior storage solution designed for van life and overland use. With 11 cubic feet of storage space, it is ideal for transporting BBQ equipment, sports gear, and outdoor accessories. Constructed entirely from welded aluminum, this box delivers a strong yet lightweight structure designed for long-term durability. It features a secure locking system, reinforced sealing, and optional modular interior and exterior configurations for added functionality.
Designed and manufactured in Quebec.
Features
- 11 cubic feet of exterior storage capacity
- Fully welded aluminum construction for maximum durability
- Dual push-to-open toggle locks with key locking system

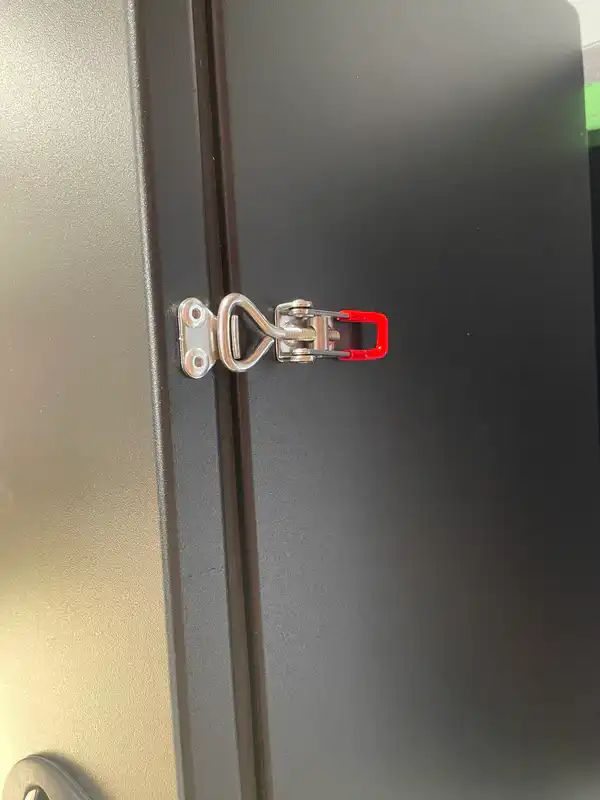

- Dual toggle latches for improved sealing and closure security
- Stainless steel piano-style hinge for long-term reliability
- Optional perforated front door for accessory mounting
- Optional multi-hole interior panels for modular accessory installation

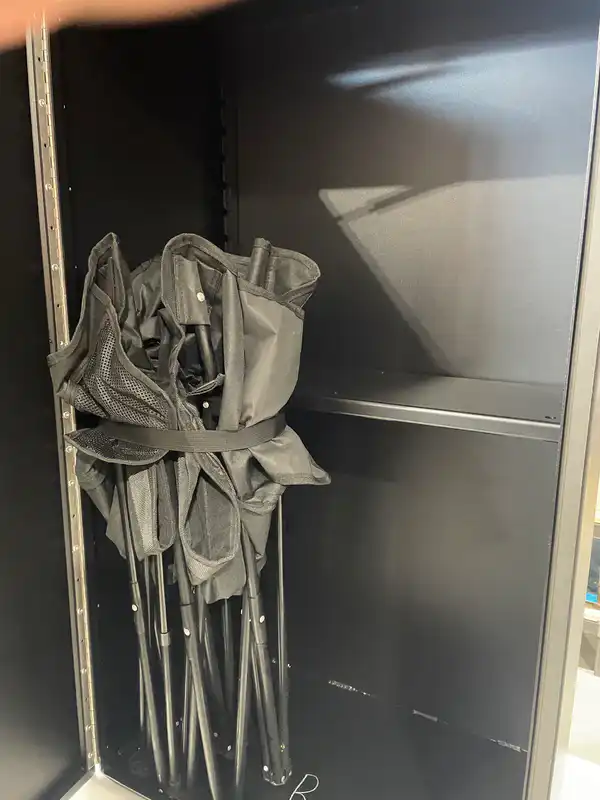

- Internal rail system compatible with adjustable shelving
- Textured black powder-coated finish for corrosion resistance and durability
- Designed for van exterior door mounting systems
Specifications
- Material: 5052 aluminum (0.080’’ thickness)
- Construction: Fully TIG welded
- Exterior Dimensions: 47" x 26" x 16"
- Opening Dimensions: 45" x 24"
- Load Capacity (Chest): 120 lbs
- Total Load Capacity: 200 lbs including rack weight per door
- Hinge: Stainless steel piano hinge
- Hardware: Stainless steel components
- Sealing: 3/8" foam seal
- Finish: Textured black powder coat
- Note: Chest may not be fully waterproof
Compatibility & Installation
- Recommended installation on the left rear driver-side door
- 26" width may obstruct access to the right-side door handle depending on vehicle setup
- Compatible with single tubular brackets, full door systems, or Deluxe bracket systems
- May trigger reverse sensor alerts depending on vehicle configuration
- Requires careful closing when fully loaded to avoid door stress
- Overloading or exterior additions (e.g., fuel cans) will void warranty due to increased leverage on door hinges
- Designed for installation using van-specific Phlö mounting systems
- Production lead time: 6–8 weeks (made-to-order)
- Installation may require coordination depending on location (Quebec City area service noted by manufacturer)
| Optional medium trunk shelf | Without or With |
| Optional medium trunk attachment front | Without or With |
| Optional storage basket | Without or With |
| Shipping & Installation Services | Pick up at menufacturer or I will pick it up or I would like it shipped or I want it installed ( Give us a call or email us! ) |
