Modular Cabinet Bed System for Sprinter & Transit

Modular Cabinet Bed System for Sprinter & Transit

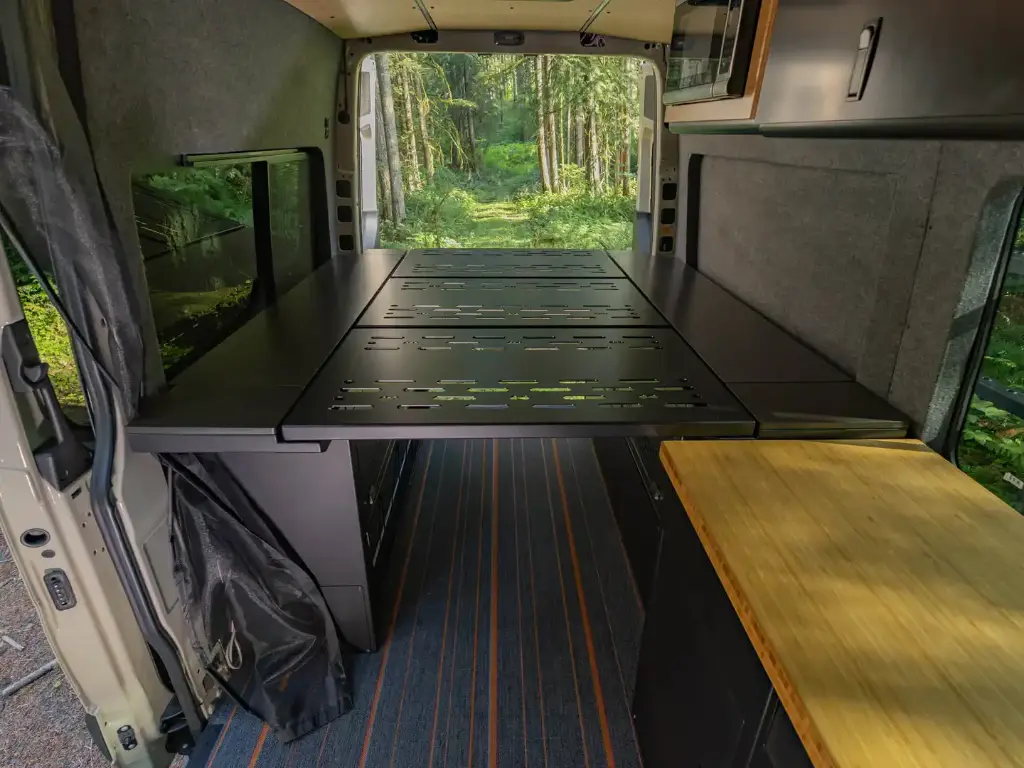

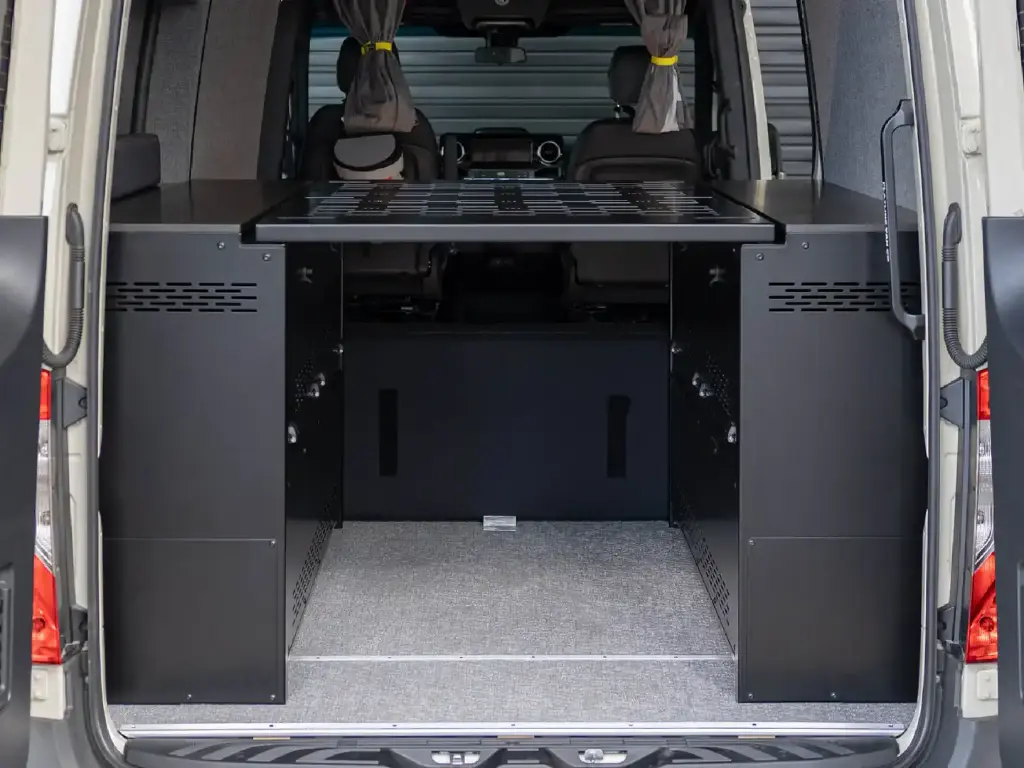

The Flatline Van Co. Modular Cabinet Bed System combines a full-size sleeping platform with integrated storage, water, and electrical system compartments for Mercedes-Benz Sprinter and Ford Transit vans. Available in North/South and East/West configurations, the bed panels lift off without tools to open the rear of the van into a walk-through living and cargo area. When the panels are removed, the included cover panels create a 60" wide × 16" deep countertop on each side, with the North/South configuration extending to 73.43" long.

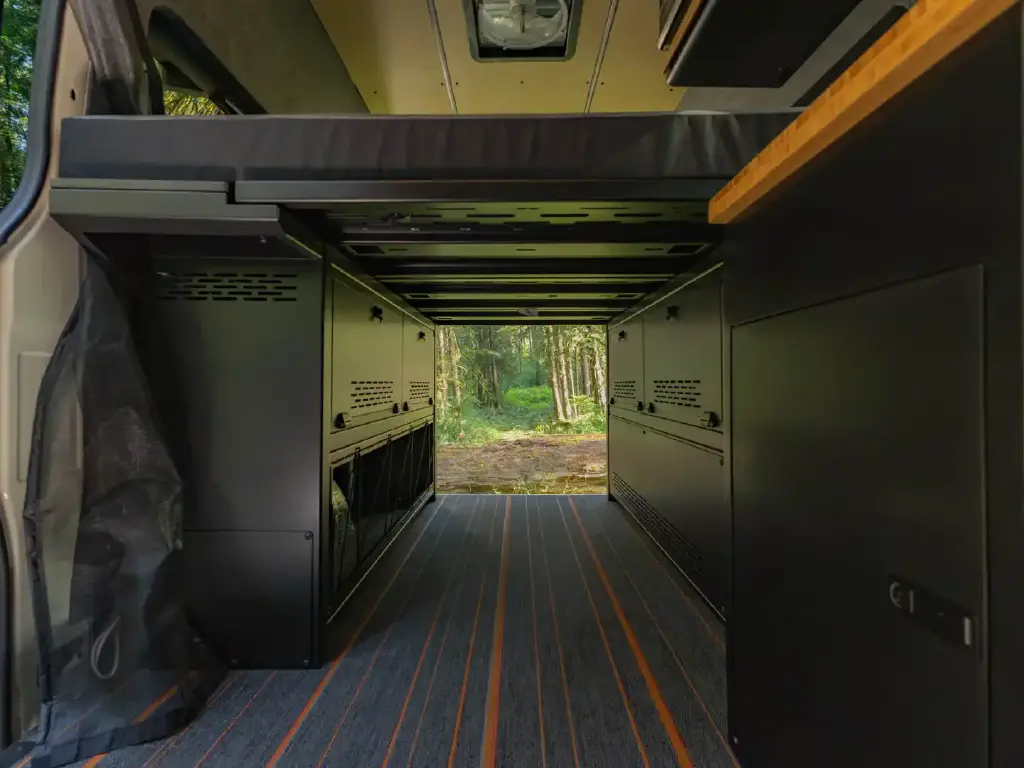

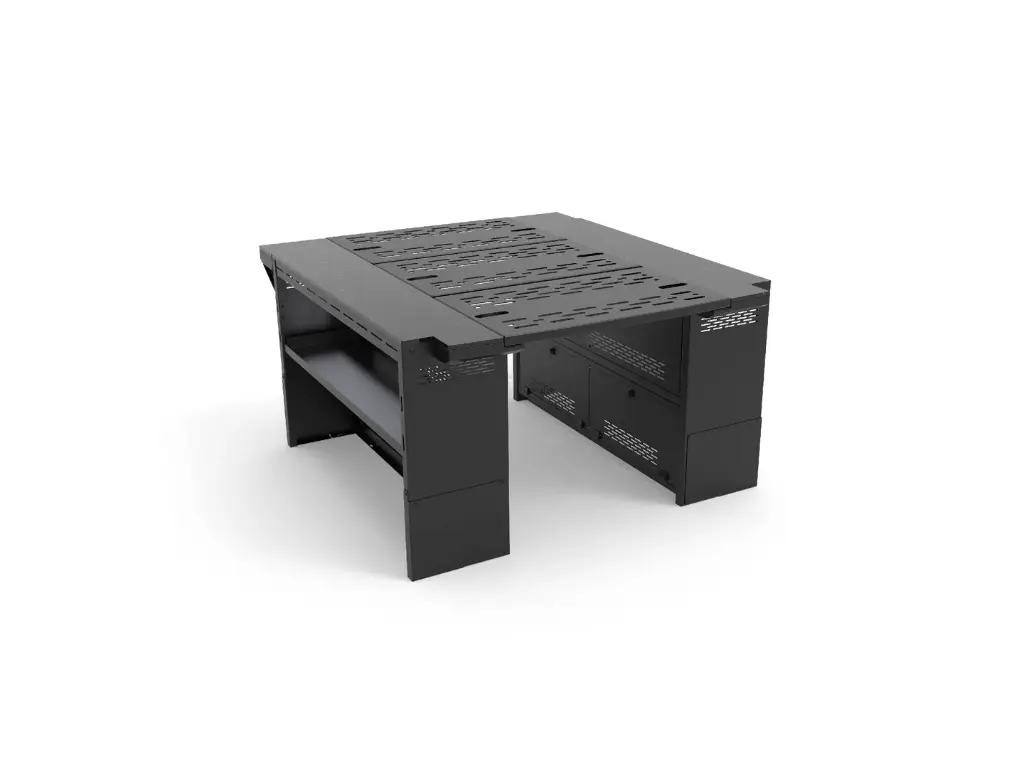

Built from 3 mm aluminum with stainless steel hardware, the system provides a rigid, lightweight platform with adjustable bolt-on mounting hardware. The base cabinets accommodate large water tanks and complete electrical systems while leaving 33"–36" wide × 36" high of open storage beneath the bed. Optional mattresses provide a custom fit, and the system is compatible with the Murphy Bed Ladder and EcoFlow systems.

FEATURES

• Toolless removable bed panels provide full rear walk-through access
• North/South: 66"–69" W × 74" L
• East/West: 60" W × 66"–69" L + flare cavity
• East/West includes 49" W × 5" D flare extensions
• Cover panels create a 60" W × 16" D countertop on each side; North/South extends to 73.43" L
• 33"–36" W × 36" H open storage space beneath the bed
• Cabinets designed for water tanks and complete electrical systems
• Compact-grade laminate countertops
• Adjustable mounting hardware with 1.5" adjustment range
• 3 mm all-aluminum construction with stainless steel hardware
• Black interior powder coat finish and included bungee
• Optional custom-fit mattresses available
• Murphy Bed Ladder compatible with drilling
• EcoFlow compatible

FITMENT & WATER TANK COMPATIBILITY

• 2007+ Mercedes-Benz Sprinter: 1500/2500/3500/3500XD | 144"/170"/170" EXT | Low/High Roof
• 2015+ Ford Transit: 150/250/350 | 148"/148" EXT | Low/Mid/High Roof
• Not compatible with Transit 130"
• Sprinter cabinets fit 20-gallon NW Conversions wheel-well tanks: SP-L-20, SP-R-20, SP-C-20
• Transit cabinets fit 24-gallon NW Conversions wheel-well tanks: TR-L-24, TR-R-24, TR-C-24
• Includes base cabinets, bed panels, mounting hardware, cover panels, and East/West flare extensions
