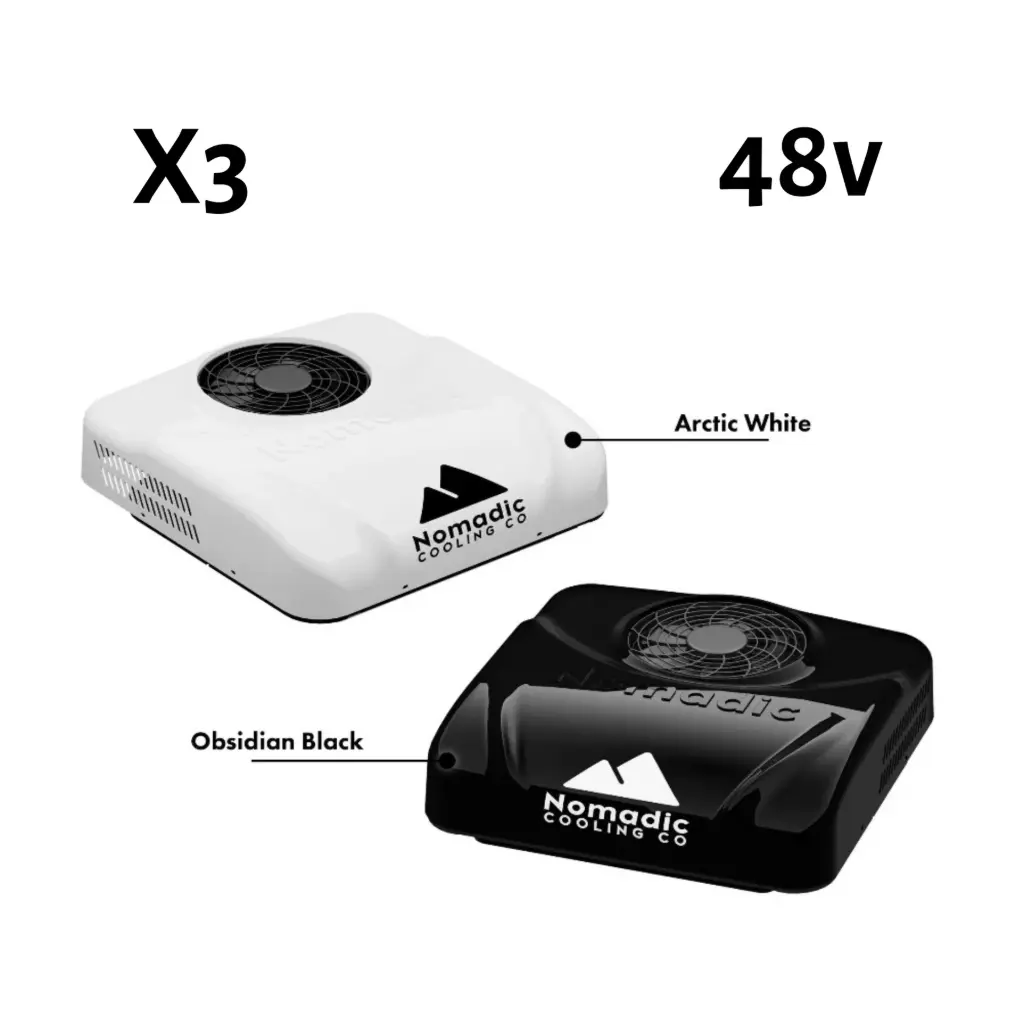

Nomadic Cooling X3 – 48V Low-Profile Rooftop Air Conditioner \ BLACK

Features

• Lightweight and powerful with a sleek, low-profile design

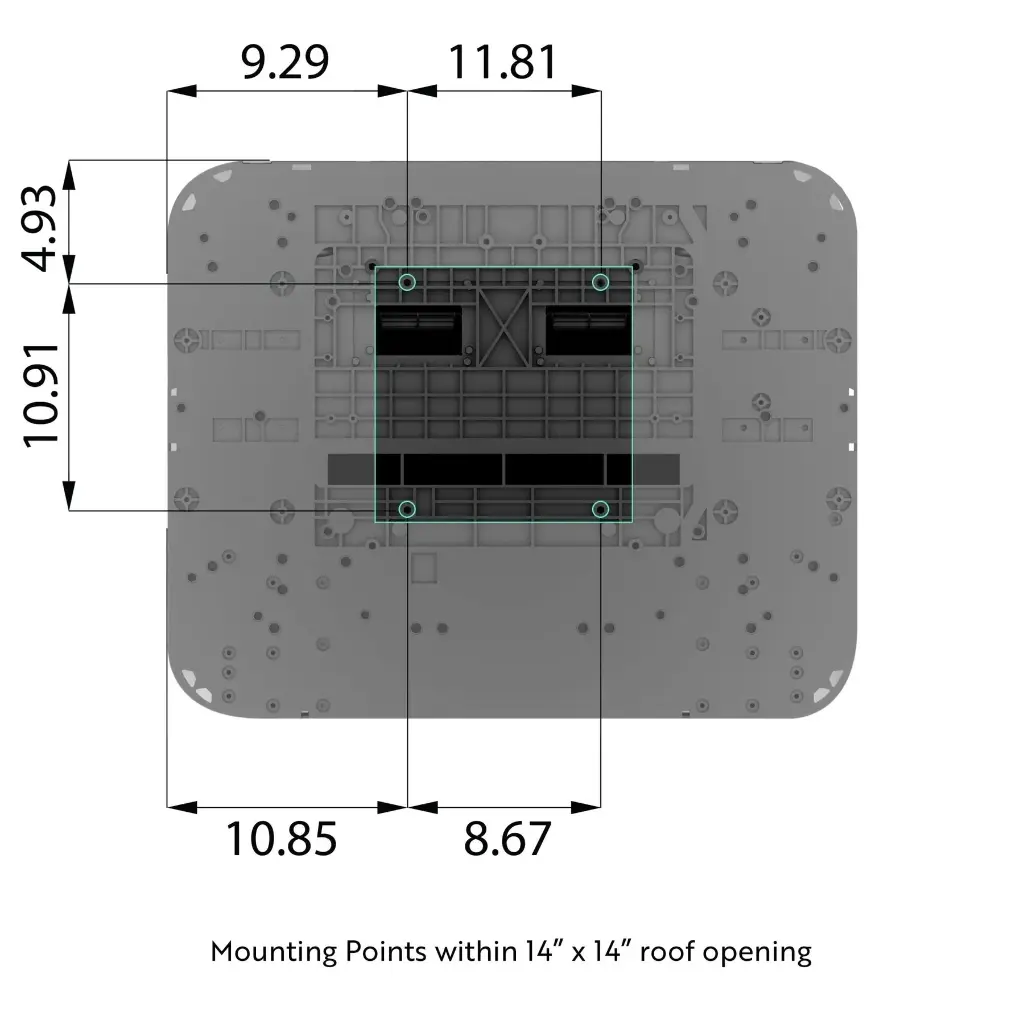

• Fits a standard 14x14" roof opening for easy installation

• Quiet brushless fan with adjustable vents for optimal airflow

• Five operating modes for full user control

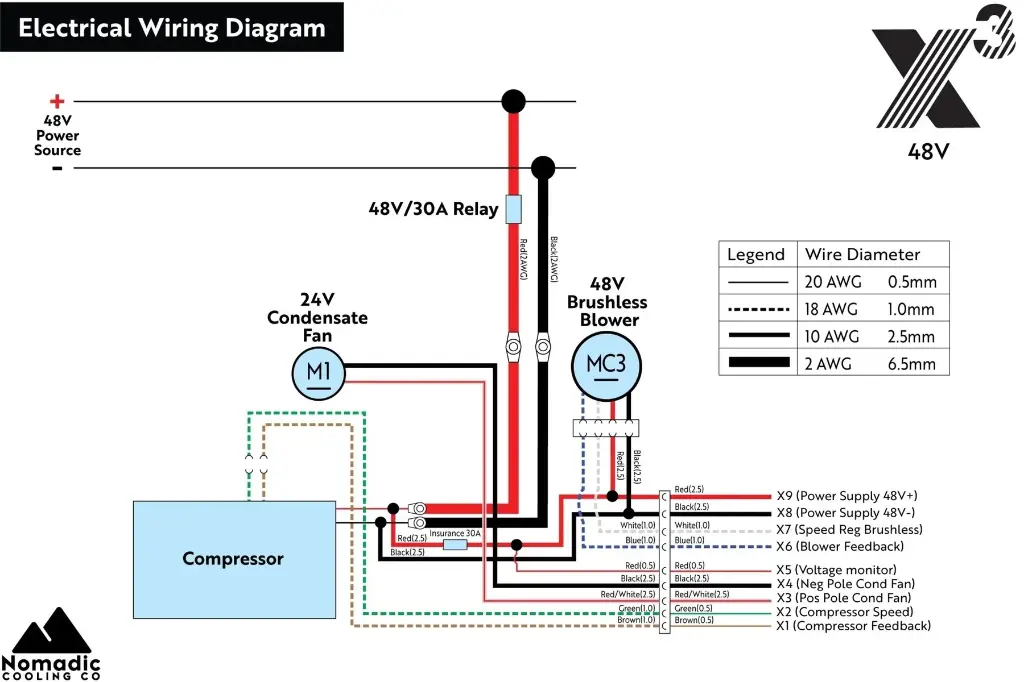

• Operates on a 48V system, offering high efficiency and off-grid reliability

Overview

PRE-SALE ONLY – Expected Delivery: Dec 1, 2023

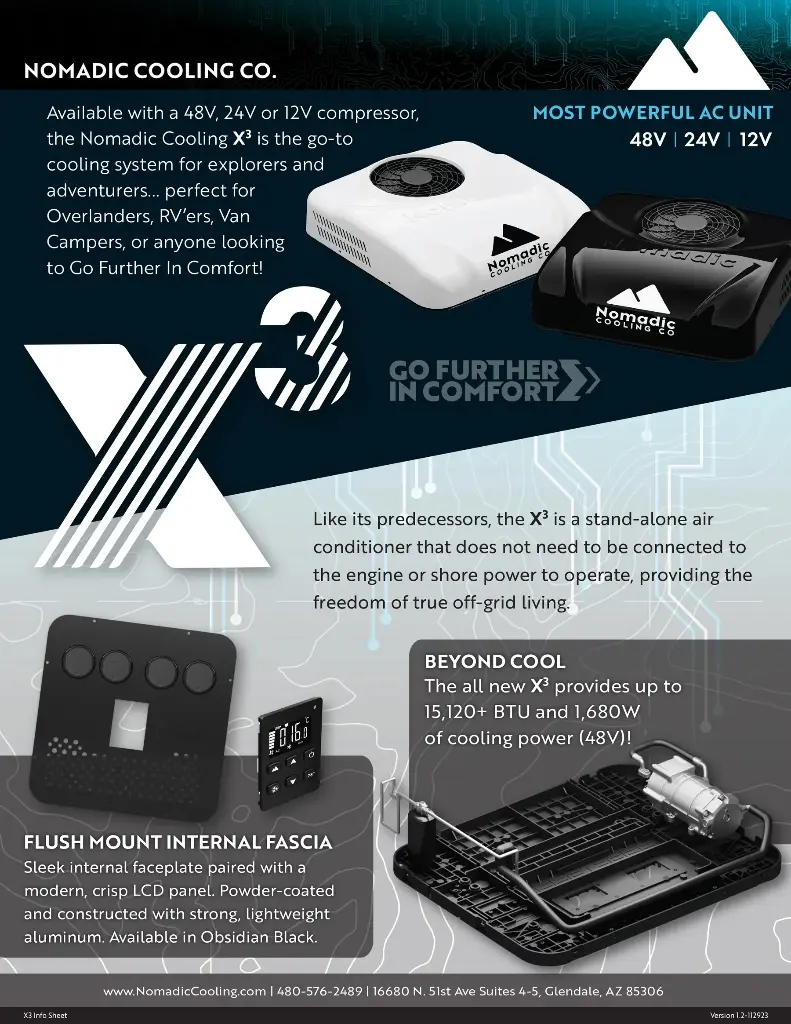

The Nomadic Cooling X3 (48V) is the next-generation rooftop air conditioner for overlanders, RVers, vanlifers, and off-grid travelers who demand comfort and reliability. This stand-alone AC unit does not require connection to the engine or shore power, enabling true mobile cooling freedom.

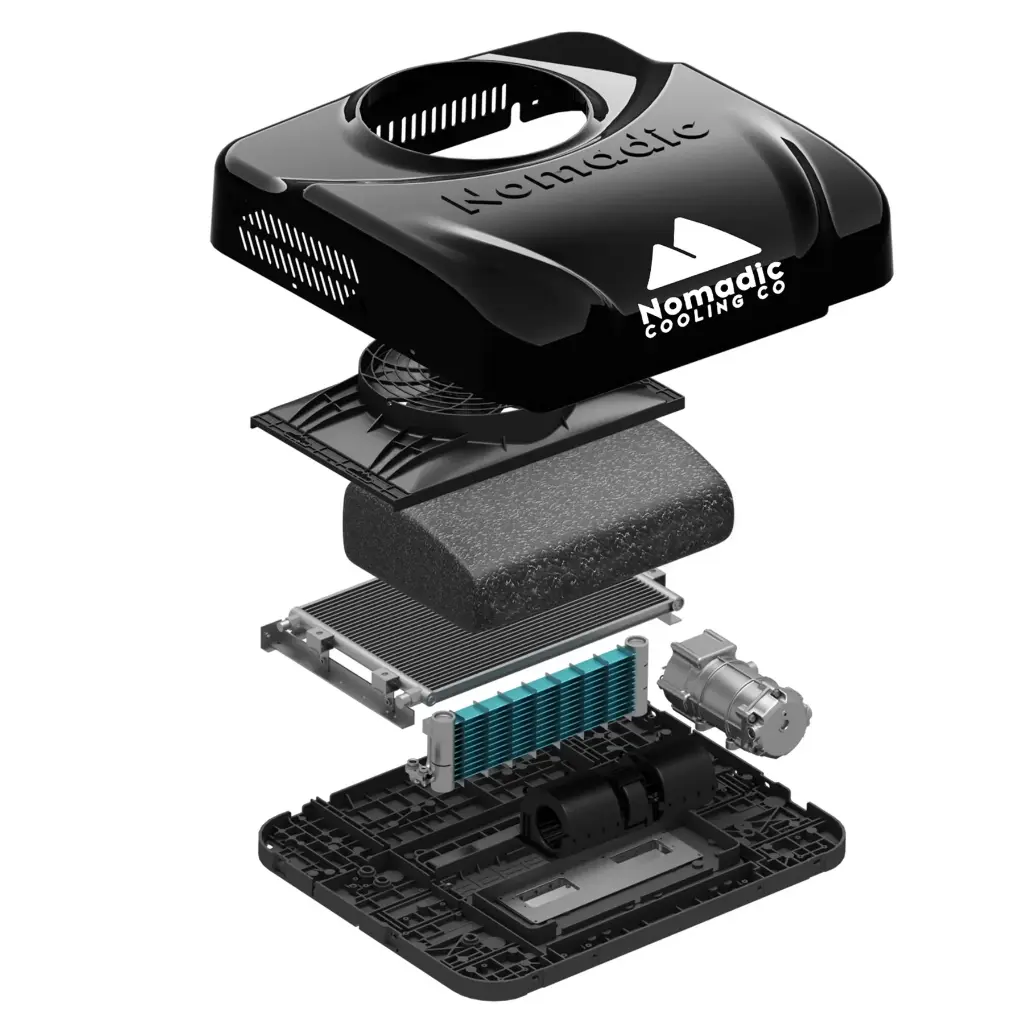

Building on the success of previous Nomadic models, the X3 has been redesigned with a smaller footprint, improved performance, and quieter operation. The brushless internal fan enhances longevity and reduces noise, while the spring-mounted compressor absorbs vibration to extend lifespan.

The X3 includes a modern, high-visibility LCD control panel and an updated MCB system with advanced electrical components. This intelligent board allows for faster compressor adaptation, better error code detection, and improved motor over-current protection, minimizing supervision and downtime.

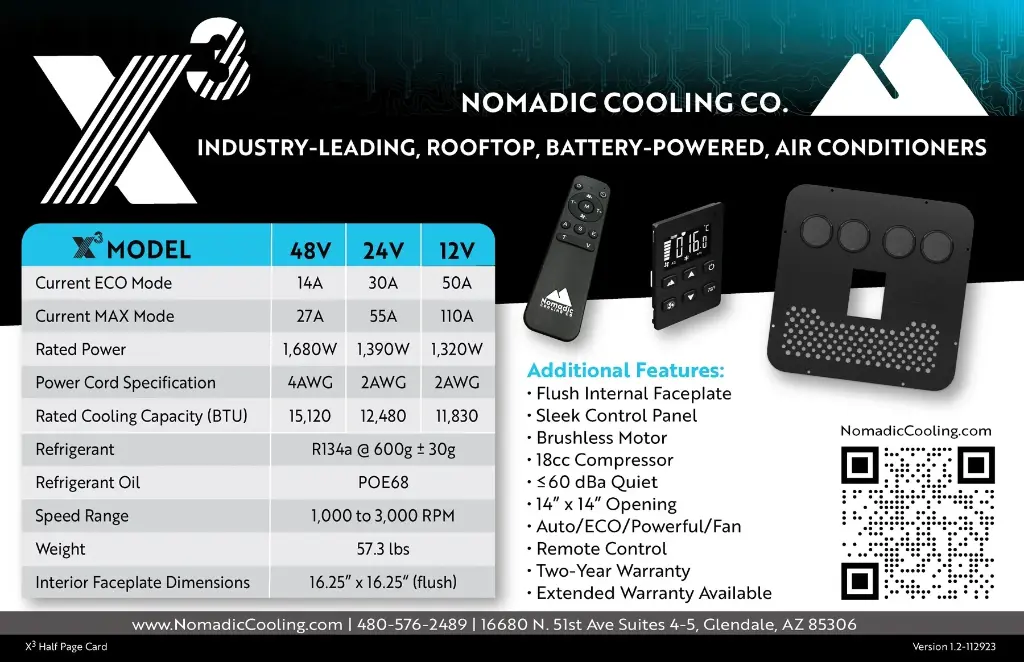

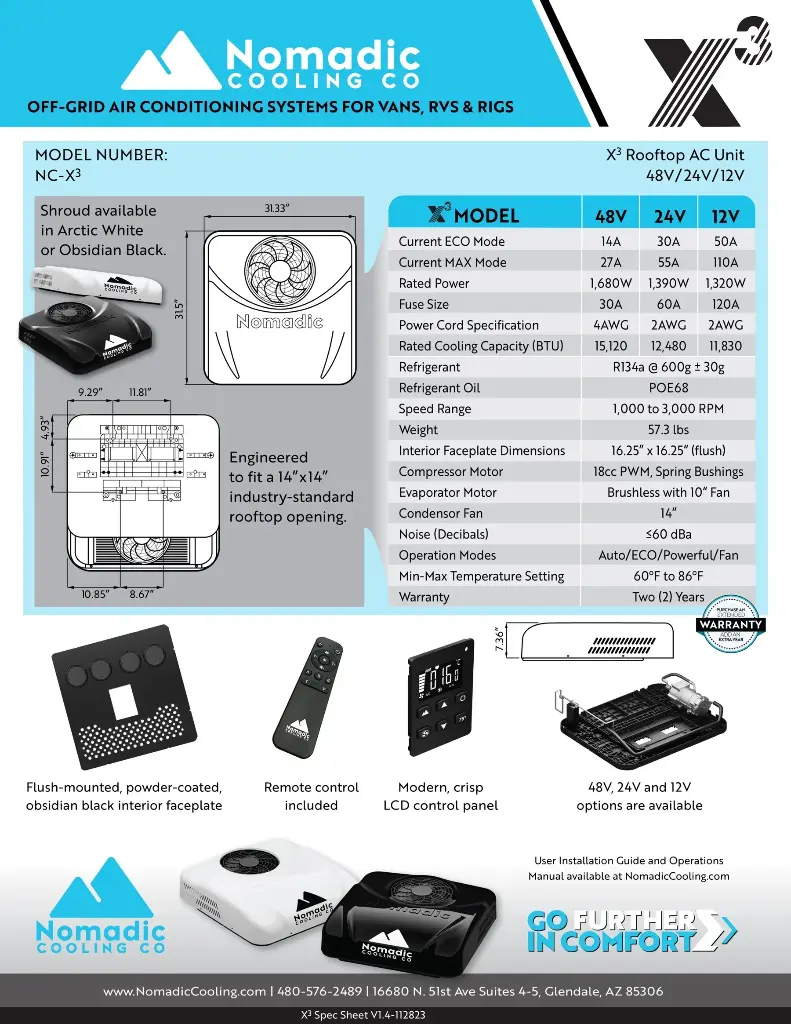

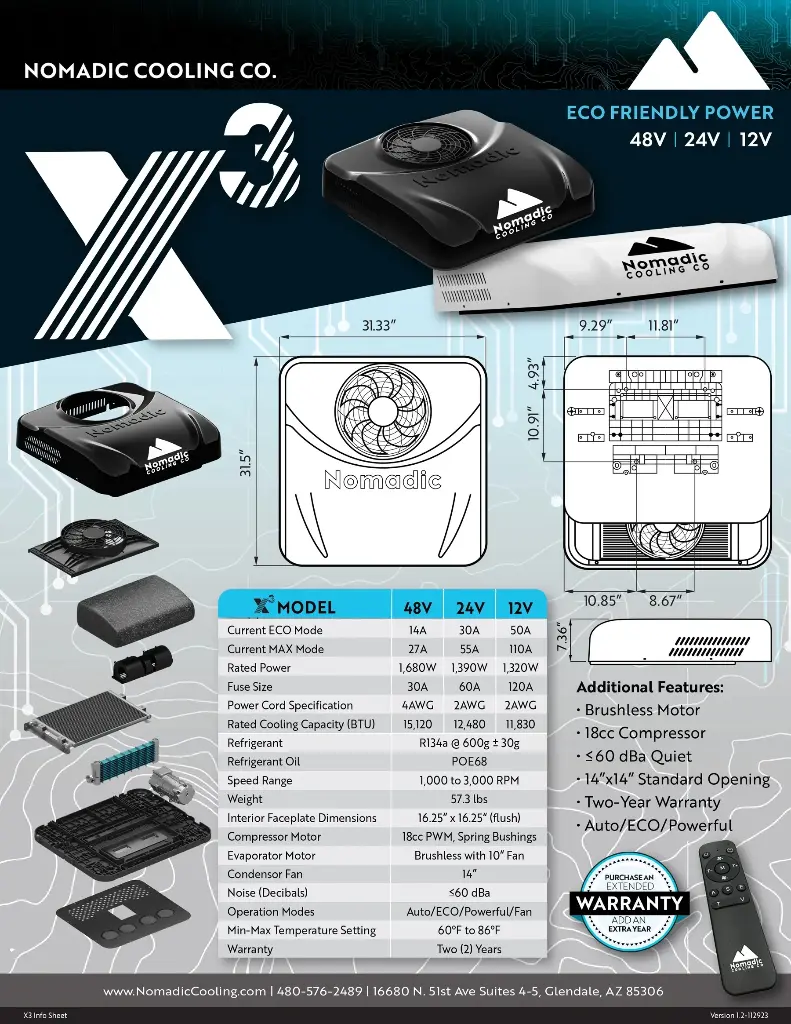

Technical Specifications – 48V Model

• Current (Eco Mode): 14A

• Current (Max Mode): 27A

• Rated Power: 1,680W

• Cooling Capacity: 15,120 BTU (Max)

• Refrigerant: R134a

• Refrigerant Oil: POE68

• Refrigerant Quantity: 600 ±30 g

• Fan Speed Range: 1,000–3,000 RPM

• Unit Weight: 57.3 lbs

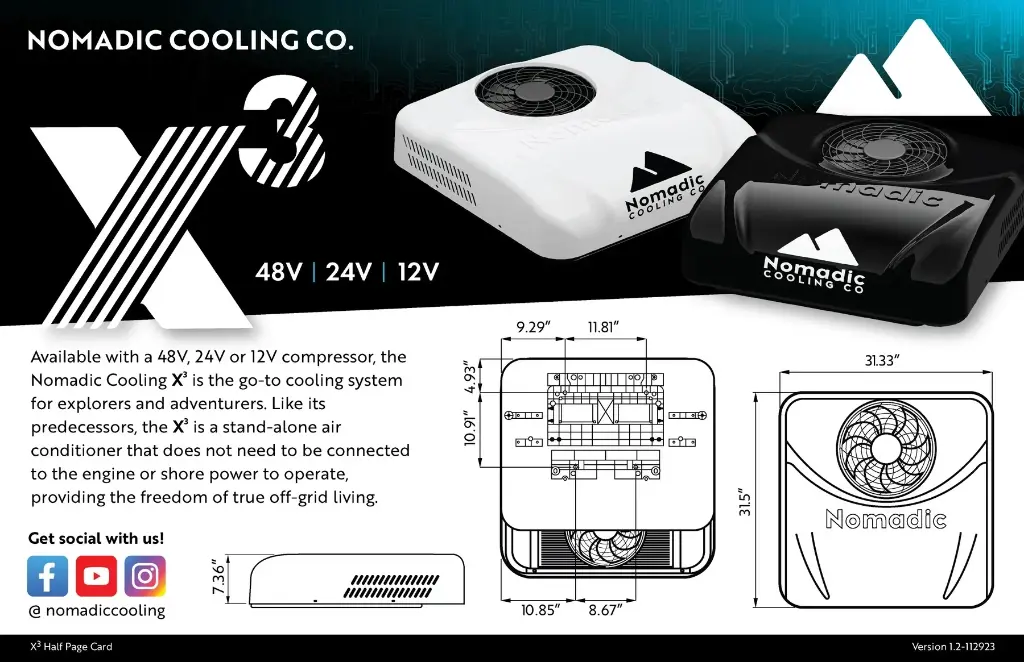

• Outdoor Dimensions (in): 31.33 × 31.5 × 7.36

• Power Cable: 4 AWG

Key Features & Upgrades

• Fits industry-standard 14x14" roof openings

• Extremely compact form factor

• Brushless internal fans for quiet, long-lasting performance

• Spring bushing-mounted compressor to reduce vibration

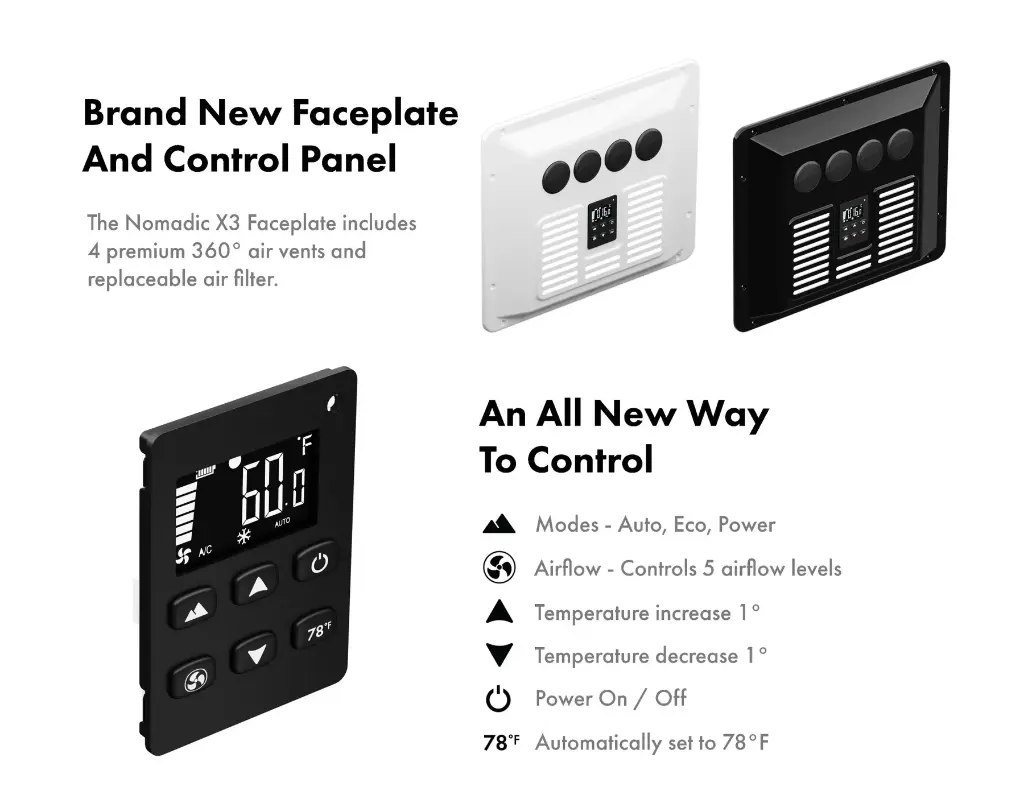

• Modern LCD control panel for improved visibility and intelligent operation

• Stainless steel hardware and powder-coated interior components for durability

• Rubber dampening feet to reduce vibration

• Sight glass for troubleshooting while on the road
