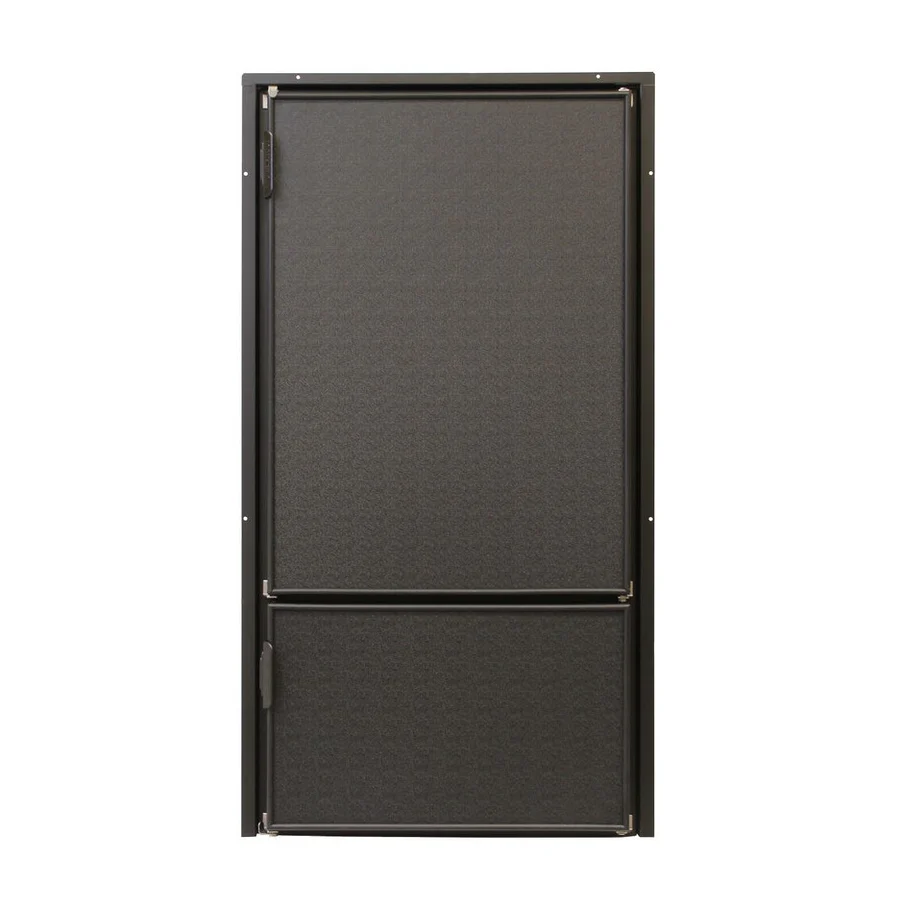

NovaKool RFU8320 – 7.3 cu. ft. Compact Fridge with 1.6 cu. ft. Freezer (12/24V DC & 120V AC Compatible)

Designed for boats, RVs, and off-grid installations, the NovaKool RFU8320 offers a spacious 7.3 cu. ft. fridge and 1.6 cu. ft. freezer in a compact, lightweight design. Weighing only 43 lbs, it’s energy-efficient, easy to install, and operates reliably with DC (12/24V) or AC+DC (12/24/120V) power systems.

Key Features & Benefits:

•  Dual Power Options – Runs on 12V, 24V DC or AC (120V) with optional AC+DC models
•  Spacious Interior – 7.3 cu. ft. refrigerator + 1.6 cu. ft. freezer with space for tall bottles
•  Energy Efficient – Low power draw (5.2A @12V / 2.6A @24V) helps conserve battery life
•  Maintenance-Free – Static condenser means no moving parts or fans to fail
•  Positive Seal & Reversible Door – Magnetic gaskets and latch system for secure closure
•  Durable Build – Stainless steel fasteners, powder-coated wire shelves, and CFC-free insulation
•  Front Loading with Interior Light – Easy access and visibility
•  Customizable Look – Replaceable door panels to match your interior

 Specifications

• Refrigerator Volume: 7.3 cu. ft. (206 liters)
• Freezer Volume: 1.6 cu. ft. (45 liters)
• Weight: 43 lbs
• Cut-Out Dimensions: 45 1/2" H x 23 1/4" W x 21 3/4" D
• Flange Dimensions: 46" H x 24 3/4" W
• Panel Door (Upper): 29 5/8" H x 21 3/8" W
• Panel Door (Lower): 13 1/4" H x 21 3/8" W
• Additional Depth (door clearance): 1.5"
• Voltage Options: DC (12V/24V) and AC+DC (12/24/120V)
• Running Amps: 5.2A @12V / 2.6A @24V
• Refrigerant: Environmentally safe R134a
• Warranty: 2 years

Shipping & Installation Notes

• Allow 1-week lead time for processing and shipping.
• Installation requires an additional 1.5" clearance from the back of the frame for door swing.

*NOTE: The amperage listed is while the unit is running. To determine 24hr consumption calculate the run time for 24hrs and multiply this by the listed amperage. Listed amperage will change with ambient temperature and unit door openings.

Installation Note: The door is an additional 1.5in, 38mm from the back of the frame.
