NW Conversions 20 Gallon Driver Side Transit Undercarriage Water Tank (TR-UC-20)

The TR-UC-20 is a 20-gallon undercarriage water tank designed to mount on the driver side of Ford Transit vans, next to the fuel tank. It can be used for fresh or grey water storage while preserving interior space for your campervan conversion.

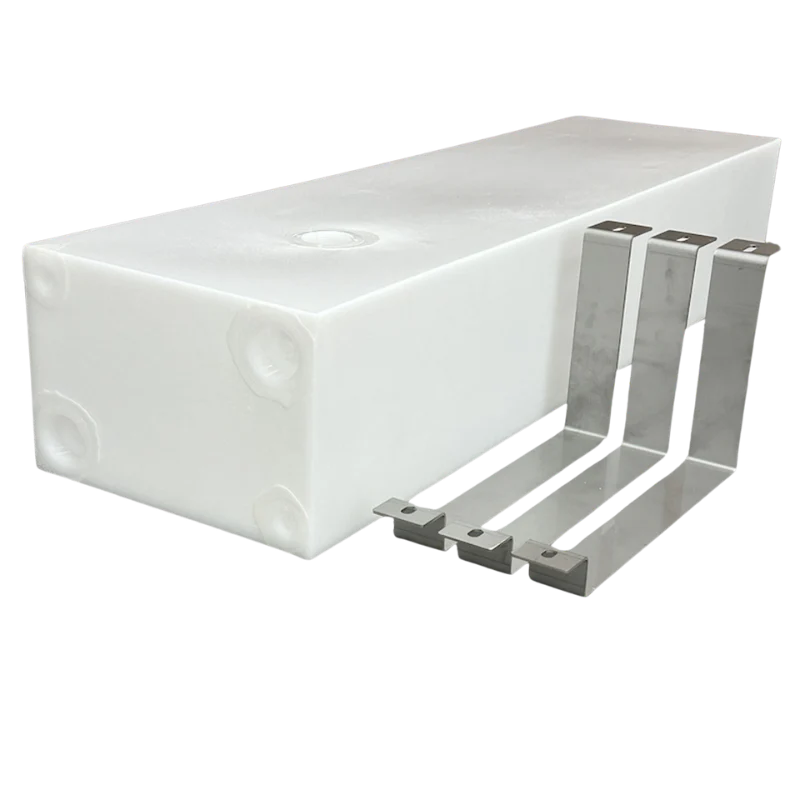

Made from BPA-free, food-grade polyethylene, the tank is IAPMO TS-4 certified and designed to operate without pressure, requiring proper venting. Three stainless steel mounting brackets, 3/8" stainless steel hardware, and rivnuts are included.

FEATURES & SPECIFICATIONS

• 20 US gallons — suitable for fresh or grey water
• BPA-free, food-grade polyethylene
• IAPMO TS-4 certified
• Designed for non-pressurized use; tank must be vented

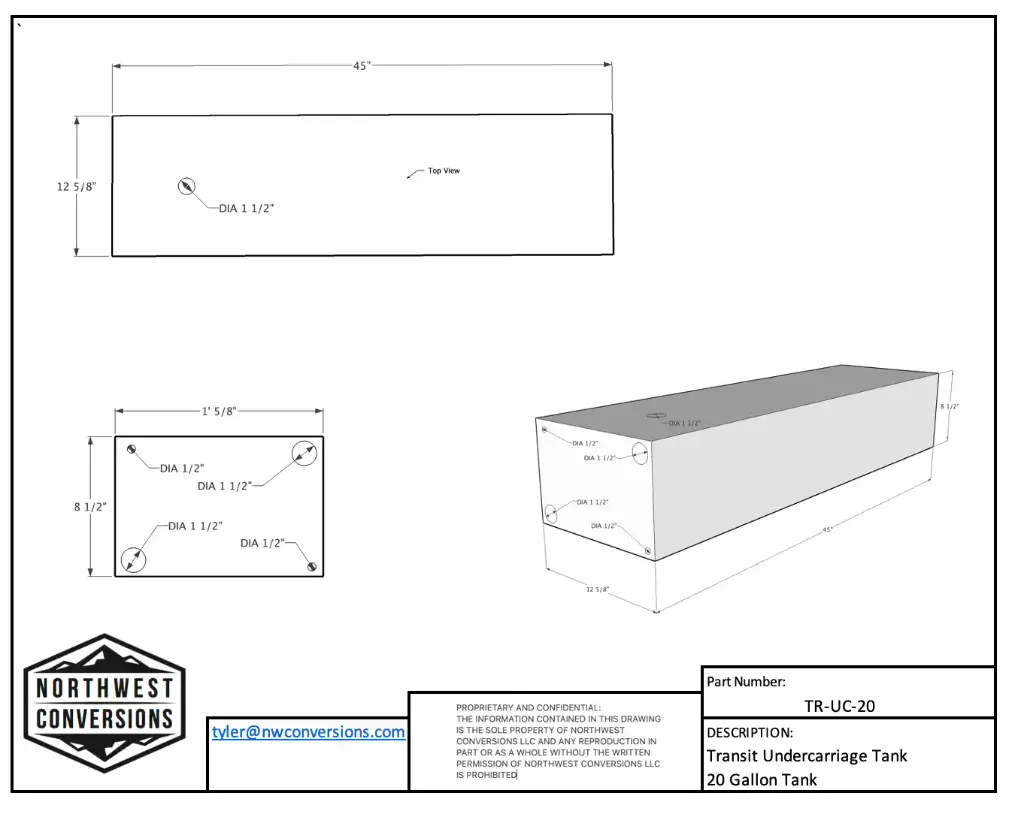

• Overall dimensions: 45" L × 8.5" H × 12.75" W
• Weight: 23 lb
• Ports: 2 × 1.5" NPT + 2 × 1/2" NPT on the end, 1 × 1.5" NPT on top
• Made in the USA

COMPATIBILITY & INSTALLATION

• Designed for 2007+ Ford Transit vans

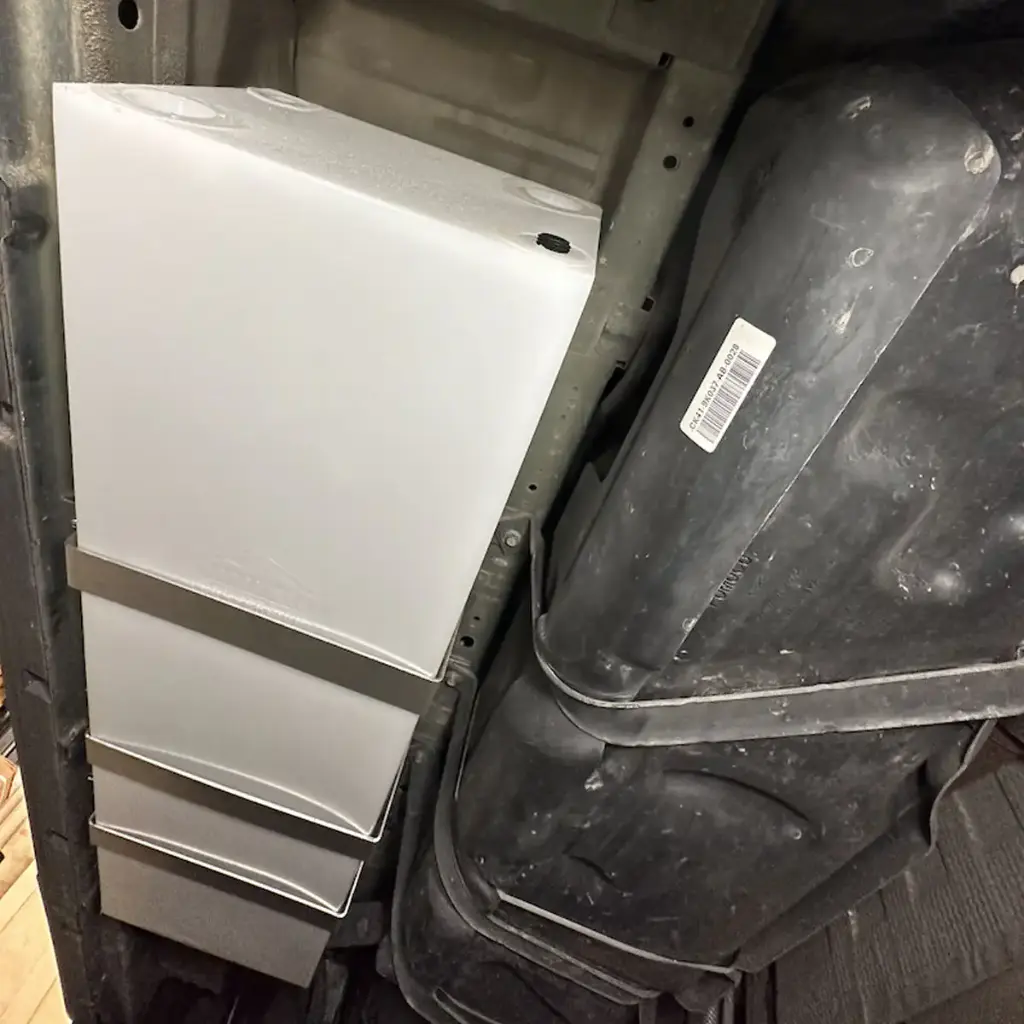

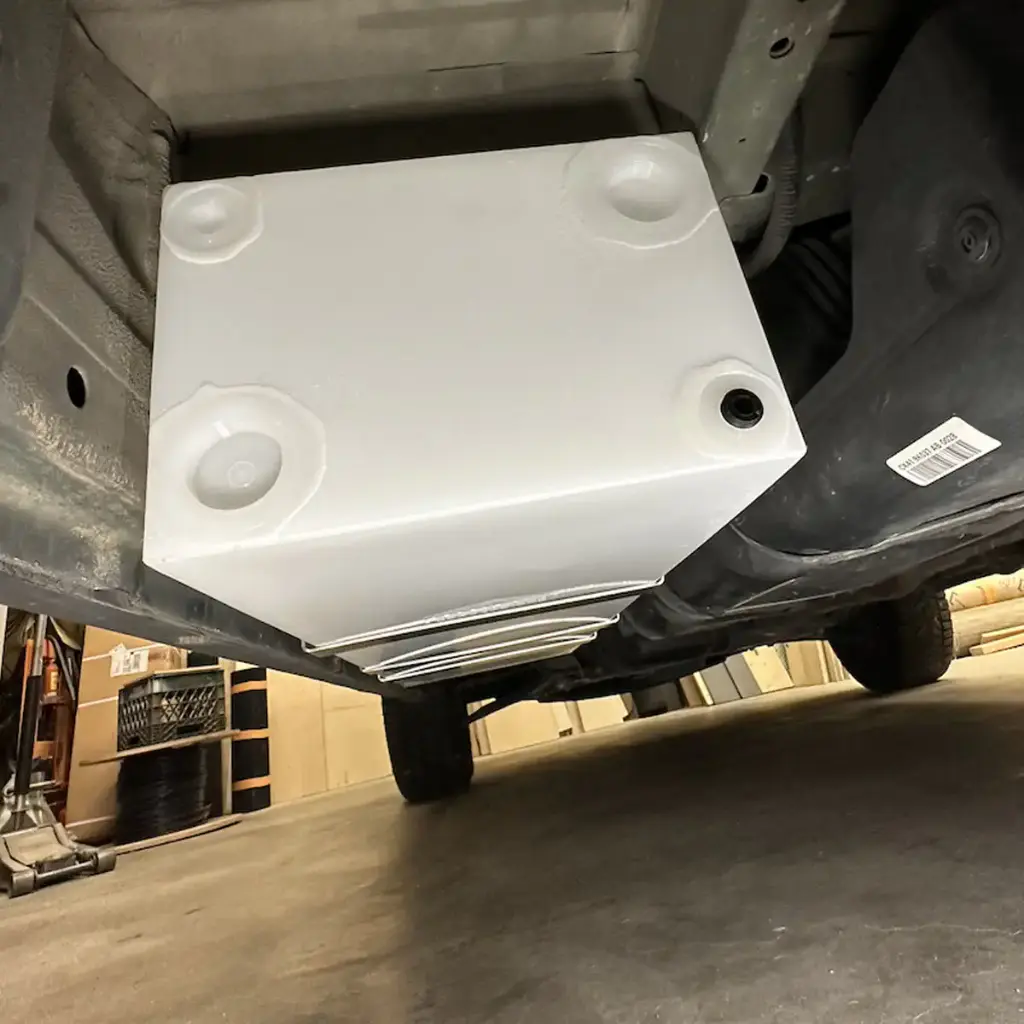

• Mounts on the driver side next to the fuel tank
• Does NOT fit Transit 130" wheelbase
• May not fit vans equipped with a rear passenger heater or A/C unit due to heater lines in the mounting area; the TR-UC-16 passenger-side tank may be a better option
• Includes 3 stainless steel laser-cut brackets, 3/8" hardware, and 3/8" rivnuts
• Installation requires drilling three 17/32" holes and installing the supplied rivnuts
• Rivnut tool required; not included
• One side of the brackets uses the existing fuel-tank strap mounting location
