OPTI-RATE STRIKER 4X4 2" LIFT KIT (COMPLETE) - SPRINTER 2500 4X4, 2015-2018 - Van Compass

Special order: Item cannot be exchanged or refunded.

Please allow 2-4 weeks to process and ship order.

Transform your 2015–2018 Mercedes Sprinter 2500 4x4 into an off-road powerhouse with the Van Compass OPTI-RATE STRIKER 4X4 2" LIFT KIT (COMPLETE) - SPRINTER 2500 4X4, 2015-2018(7035-OPTI). Designed specifically for Sprinter vans with a single rear wheel configuration, this kit offers the clearance and customization you need for serious overland travel—especially if you're hauling gear, upgrades, or a full interior build.

Built on years of engineering expertise, the Opti-Rate Striker lift kit gives you the ability to fine-tune your van’s ride height and spring rate, making it ideal for heavy builds in the 9,000–10,000 lb+ range. Whether you're running a fully loaded Storyteller, Revel, or a 170 EXT with rear-mounted accessories, this lift system is up to the task.

The front features a combination of machined and welded spacers to drop the subframe, keeping vital suspension components like CV joints, tie rods, and control arms within factory geometry limits.

At the rear, the Opti-Rate leaf spring pack is matched with a 2" lift block, longer sway bar links, shock relocation brackets, and bump stop spacers—ensuring optimal articulation and preventing over-compression or over-extension in demanding terrain.

With the proper wheel offset and minimal fender trimming, you can install up to 35 x 12.50 tires, greatly enhancing ground clearance and traction.

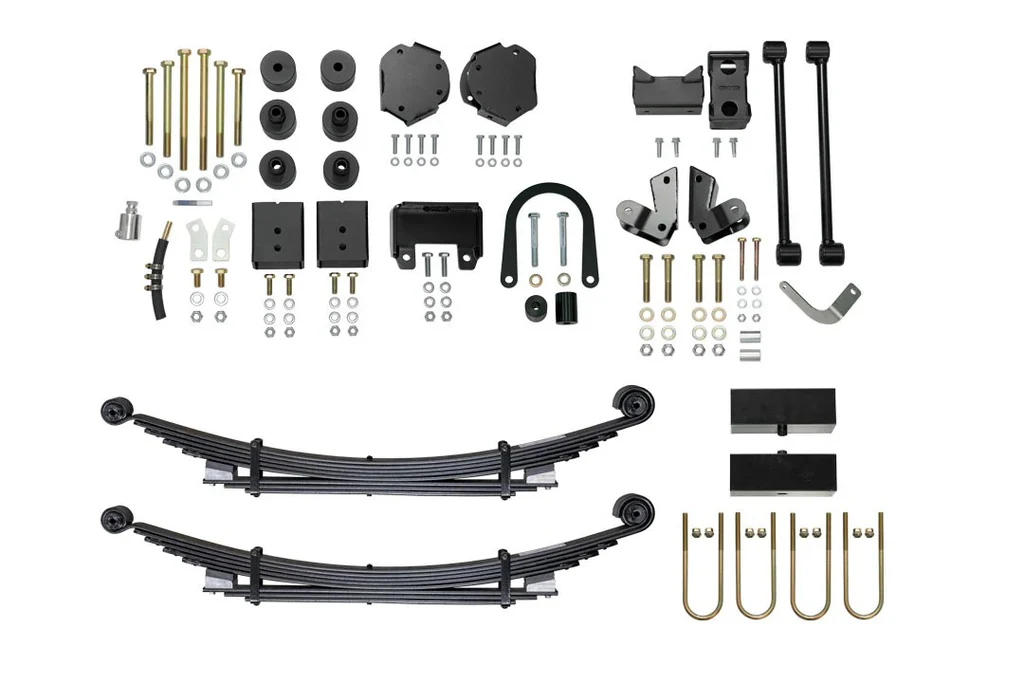

• Front 2" strut spacers

• Front 2" subframe drop spacers

• Engine & transmission mount 2" lift spacers

• CNC-machined 2" steering shaft extension

• Low-pressure power steering hose extension

• Front brake line relocation brackets

• Opti-Rate rear leaf spring pack (adjustable spring rate and ride height)

• 2" rear lift block

• Extended rear sway bar links

• Rear lower shock relocation brackets

• Rear bump stop drop brackets

• Wind assist/headlight leveling sensor bracket

• Complete hardware kit and step-by-step installation instructions

• Proudly made in the USA by Van Compass

• 2015-2018 NCV3 4x4 Striker 2" Front Kit Installation Instructions
• 2019-2022 VS30 4x4 Striker 2" Front Kit Installation Instructions
• Striker 2" Rear Kit with Opti-Rate Springs Installation Instructions
