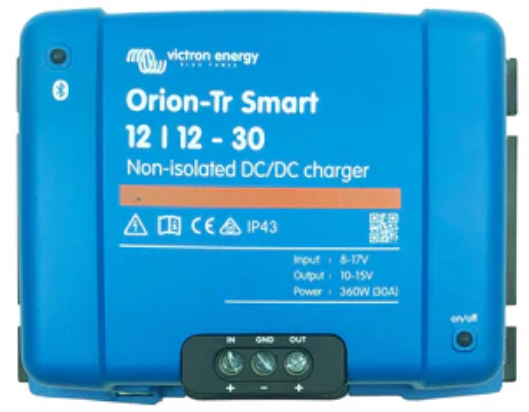

Victron Energy Orion-Tr Smart 12/12-30A (360W) Non-isolated DC-DC charger

https://canadarv.com/web/image/product.template/3940/image_1920?unique=5775543

Technical Specifications

  • Input Voltage Range: Compatible with 12V systems

  • Output Voltage: 12V DC

  • Output Current: 30A (360W max)

  • Charge Algorithm: Adaptive 3-stage (bulk, absorption, float) or fixed output

  • Bluetooth Monitoring: Yes

  • Remote On/Off: Yes

  • Protection: Short-circuit proof, high-temperature protection

  • IP Rating: IP43

  • Installation: Screw terminals, downward orientation recommended

  • Parallel Capable: Yes

296.30 $ 296.3 CAD 296.30 $

Contact us for quote

This combination does not exist.

Contact Us

Terms and Conditions
Return within 30 days for most orders
Free delivery on most orders

Orion-Tr Smart 12/12-30A (360W) Non-Isolated DC-DC Charger

The Orion-Tr Smart DC-DC charger is a professional-grade, adaptive 3-stage DC to DC charger with built-in Bluetooth, designed for dual battery systems in vehicles and boats. It ensures your service battery is charged efficiently while protecting the starter battery, even in setups with smart alternators or long cable runs that may cause voltage drops.

Key Features

  • Non-Isolated DC-DC Charging – Functions as a DC-DC battery charger or a constant voltage power supply.

  • Adaptive 3-Stage Charge Algorithm – Bulk → Absorption → Float, optimized for both lead-acid and lithium batteries.

  • Smart Alternator Compatibility – Detects when the engine is running to optimize charging and prevent overloading.

  • Bluetooth Smart Enabled – Monitor, configure, and update the charger via any Bluetooth-enabled device using the VictronConnect App.

  • Fully Programmable – Configure battery type, charge algorithm, and absorption time; alternatively, choose a fixed output voltage.

  • Remote On/Off Capability – Connect a remote switch or relay contact for convenient control.

  • Paralleling Capability – Multiple units can be connected in parallel to increase output current, supporting unlimited units.

  • Short-Circuit Proof & Temperature Protected – Built-in protection reduces output current at high ambient temperatures.

  • Durable Construction – IP43 protection when installed correctly, screw terminals for easy installation, no special tools required.

Ideal Applications

  • Dual battery systems in RVs, campers, and boats

  • Systems with Euro 5 or Euro 6 smart alternators

  • Long cable runs or setups prone to voltage drop

  • Charging and maintaining both lead-acid and lithium service batteries

Why Choose the Orion-Tr Smart DC-DC Charger?

This DC-DC charger is built for reliability and precision. Whether you’re on the road in an RV or out on the water in a boat, it ensures your service battery is fully charged and protected, even in challenging conditions. The Bluetooth-enabled monitoring and programming, combined with adaptive charging and remote control capability, make it one of the most flexible and professional DC-DC chargers available.
